3 Core 2.5mm SYL-Flex Galvanised Steel Braid Screened PUR Cable 300 500V Clear

Photo is representative

3 Core 2.5mm SYL-Flex Galvanised Steel Braid Screened PUR Cable 300 500V Clear

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3X2.5SYL
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £2.16

Gross price

£2.59

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

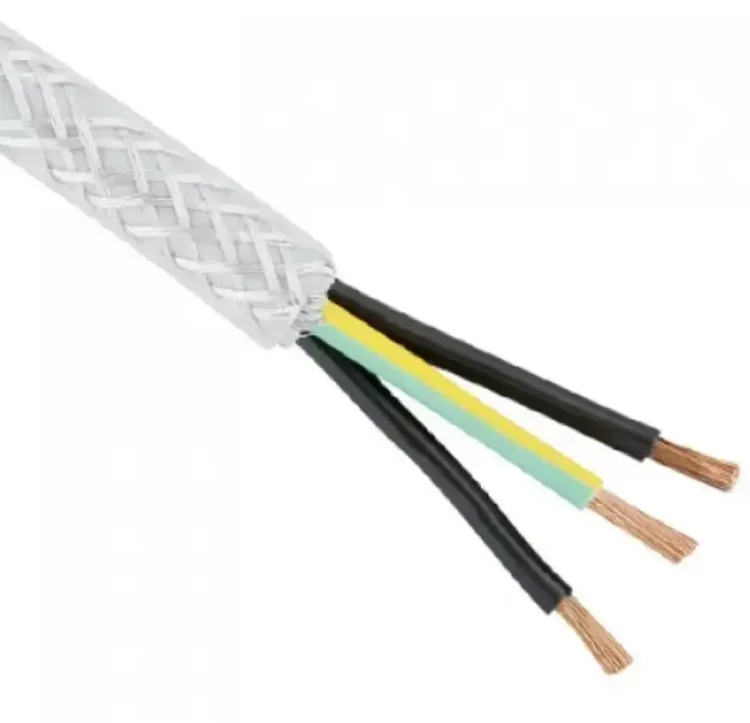

SYL-Flex control cable, 3 core 2.5mm². Galvanised steel wire braid over PVC bedding, transparent PVC outer sheath. Suited for interconnects between fixed and mobile equipment — conveyors, assembly lines, machine tools. For outdoor use, protect from direct sunlight.

  • 26A current capacity (30°C, in air)
  • Operating temp: static -20°C to +80°C, flexing -5°C to +70°C
  • OD 9.90mm — gland size 20/16mm

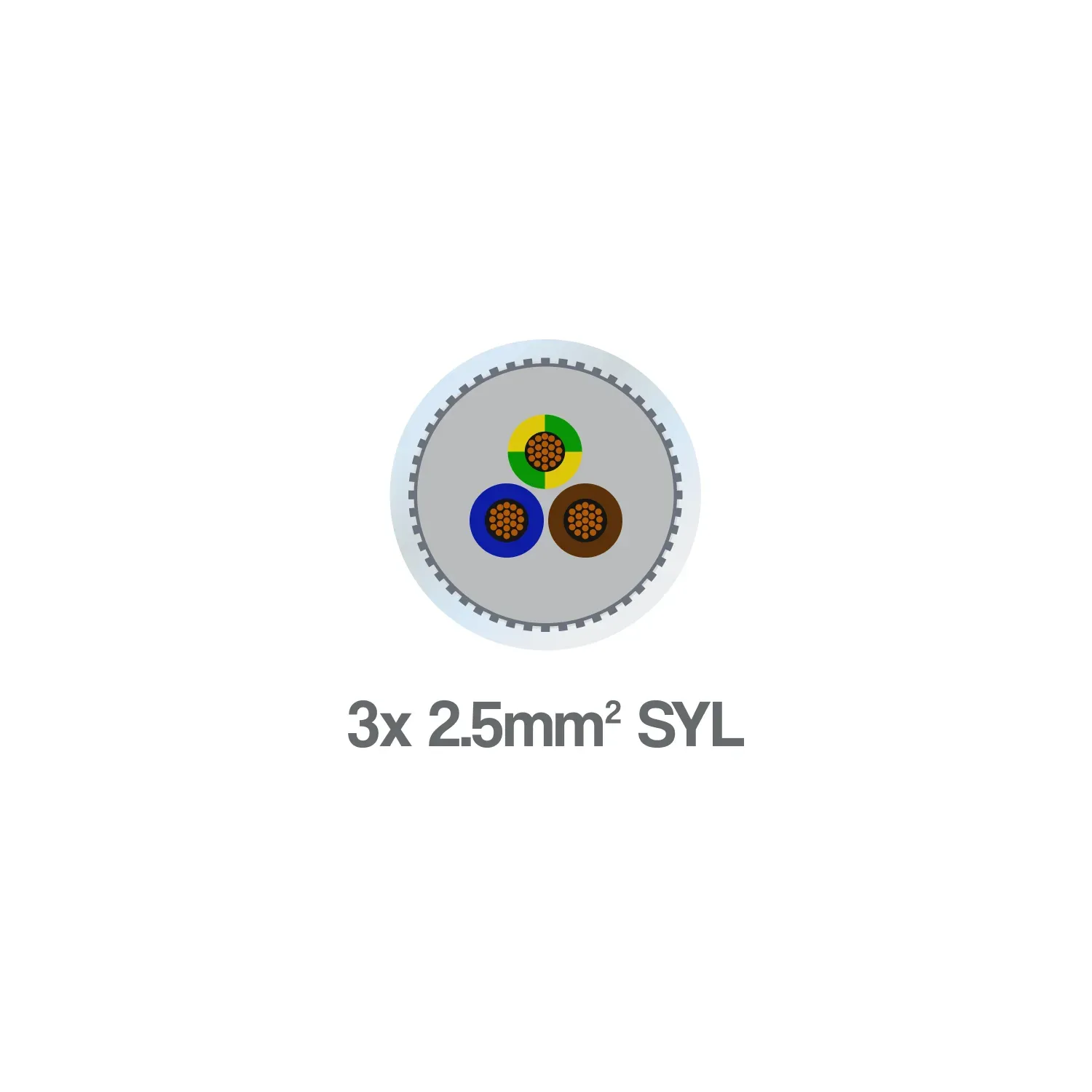

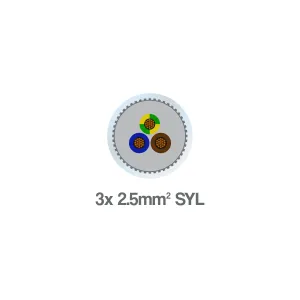

  • Core ID: Brown, Blue, Green/Yellow
Specifications

Cores

3

Conductor CSA

2.5mm²

Conductor Type

Plain Annealed Stranded Copper

Stranding

50/0.25mm

Insulation

PVC

Bedding

PVC

Armouring

Galvanised Steel Wire Braid

Sheath

Transparent PVC

Voltage Rating

300/500V

Current Capacity (30°C, in air)

26A

Max Conductor Resistance at 20°C

7.98 Ω/km

Voltage Drop (Single Phase AC)

18 mV/A/m

Voltage Drop (Three Phase AC)

15 mV/A/m

Outside Diameter

9.90mm

Weight

190 kg/km

Gland Size

20/16mm

Operating Temp (Static)

-20°C to +80°C

Operating Temp (Flexing)

-5°C to +70°C

Core Identification

Brown, Blue, Green/Yellow

Standard

BS EN 50525-2-11 / VDE 0250
