SYL-Flex 5 Core 2.5mm2 300 500V Steel Braid Screened Control Cable Clear PVC Sheath

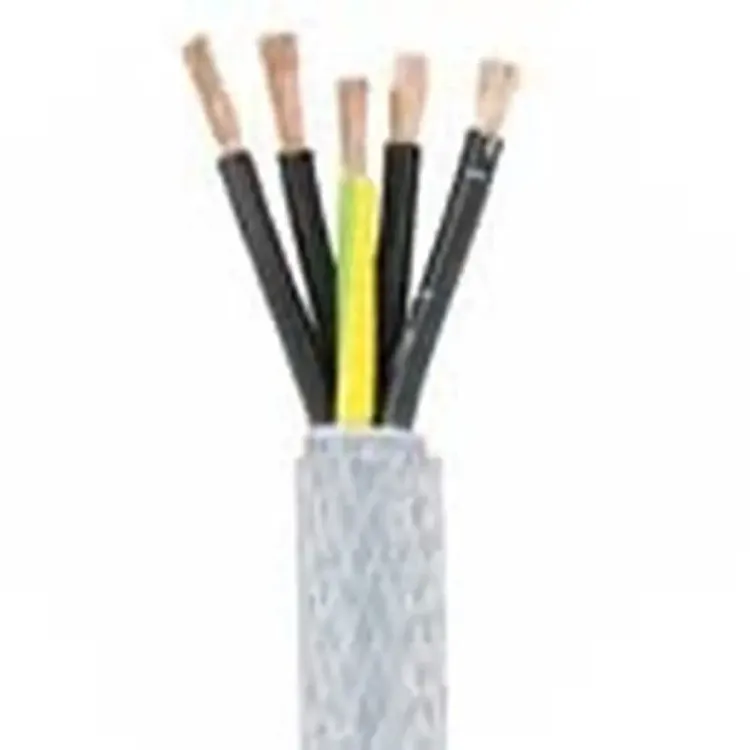

Photo is representative

SYL-Flex 5 Core 2.5mm2 300 500V Steel Braid Screened Control Cable Clear PVC Sheath

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 5X2.5SYL
GTIN —
Stock status: In stock

priced per meter

Net price: £3.20

Gross price

£3.84

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

5-core 2.5mm² SYL-Flex with galvanised steel wire braid armour and transparent PVC sheath. Designed for interconnection between fixed and mobile equipment — conveyors, assembly lines, machine tools.

Steel braid provides mechanical protection where flexing and movement are factors. Suitable for indoor and outdoor use when shielded from direct sunlight.

  • 300/500V rated, 26A current capacity (30°C in air)
  • Operating temp: -20°C to +80°C static, -5°C to +70°C flexing
  • Plain annealed stranded copper conductors, 50⁄0.25mm stranding
  • Gland size: 20S mm
  • Standard: BS EN 50525-2-11 / VDE 0250
Specifications

Cores

5

CSA

2.5mm²

Voltage Rating

300/500V

Current Capacity

26A (30°C, in air)

Conductor Type

Plain Annealed Stranded Copper

Stranding

50/0.25mm

Insulation

PVC

Bedding

PVC

Armouring

Galvanised Steel Wire Braid

Sheath

Transparent PVC

Outside Diameter

11.50mm

Gland Size

20S mm

Operating Temp (Static)

-20°C to +80°C

Operating Temp (Flexing)

-5°C to +70°C

Max Conductor Resistance at 20°C

7.98 Ω/km

Voltage Drop (Single Phase AC)

18 mV/A/m

Voltage Drop (Three Phase AC)

15 mV/A/m

Weight

247 kg/km

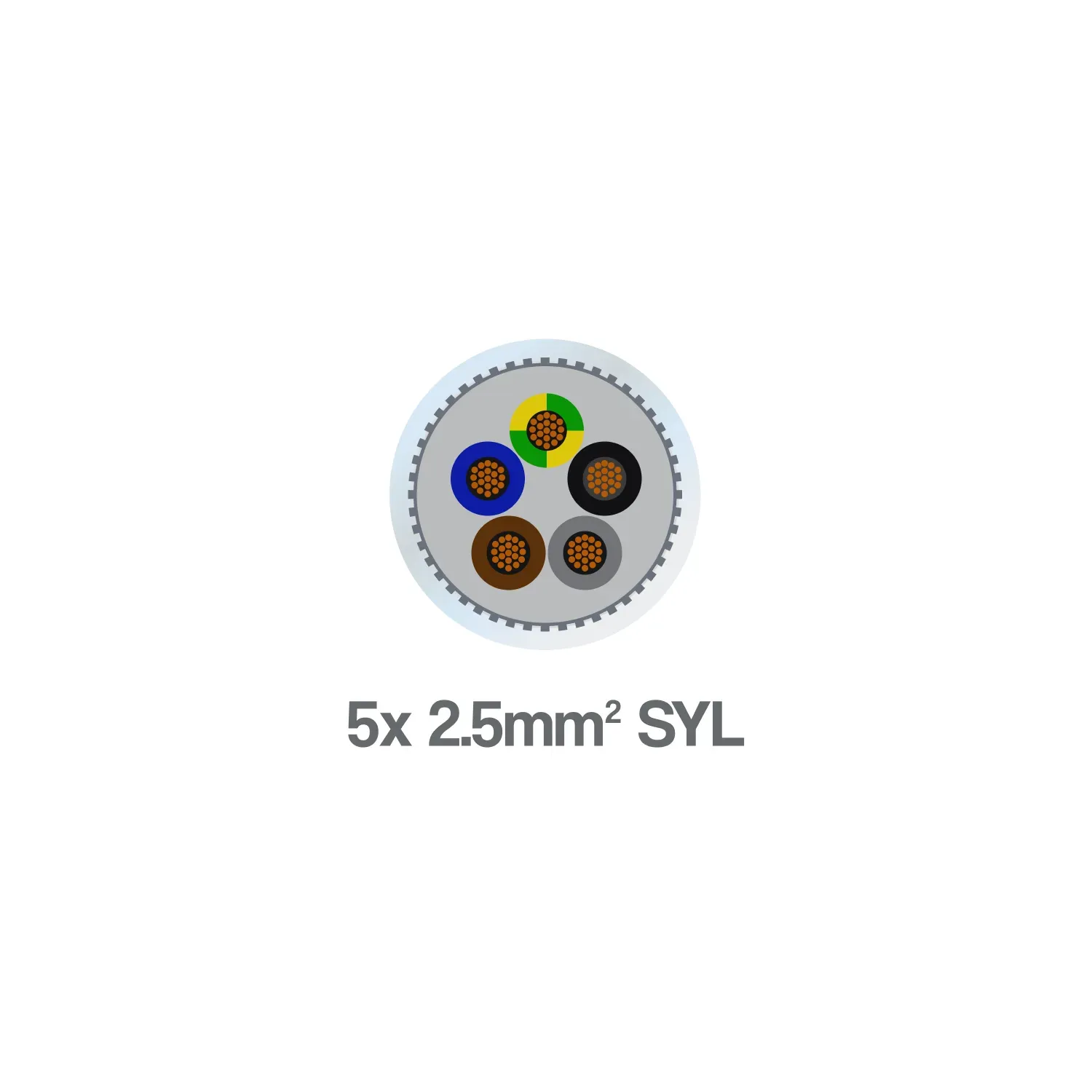

Core Identification

Brown, Blue, Black, Grey, Green/Yellow

Standard

BS EN 50525-2-11 / VDE 0250
