4 Core 2.5mm² SYL-Flex Galvanised Steel Braid Clear PVC Sheath 300 500V Control Cable

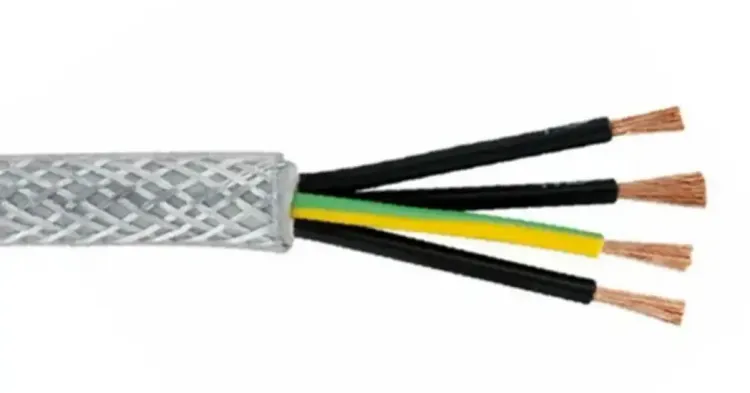

Photo is representative

4 Core 2.5mm² SYL-Flex Galvanised Steel Braid Clear PVC Sheath 300 500V Control Cable

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 4X2.5SYL
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £3.08

Gross price

£3.70

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

SYL-Flex 4 core 2.5mm² flexible control cable with galvanised steel wire braid armour and clear PVC outer sheath. Designed for interconnecting fixed and mobile equipment — conveyors, assembly lines, production lines and machine tool applications. Suitable for indoor and outdoor use when protected from direct sunlight.

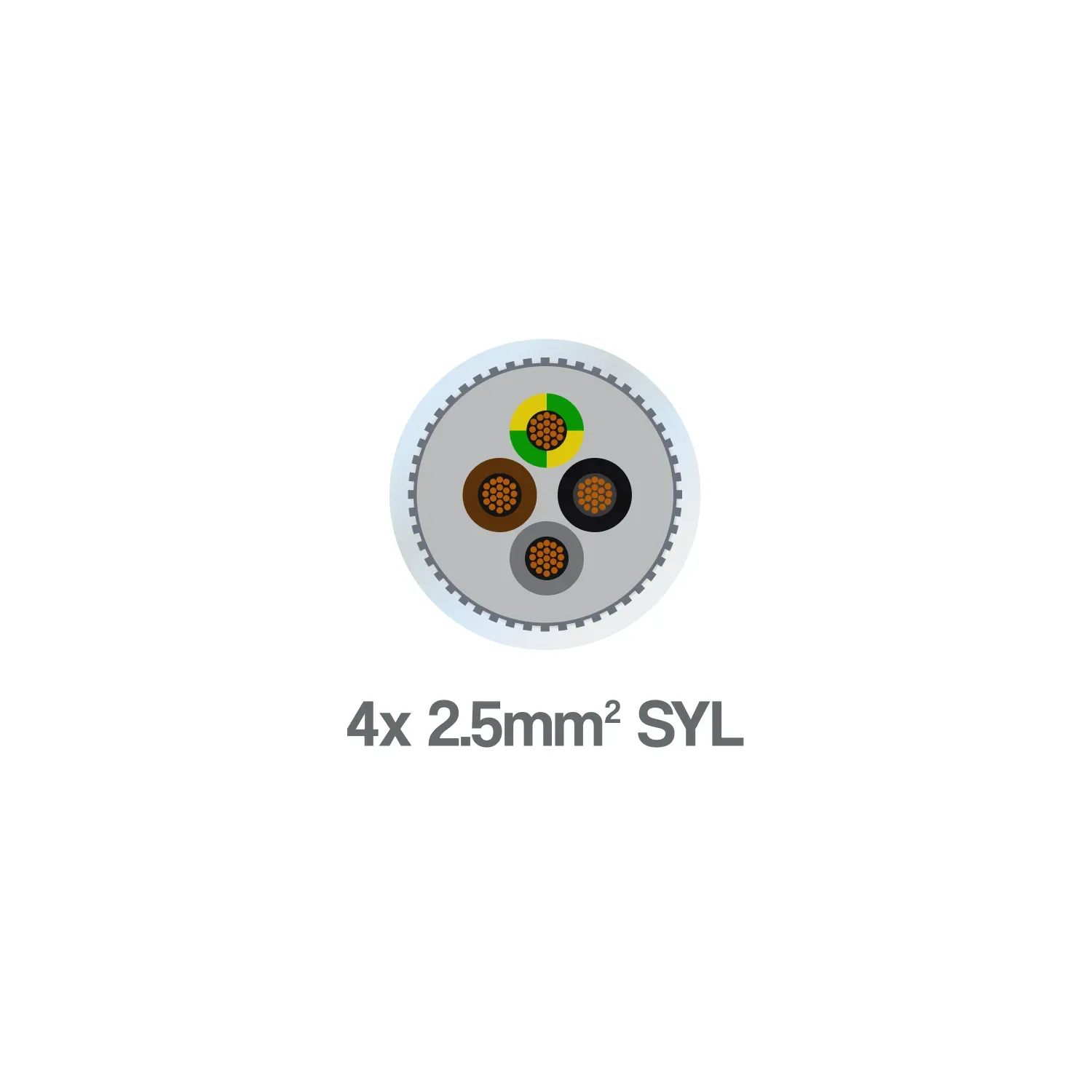

Cores identified Brown, Black, Grey and Green/Yellow. Transparent sheath lets you inspect the braid without stripping.

  • 2.5mm² plain annealed stranded Cu, 50⁄0.25mm stranding
  • 26A current capacity (30°C, in air)
  • Static: -20°C to +80°C / Flexing: -5°C to +70°C
  • 10.80mm OD — use 20/16mm gland
Specifications

Number of Cores

4

Conductor Size

2.5mm²

Conductor Type

Plain Annealed Stranded Copper

Stranding

50/0.25mm

Insulation

PVC

Bedding

PVC

Armouring

Galvanised Steel Wire Braid

Sheath

Transparent PVC

Voltage Rating

300/500V

Current Capacity (30°C, in air)

26A

Max Conductor Resistance at 20°C

7.98 Ω/km

Voltage Drop (Single Phase AC)

18 mV/A/m

Voltage Drop (Three Phase AC)

15 mV/A/m

Outside Diameter

10.80mm

Weight

240 kg/km

Gland Size

20/16mm

Operating Temperature (Static)

-20°C to +80°C

Operating Temperature (Flexing)

-5°C to +70°C

Core Identification

Brown, Black, Grey, Green/Yellow

Standard

BS EN 50525-2-11 / VDE 0250
