YY 3 Core 2.5mm LSZH Flexible Control Cable Grey 300 500V

Photo is representative

YY 3 Core 2.5mm LSZH Flexible Control Cable Grey 300 500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 325YY
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £2.39

Gross price

£2.86

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

3 core 2.5mm² YY control cable with LSZH insulation and outer sheath. For measuring, control and signal circuits on conveyors, assembly lines and production equipment. The LSZH sheath limits smoke and toxic fume emission in fire conditions — suited to occupied or confined areas.

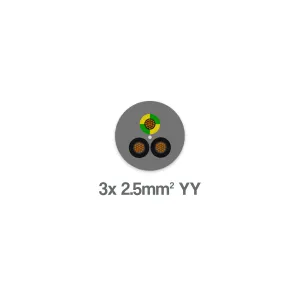

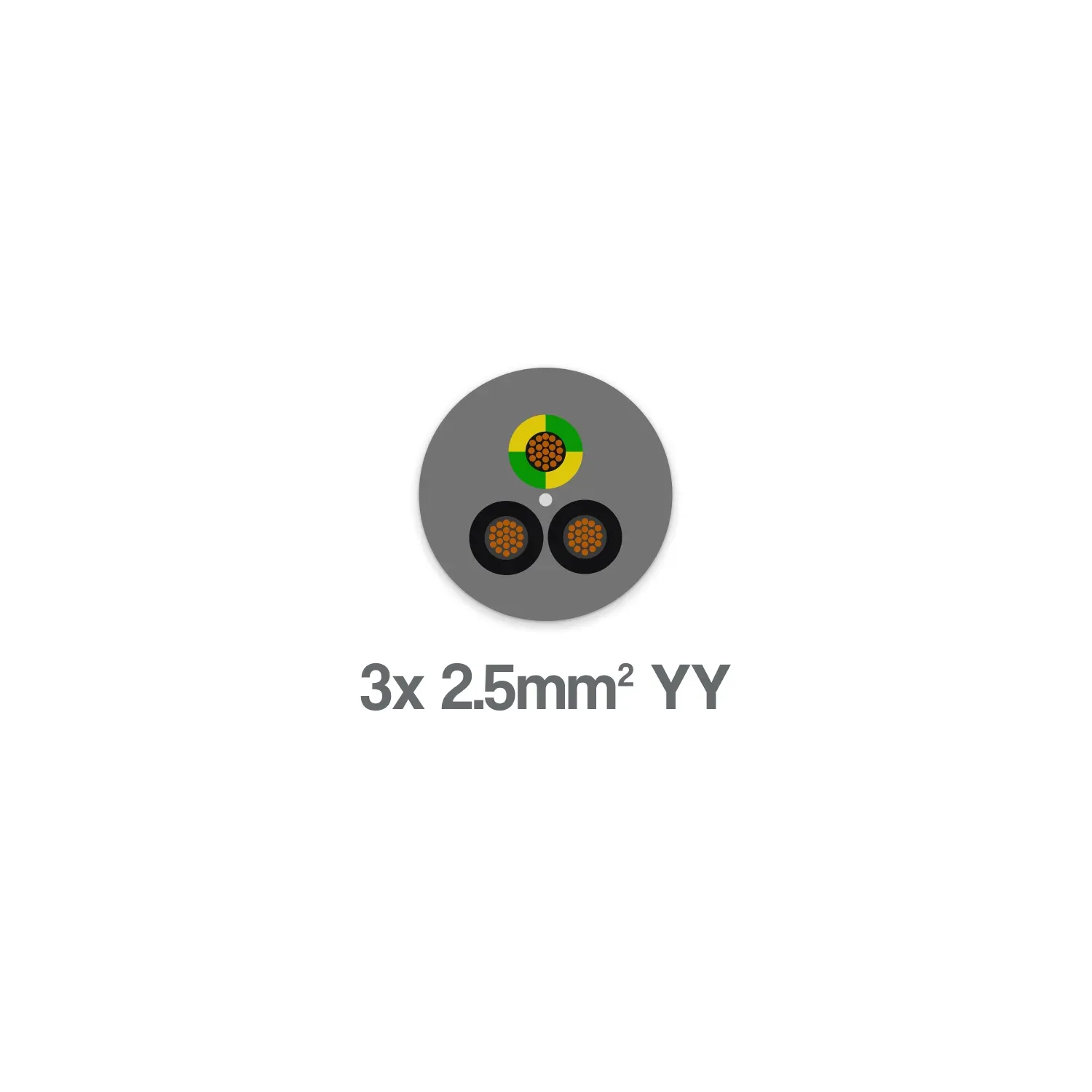

Plain annealed stranded copper conductors (50⁄0.25mm), identified as 2 black numbered cores plus G/Y earth.

  • 300/500V rated
  • 25A in air at 30°C / 20A in conduit at 30°C
  • OD 8.10mm, recommended gland 20S
  • Flex temp range -5°C to +70°C
Specifications

Voltage Rating

300/500V

Cores

3

CSA

2.5mm²

Stranding

50/0.25mm

Conductor Type

Plain Annealed Stranded Copper

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Core ID

2 black numbered cores + Green/Yellow earth

Outside Diameter

8.10mm

Recommended Gland Size

20S mm

Current Capacity in Air at 30°C

25A

Current Capacity in Conduit at 30°C

20A

Max Conductor Resistance at 20°C

7.98 Ω/km

Voltage Drop (Single Phase AC)

18 mV/A/m

Voltage Drop (Three Phase AC)

15 mV/A/m

Voltage Drop (2-core DC)

18 mV/A/m

Temperature Range (Flexing)

-5°C to +70°C

Temperature Range (Static)

-20°C to +70°C

Weight

126 kg/km

Cable Standard

BS EN 50525-2-11
