4 Core 2.5mm YY LSZH Flexible Control Cable 300 500V Grey

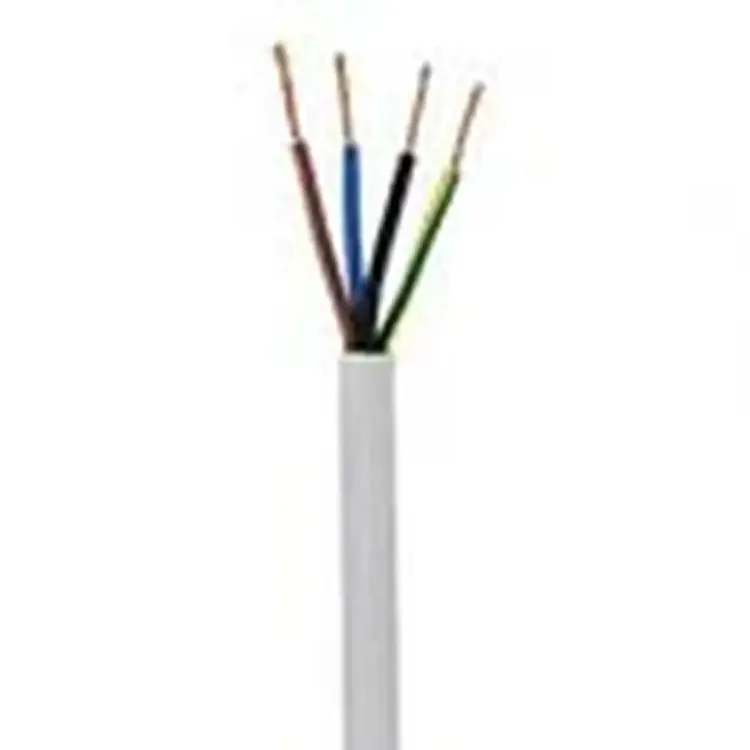

Photo is representative

4 Core 2.5mm YY LSZH Flexible Control Cable 300 500V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 425YY
GTIN —
Stock status: In stock

priced per metre

Net price: £2.65

Gross price

£3.17

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

4 core 2.5mm² YY control cable with LSZH insulation and outer sheath. Suitable for control, measuring and signal circuits on conveyors, assembly lines and production plant.

LSZH sheath limits smoke and toxic fume output in fire — suits installations where people density is a consideration. Conductors are plain annealed stranded copper, class 5 flexible.

Key specs:

  • 4 cores: 3 black numbered + G/Y earth
  • 300/500V, 25A in air / 20A in conduit at 30°C
  • OD 8.90mm — recommended gland 20S
  • Flexing range -5°C to +70°C, static -20°C to +70°C
  • BS EN 50525-2-11
Specifications

Cores

4

CSA

2.5mm²

Stranding

50/0.25mm

Conductor Type

Plain annealed stranded copper

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

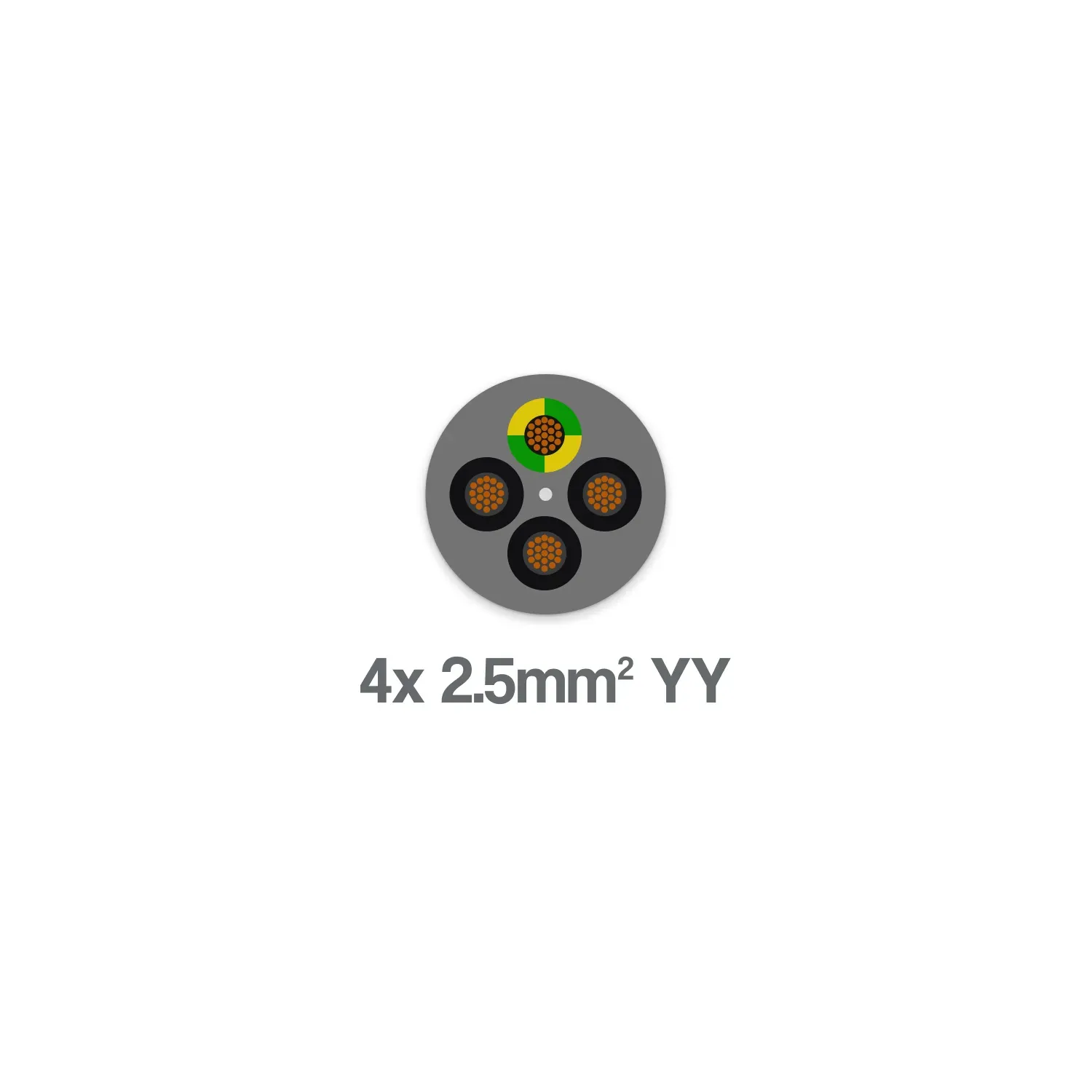

Core ID

3 black numbered cores + Green/Yellow earth

Voltage Rating

300/500V

Current Capacity in Air at 30°C

25A

Current Capacity in Conduit at 30°C

20A

Temperature Range (Flexing)

-5°C to +70°C

Temperature Range (Static)

-20°C to +70°C

Outside Diameter

8.90mm

Recommended Gland Size

20S mm

Max Conductor Resistance at 20°C

7.98 Ω/km

Voltage Drop (Single Phase AC)

18 mV/A/m

Voltage Drop (Three Phase AC)

15 mV/A/m

Weight

159 kg/km

Cable Standard

BS EN 50525-2-11
