5 Core 2.5mm YY LSZH Flexible Control Cable 300 500V Grey

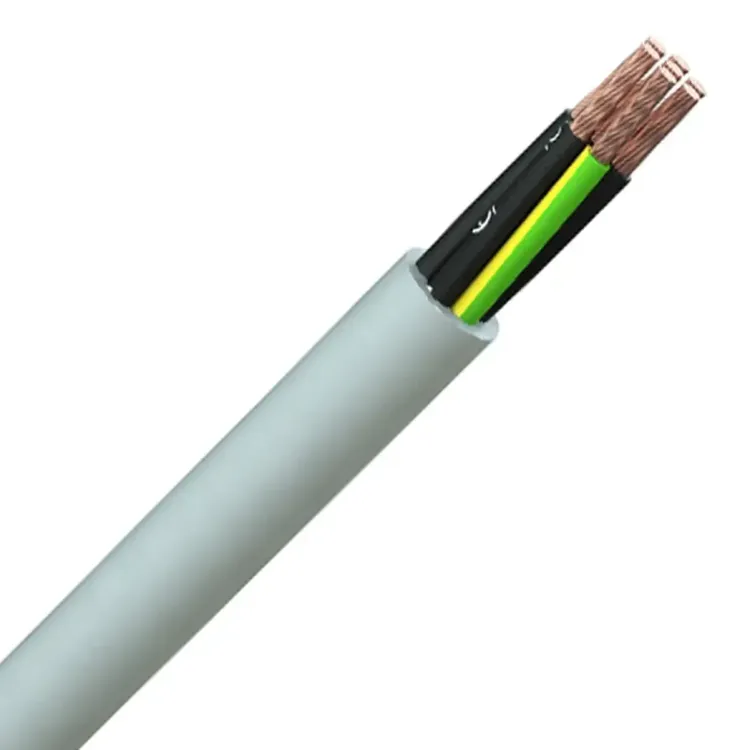

Photo is representative

5 Core 2.5mm YY LSZH Flexible Control Cable 300 500V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 525YY
GTIN —
Stock status: In stock

priced per metre

Net price: £3.37

Gross price

£4.05

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

5 core 2.5mm YY control cable with LSZH insulation and outer sheath. Suited to conveyors, assembly lines, and production equipment where fire safety is a factor — LSZH sheath limits smoke and toxic fume output.

Cores are 4 black numbered plus a G/Y earth. Plain annealed stranded copper conductors, 50⁄0.25mm stranding.

  • 300/500V rated
  • 25A current capacity in air at 30°C (20A in conduit)
  • 9.70mm OD — 20S gland
  • Static temp range: -20°C to +70°C
Specifications

Voltage Rating

300/500V

Conductor CSA

2.5mm²

Number of Cores

5

Core Identification

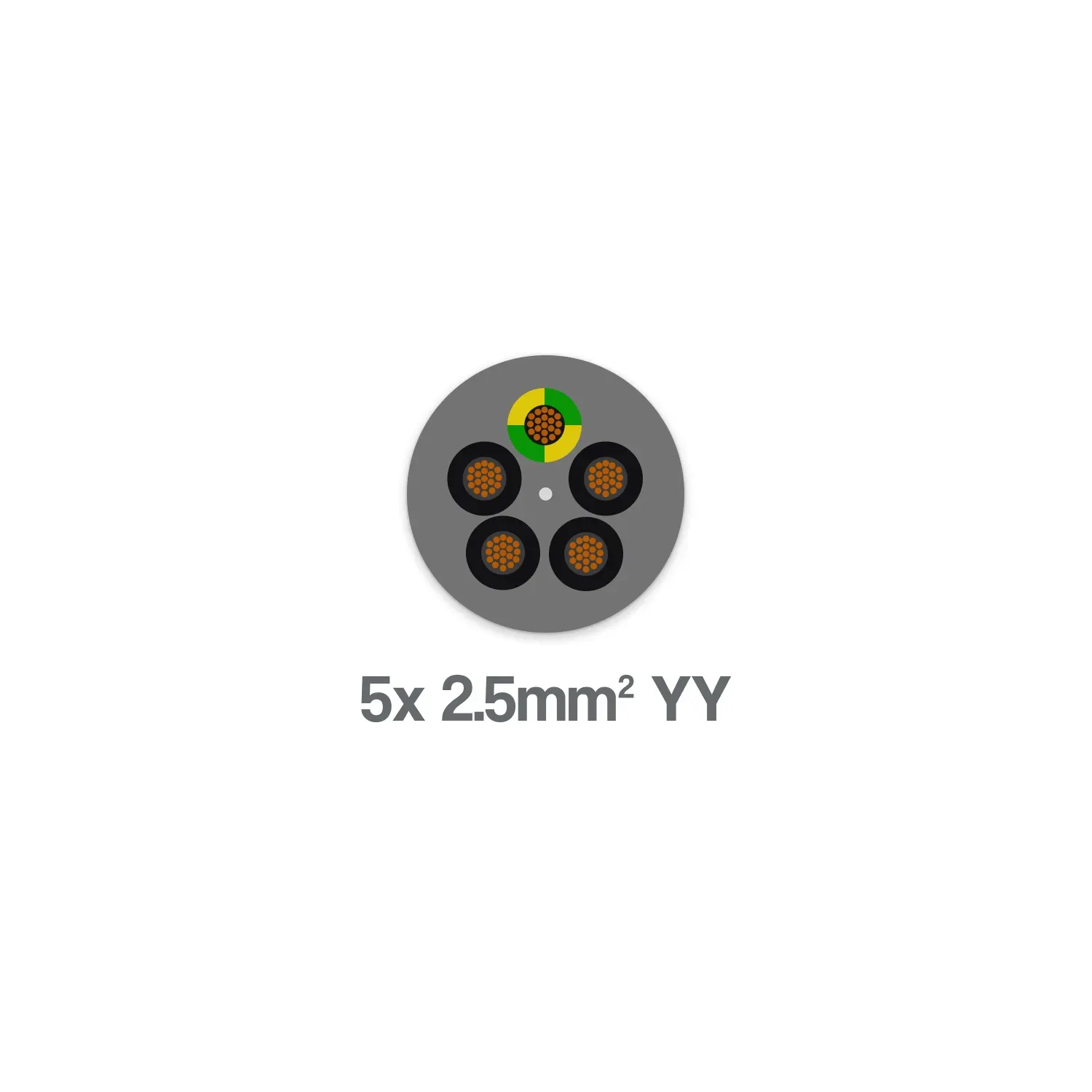

4 black numbered cores + Green/Yellow earth

Stranding

50/0.25mm

Conductor Type

Plain Annealed Stranded Copper

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Outside Diameter

9.70mm

Recommended Gland Size

20S mm

Current Capacity in Air at 30°C

25A

Current Capacity in Conduit at 30°C

20A

Max Conductor Resistance at 20°C

7.98 Ω/km

Voltage Drop (Single Phase AC)

18 mV/A/m

Voltage Drop (Three Phase AC)

15 mV/A/m

Temperature Range (Flexing)

-5°C to +70°C

Temperature Range (Static)

-20°C to +70°C

Weight

178 kg/km

Cable Standard

BS EN 50525-2-11
