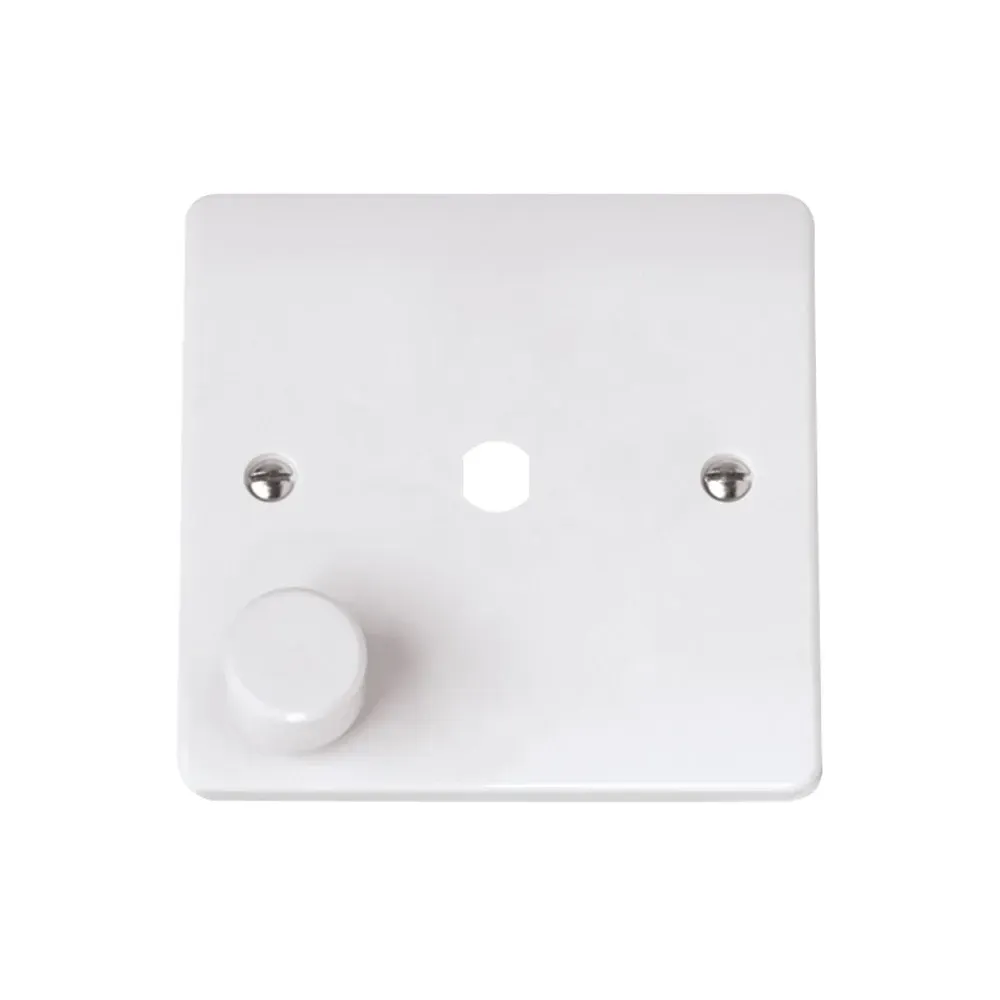

Click CMA145PL 650W 1-Gang Unfurnished Dimmer Plate - Polar White
650W maximum 1-gang unfurnished dimmer plate with single aperture for modular dimmer systems. Accepts MD9014 100W dual mode LED dimmer module, MD9001 6A push ON/OFF module, and MD9010 1-10V analogue rotary dimmer module. Brass screw terminals in 25mm minimum backbox depth. BS 5733 compliant with IP20 rating for domestic installations. 25-year warranty with antimicrobial properties achieving 99.9% bacteria kill rate. Professional installation with mains isolation required.
Online:
Product Features
| Load Capacity | 650W Maximum |
|---|---|
| Configuration | 1-Gang with 1 Aperture |
| Compatible Modules | MD9014 100W LED, MD9001 6A Push, MD9010 1-10V Dimmer |
| Terminal Type | Brass Screw Terminals |
| Backbox Depth | 25mm Minimum |
| Plate Dimensions | 86mm x 86mm x 9.5mm |
| Fixing Centres | 60.3mm Horizontal |
| Compliance Standard | BS 5733 |
| IP Rating | IP20 |
| Operating Temperature | -5°C to +40°C |
| Antimicrobial Properties | 99.9% Bacteria Kill Rate |
| Warranty Period | 25 Years |
Module Applications
LED Dimming
MD9014 100W dual mode module provides leading/trailing edge dimming for LED downlights and dimmable LED lamps up to 100W total load.
Non-Dimmable Control
MD9001 6A push module acts as dummy dimmer for non-dimmable loads like fluorescent or basic LED fixtures requiring simple ON/OFF control.
Analogue Control
MD9010 1-10V module enables rotary dimming control for commercial lighting systems using 1-10V analogue dimming protocols up to 650W.
Installation Requirements
Terminal Access
Brass screw terminals accept 2.5mm² cable. Mains isolation mandatory before installation. 86mm x 86mm standard UK plate dimensions with 60.3mm centres.
Backbox Compatibility
25mm minimum depth required but 35mm recommended for cable management. Standard flush mounting in plasterboard or masonry with appropriate fixings.
Compliance Standards
- Safety Standards BS 5733 compliant for domestic dimmer installations. IP20 rating suitable for dry interior locations. UKCA marked for UK market compliance.
- Antimicrobial Certification Urea formaldehyde construction with inherent antimicrobial properties. 99.9% kill rate for enveloped viruses and bacteria, 92% for non-enveloped viruses.
Frequently Asked Questions
-
What backbox depth needed for CMA145PL installation?
Minimum 25mm backbox depth required. Standard 35mm backboxes provide optimal cable management space for professional installation with screw terminals.
-
Which dimmer modules work with this plate?
MD9014 100W dual mode LED dimmer, MD9001 6A push ON/OFF dummy dimmer, and MD9010 1-10V analogue rotary dimmer modules are compatible.
-
Can this dimmer handle LED lighting loads?
Yes, when fitted with MD9014 100W dual mode LED dimmer module. Module provides leading/trailing edge dimming for LED compatibility.
-
What is the maximum load capacity?
650W maximum plate capacity, but actual dimming load depends on fitted module. MD9014 LED module provides 100W, MD9001 handles 6A switching loads.
-
Does this meet current wiring regulations?
Yes, BS 5733 compliant with IP20 rating for domestic use. Requires mains isolation during installation per 18th Edition wiring regulations.
