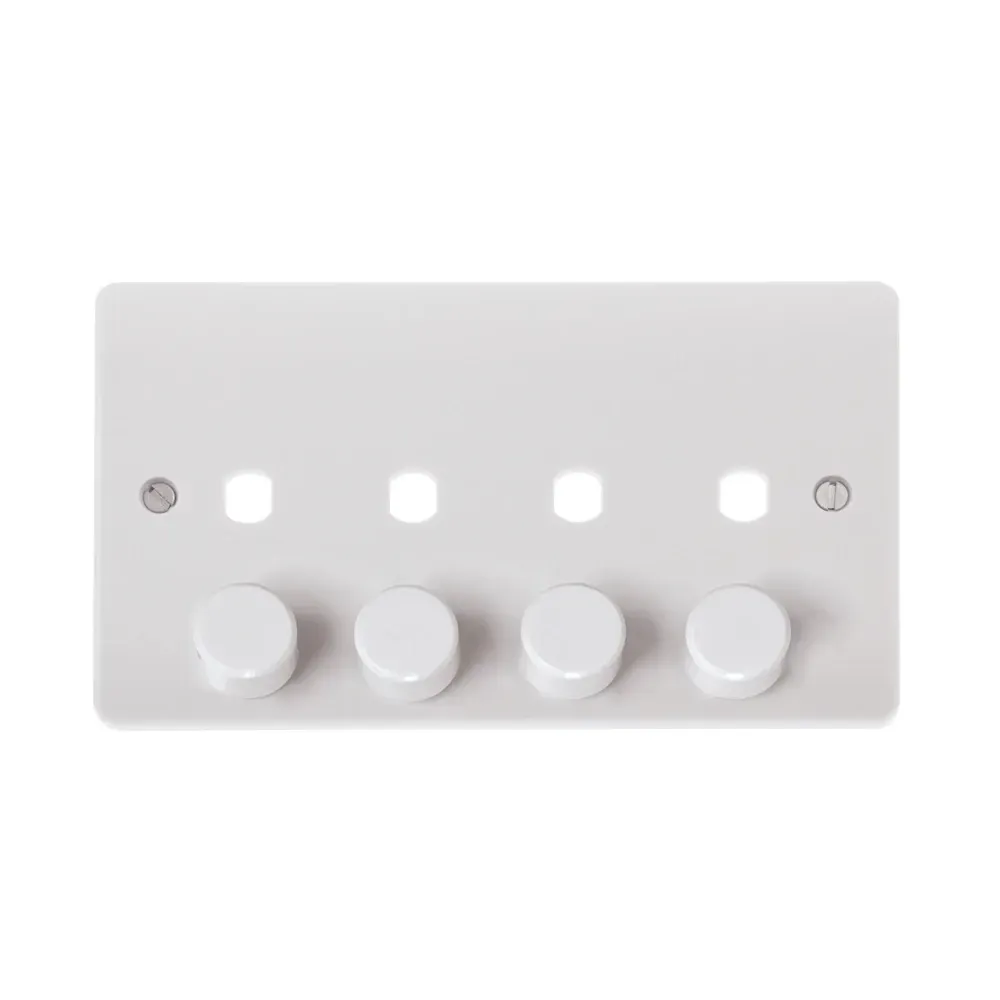

Click CMA148PL 1600W 2-Gang Unfurnished Dimmer Plate - Polar White
1600W maximum load unfurnished dimmer plate requiring separate modules for operation across 4 apertures. 2-gang configuration accepts Click MD series dimmer modules including 100W LED, 1-10V analogue, and push ON/OFF options. Screw terminals accommodate 2.5mm² cable with brass construction and mild steel earth strap. 25mm minimum backbox depth with 120.6mm fixing centres for standard 146x86mm installation. BS 5733 compliant with IP20 rating, operational from -5°C to +40°C. Urea formaldehyde construction features certified antimicrobial properties achieving 99.9% kill rate on bacteria and viruses. Supplied with polar white finish and 25-year warranty coverage for professional installations.
Online:
Product Features
| Load Capacity | 1600W Maximum (across all apertures) |
|---|---|
| Gang Configuration | 2-Gang with 4 Apertures |
| Module Type | Unfurnished (requires separate modules) |
| Terminal Type | Screw terminals with brass construction |
| Backbox Depth | 25mm minimum requirement |
| Plate Dimensions | 146mm (W) x 86mm (H) x 9.5mm (D) |
| Fixing Centres | 120.6mm horizontal spacing |
| Compliance Standard | BS 5733 certified |
| Ingress Protection | IP20 rated for indoor use |
| Operating Temperature | -5°C to +40°C range |
| Antimicrobial Properties | 99.9% kill rate on bacteria and viruses |
| Warranty Coverage | 25 years manufacturer warranty |
Module Compatibility
LED Dimming
MD9014 100W dual mode LED dimmer module supports both leading and trailing edge LED loads with smooth dimming control.
Push Control
MD9001 6A push ON/OFF module provides dummy dimmer function for non-dimmable loads requiring simple switching operation.
Analogue Control
MD9010 1-10V analogue rotary dimmer enables precise control of commercial LED drivers with industry standard signalling.
Installation Requirements
Fixing Centres
120.6mm horizontal fixing centres match standard UK wiring accessory mounting patterns for consistent installation across ranges.
Terminal Access
Top-access screw terminals with brass construction provide reliable connections for 2.5mm² ring main cables and earth continuity.
Earth Connection
Mild steel earth strap ensures proper earthing continuity. All bare earth cables require green/yellow sleeving before terminal connection.
Standards Compliance
BS 5733
Certified to British Standard 5733 for general requirements covering safety, performance and testing of domestic electrical accessories.
CE UKCA Marking
Dual CE and UKCA conformity marking ensures compliance across UK and European markets with applicable safety directives.
IP20 Rating
IP20 ingress protection suitable for standard indoor installations with protection against solid objects over 12.5mm diameter.
Frequently Asked Questions
-
What backbox depth is required for the CMA148PL dimmer plate?
Minimum 25mm backbox depth required. Standard 35mm backboxes provide adequate clearance for module installation and cable connections behind the plate.
-
Which dimmer modules are compatible with this unfurnished plate?
Compatible with Click MD series modules: MD9014 100W LED dimmer, MD9001 6A push ON/OFF, and MD9010 1-10V analogue rotary dimmer modules.
-
What is the maximum combined load across all 4 apertures?
1600W maximum total load when all apertures are populated with compatible dimmer modules. Individual module ratings apply within this overall limit.
-
Can this dimmer plate control LED lighting circuits?
Yes, when fitted with MD9014 100W dual mode LED dimmer modules. The plate itself is unfurnished and requires appropriate modules for LED compatibility.
-
How are the terminals connected on this dimmer plate?
Brass screw terminals accept standard 2.5mm² cables. Earth connection via mild steel earth strap. Bare earth cables must be sleeved before connection to terminals.
