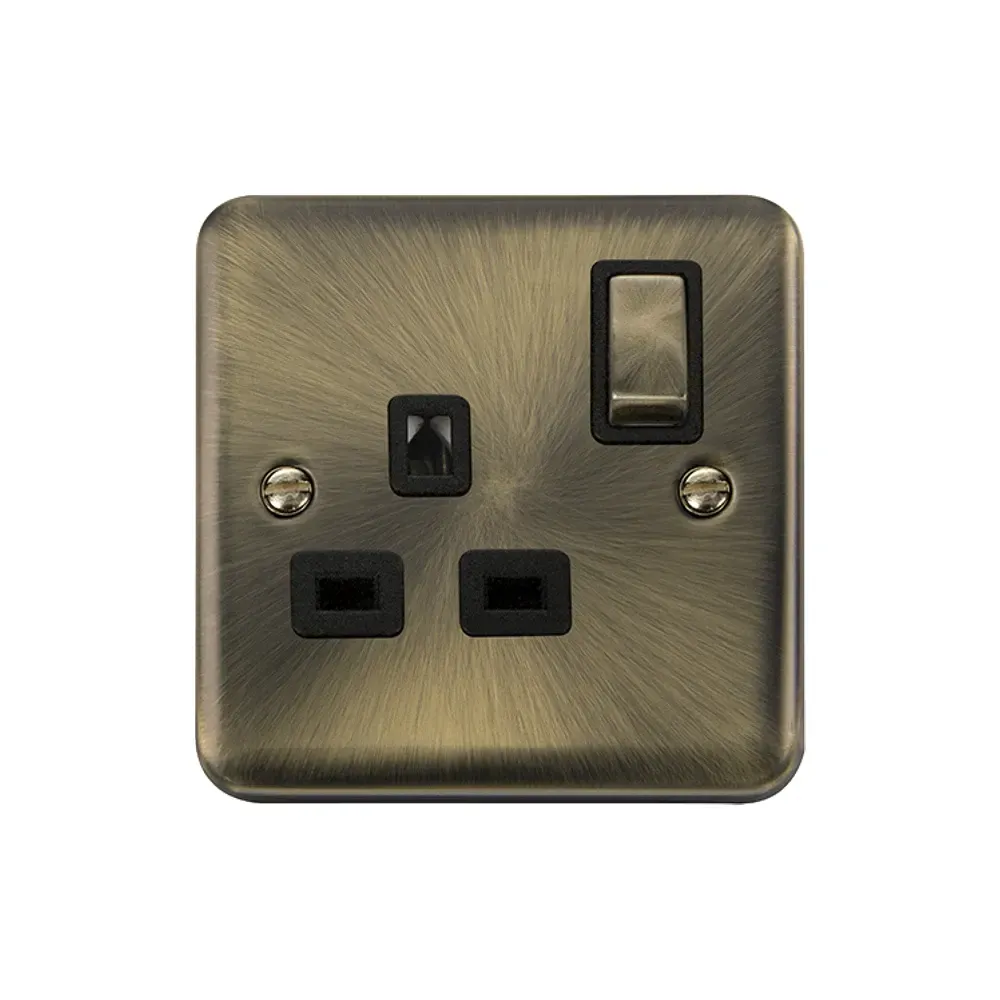

Click DPAB1535BK 13A Double Pole Safety Socket - Antique Brass
Professional 13A double pole switched safety socket with advanced 3-pin shutter system. Antique brass stainless steel plate with black insert provides premium finish for domestic and commercial installations. IP20 rating suitable for indoor dry locations. Screw terminals accept up to 2.5mm² conductors with 2Nm torque specification. Minimum 25mm back box depth required for installation. Advanced safety shutters only open when all three BS 1363 plug pins engage correctly, preventing access to live terminals. Double pole switching isolates both live and neutral for enhanced safety. 20-year warranty with BS 1363-2 compliance and CE marking.
Online:
Product Features
| Product Code | DPAB1535BK |
|---|---|
| Electrical Rating | 13A 250V 50Hz |
| Switch Type | Double Pole Switched |
| Safety Features | 3-Pin Safety Shuttered Socket |
| Plate Dimensions | 88 x 88 x 8mm (91 x 91 x 9mm with gasket) |
| IP Rating | IP20 Indoor Dry Locations |
| Terminal Type | Screw Terminals 2.5mm² Capacity |
| Back Box Depth | Minimum 25mm Required |
| Finish | Antique Brass with Black Insert |
| Compliance | BS 1363-2, CE Marked, 20-Year Warranty |
Installation Guidelines
Terminal Connections
Screw terminals with 2Nm torque value. Bare earth cables must be sleeved when connected to earth terminal.
Back Box Requirements
Minimum 25mm depth required. Standard 35mm back boxes recommended for easier cable management and termination access.
Fixing Specifications
Plate fixing centres 60.3mm horizontal spacing. Use appropriate screws for back box material and wall construction type.
Safety Standards
BS 1363-2 Compliance
Full compliance with British Standard for 13A plugs and socket outlets. CE marking confirms European conformity assessment.
Safety Shutter Operation
Advanced system prevents access to live terminals unless all three BS 1363 plug pins engage simultaneously and correctly.
Double Pole Switching
Isolates both live and neutral conductors when switched off, providing enhanced safety for portable appliance disconnection.
Applications & Uses
Domestic Installations
Suitable for residential properties requiring premium finish safety sockets. IP20 rating for indoor dry room applications only.
Commercial Properties
Office environments, retail spaces, and commercial buildings where antique brass finish matches interior design requirements.
DoC Installation Applications
Declaration of Conformity installation certified for professional electrical installations requiring documented compliance verification.
Frequently Asked Questions
-
What back box depth is required for DPAB1535BK installation?
Minimum 25mm back box depth required. Standard 35mm back boxes provide adequate installation clearance for screw terminal connections.
-
How do the safety shutters work on this socket?
Advanced 3-pin safety system only opens when all three BS 1363 plug pins engage correctly. Earth pin alone cannot open shutters.
-
What cable sizes can the screw terminals accept?
Screw terminals accept 3 x 2.5mm² or 2 x 4mm² conductors. Terminal torque specification is 2Nm for secure connections.
-
Is this socket suitable for outdoor or wet area installation?
No, IP20 rating is for indoor dry locations only. Contact us for weatherproof socket recommendations for outdoor applications.
-
What is the difference between single pole and double pole switching?
Double pole switching isolates both live and neutral conductors for enhanced safety, particularly important for portable appliance connections.
