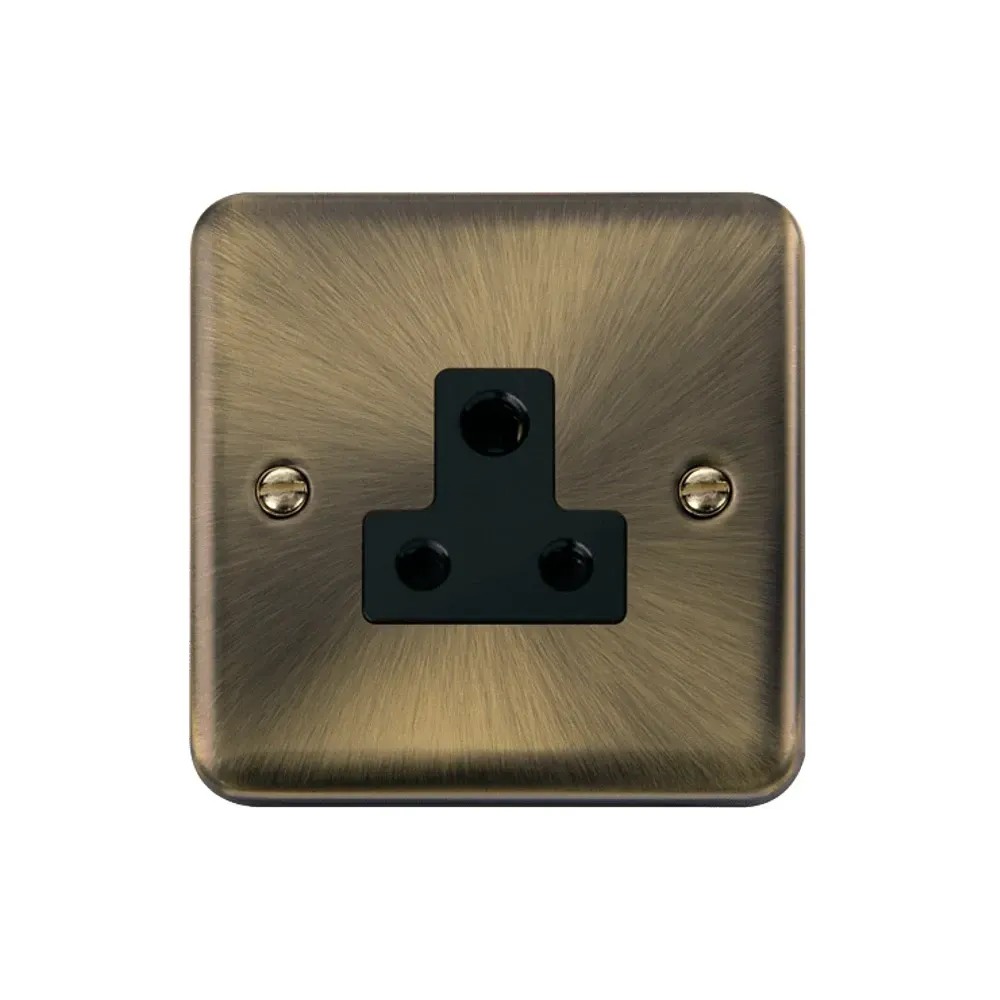

Click DPAB038BK 5A round pin socket antique brass
Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

Click DPAB038BK 5A Round Pin Socket - Antique Brass Finish

Professional-grade Click DPAB038BK 5A unswitched round pin socket outlet featuring antique brass finish with black insert. Built to BS 546 standard with stainless steel front plate and rounded profile design. Operating at 250V AC with IP20 protection, this socket accommodates 4 x 1.5mm² or 3 x 2.5mm² terminal capacity with screw connections. Essential for domestic and commercial installations requiring 5A round pin appliance connections. Minimum 25mm back box depth required with 60.3mm fixing centres. Backed by Click’s industry-leading 20-year warranty for long-term reliability in professional electrical systems.

Stock Code: DPAB038BK

Online:

In stock
Price 12.19 £
incl. VAT, 20% priced individually

Product Features

Product Code DPAB038BK
Socket Rating 5A Round Pin
Operating Voltage 250V AC 50Hz
Finish Antique Brass with Black Insert
Plate Dimensions 88 x 88 x 8mm
Terminal Capacity 4 x 1.5mm² or 3 x 2.5mm²
Ingress Protection IP20
Back Box Depth 25mm Minimum
Compliance BS 546 Standard
Warranty 20 Years

Installation Guidelines

Back Box Requirements

Minimum 25mm depth required with 60.3mm horizontal fixing centres for secure mounting.

Terminal Connections

Screw terminals accommodate 4 x 1.5mm² or 3 x 2.5mm² solid conductors with 1.2Nm torque specification.

Operating Conditions

Rated for -5°C to +40°C operational temperature range with 250V AC 50Hz supply.

Standards & Compliance

BS 546 Standard

Manufactured to British Standard BS 546 for round pin socket outlets with professional certification.

Design Registration

UK Design Registration 3015621 with CE and UKCA marking for regulatory compliance.

Frequently Asked Questions

  • What back box depth is required for DPAB038BK installation?

    Minimum 25mm back box depth required with 60.3mm horizontal fixing centres for proper installation.

  • What wire sizes can connect to this 5A socket?

    Terminal capacity accommodates 4 x 1.5mm² or 3 x 2.5mm² solid conductors with 1.2Nm torque.

  • Is the DPAB038BK socket switched or unswitched?

    This is an unswitched 5A round pin socket outlet without integral switching mechanism.

  • What standard does this round pin socket comply with?

    Manufactured to BS 546 standard with UK Design Registration 3015621 and CE/UKCA marking.

  • What appliances use 5A round pin connections?

    Designed for 5A rated electrical equipment and round pin appliances in domestic/commercial installations.
