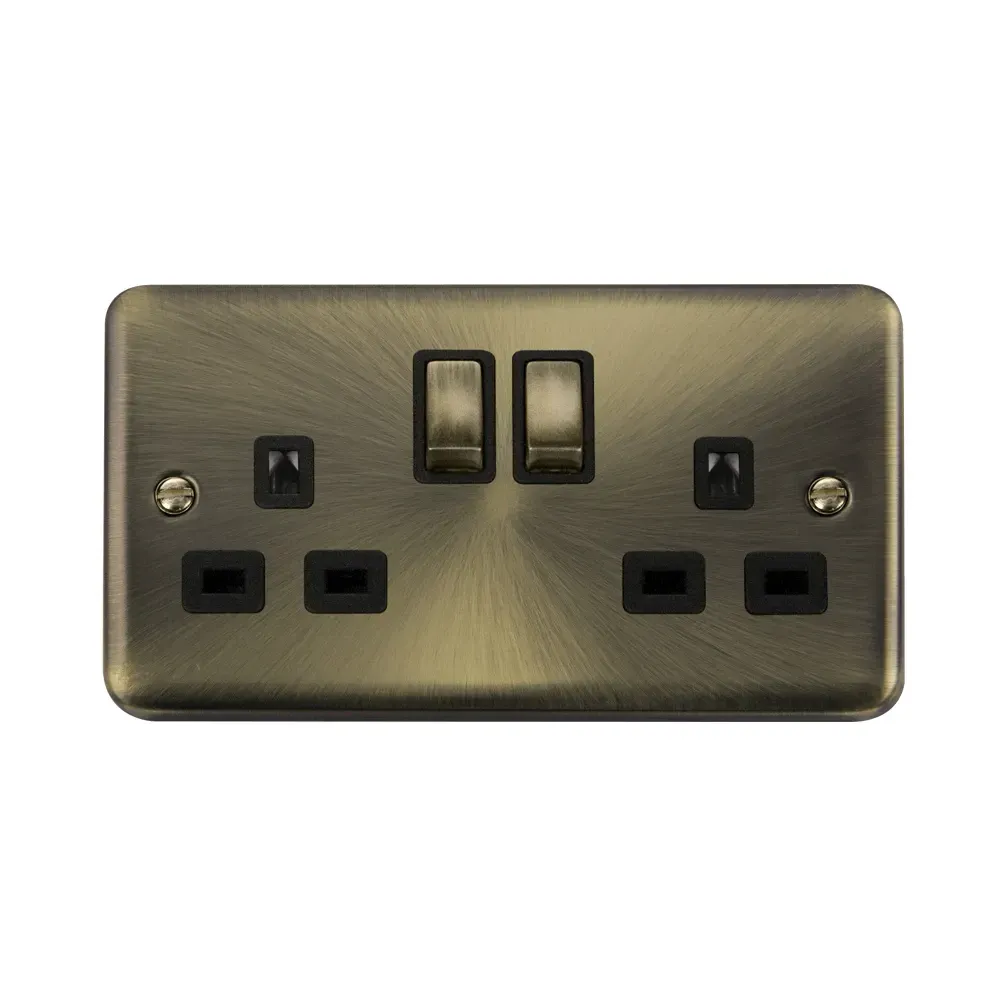

Click DPAB1536BK 13A 2 Gang Double Pole Switched Socket
Professional Click 13A 2 gang double pole switched socket with advanced safety shutters and antique brass finish. Features stainless steel construction, twin earth terminals, and 20-year warranty. IP20 rating for indoor dry installations. Requires 25mm minimum back box depth. Screw terminal connections rated 250V 50Hz. Complete circuit isolation via double pole switching. Advanced safety shutter mechanism prevents unauthorized access. Ideal for residential and commercial electrical systems requiring switched power distribution with enhanced safety protection.
Online:
Product Features
| Product Code | DPAB1536BK |
|---|---|
| Electrical Rating | 13A 250V 50Hz |
| Configuration | 2 Gang Double Pole Switched |
| Dimensions | 146 x 88 x 8mm |
| IP Rating | IP20 |
| Terminal Type | Screw 5mm with Twin Earth |
| Back Box Depth | 25mm Minimum |
| Finish | Antique Brass with Black Insert |
| Compliance | BS 1363-2, CE Marked |
| Warranty | 20 Years |
Safety Standards
BS 1363-2 Compliance
Full compliance with British Standard for 13A switched socket outlets including safety shutter performance requirements.
Advanced Shutter Protection
Three-pin engagement system prevents single pin insertion while maintaining normal plug operation for qualified electricians.
Double Pole Isolation
Complete circuit disconnection of both live and neutral conductors provides enhanced safety during maintenance operations.
Installation Guidelines
Terminal Requirements
Screw terminals rated for 2Nm torque with twin earth provision. Bare earth cables require appropriate sleeving protection.
Back Box Specifications
25mm minimum depth required with 120.6mm horizontal fixing centres for secure mounting and cable management.
Circuit Integration
Suitable for standard ring final circuits with appropriate circuit protection. Refer to circuit diagrams for proper connections.
Applications & Uses
Residential Installations
Ideal for domestic power distribution where double pole switching provides enhanced safety and complete circuit isolation.
Commercial Applications
Professional grade construction suitable for commercial environments requiring reliable switched power distribution with safety shutters.
Safety Critical Areas
Advanced safety shutter mechanism prevents unauthorized access making it suitable for environments with enhanced safety requirements.
Frequently Asked Questions
-
What back box depth is required for DPAB1536BK installation?
Minimum 25mm back box depth required for proper installation and cable management with screw terminals.
-
How do the safety shutters work on this socket?
Advanced 3-pin safety system requires all three BS 1363 plug pins to engage simultaneously before shutters open.
-
What terminal capacity does the DPAB1536BK support?
Screw terminals accommodate 3 x 2.5mm² or 2 x 4mm² conductors with 2Nm torque specification.
-
Is this socket suitable for bathroom installations?
No - IP20 rating suitable for indoor dry locations only. Contact us for bathroom-rated alternatives.
-
What is double pole switching and when is it required?
Double pole switching isolates both live and neutral conductors, providing complete circuit isolation for enhanced safety.
