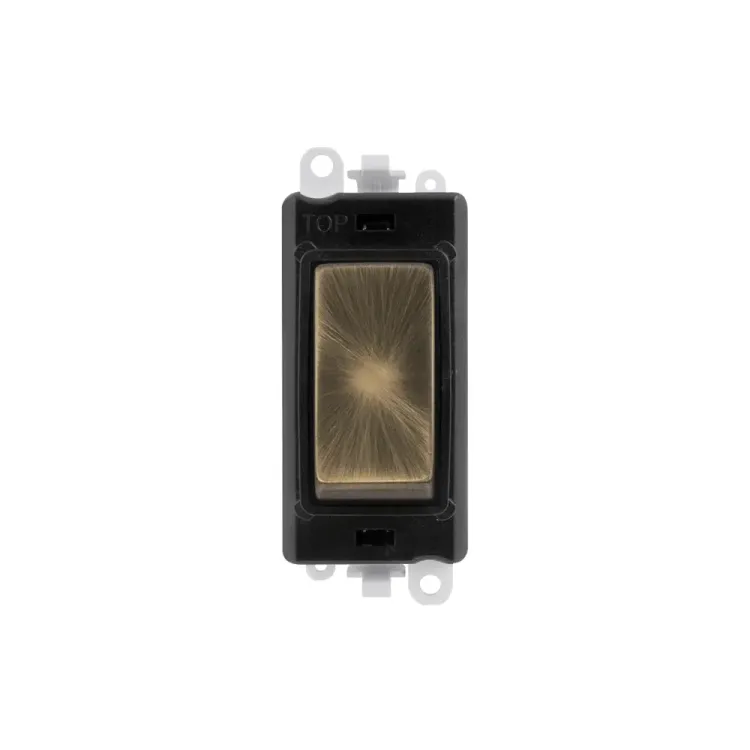

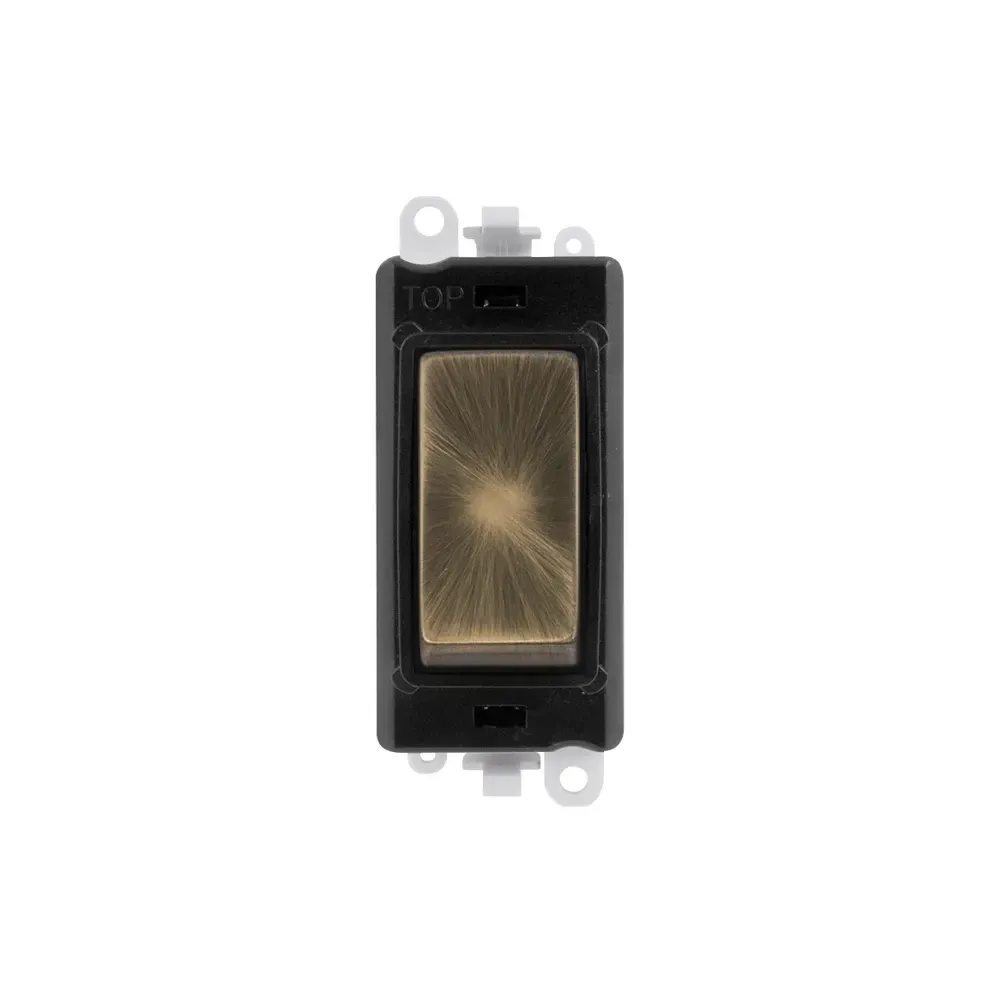

Click GridPro 20AX 2 Way Switch Module - For Lighting Control - Antique Brass
This Click GridPro 20AX 2 Way Switch Module in Antique Brass is designed for reliable lighting control in commercial and domestic modular grid systems. Suitable for installation on 250V AC circuits with inductive, LED or fluorescent loads, this module supports 2-way switching for multi-point light operation. Rated for a maximum inductive load of 20AX, it provides safe switching within circuits protected by appropriate 10A or 16A MCB/RCBO devices. Not recommended for high-power appliances or outdoor locations (IP20).
• 20AX inductive switching capacity suitable for controlling fluorescent and inductive lighting loads on protected 230/250V circuits. • 2 Way switch function allows installation as part of multi-way lighting control schemes. • Screw termination with 5mm terminals handles up to 3 x 2.5mm² or 2 x 4mm² solid conductors for secure installation. • Clip-on module compatible with Click GridPro grid systems for custom control panels. • Antique Brass finish with black insert supports project-matched aesthetics and specification-driven installations.
Installation should be by a qualified electrician on circuits protected per I.S. 10101 or BS 7671. Module rating does not permit increasing circuit load beyond existing design limits.
Online:
Product Features
| Module Rating | 20AX inductive load at 250V AC |
|---|---|
| Switch Function | 2 Way |
| Termination Type | Screw terminals, Ø5mm |
| Terminal Capacity | 3 x 2.5mm² or 2 x 4mm² solid |
| Compatible Grid System | Click GridPro |
| Finish | Antique Brass with Black Insert |
| Switch Materials | Body & Insert: Nylon, Switch: Urea, Cover: Stainless Steel |
| Ingress Protection | IP20 (Indoor use only) |
| Standards Compliance | BS EN 60669-1 |
| Minimum Back Box Depth | 25mm (35mm for flat plate) |
| Operating Voltage | 250V AC, 50Hz |
| Warranty | 20 years |
Frequently Asked Questions
-
What size/rating do I need for grid lighting control?
Use a 20AX module for fluorescent or inductive lighting circuits up to 20A. Ensure circuit protection matches cable and installation as per standards.
-
Can this module be used for heating or high load appliances?
No, the GM2002BKAB is designed for lighting loads, especially LED, fluorescent or inductive up to 20A. Not suitable for water heaters or heavy appliances.
-
What does '20AX' mean for my installation?
'20AX' means the module can switch up to 20A of fluorescent or inductive lighting loads safely, accounting for higher inrush currents typical in such circuits.
-
What's the difference between 2 way and intermediate switches?
A 2 way switch controls a light from two locations. An intermediate switch is used when three or more locations control the same light.
-
How do I install this module in my lighting panel?
Fit the module in a compatible Click GridPro grid frame. Ensure a minimum 25mm back box depth and use screw terminals for secure wiring by a qualified electrician.
