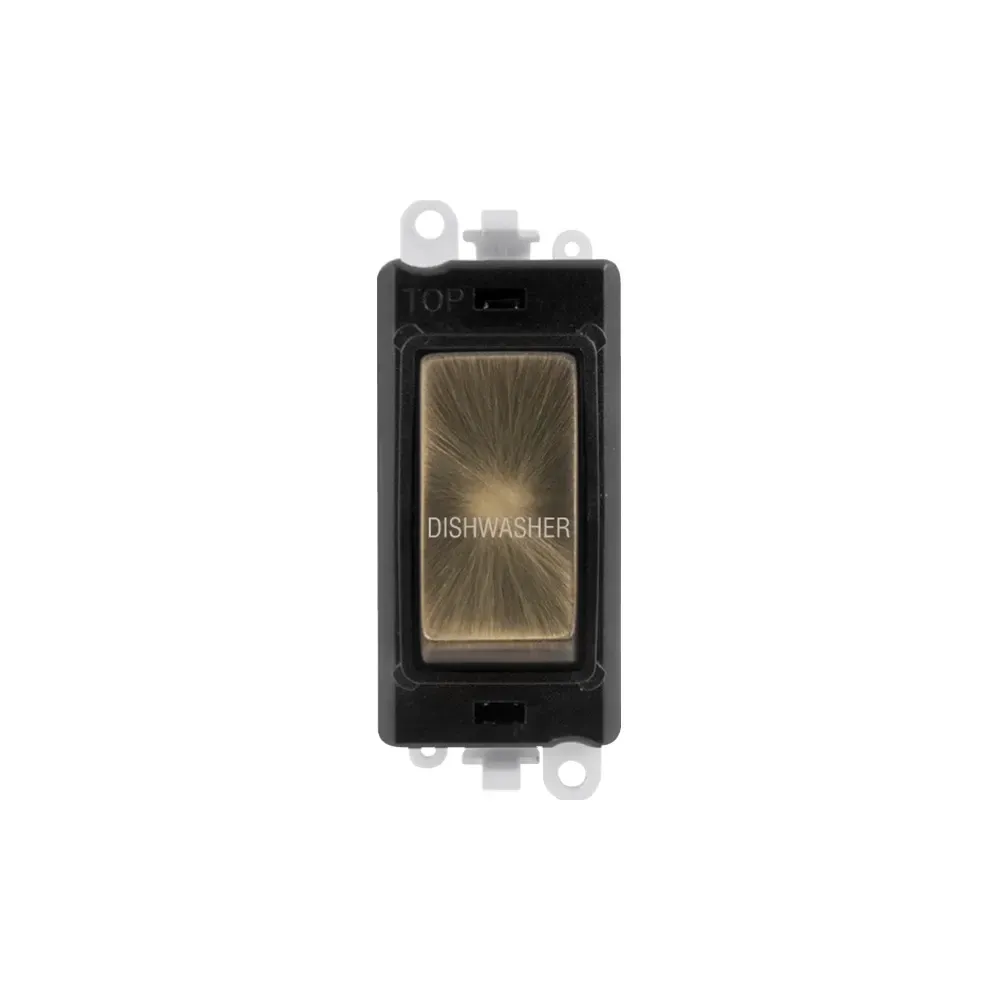

GM2018BKAB-DW double pole switch module, 20AX rating

Photo is representative

Click GridPro 20AX DP Switch Module - For Dishwasher Isolation - Antique Brass

This 20AX double pole GridPro switch module in antique brass provides safe and reliable isolation for dishwashers and fixed appliances within domestic and commercial settings. Rated at 20A inductive (AX) with 250V AC operation, it is suitable for circuits protected by up to 20A MCB/RCBO. Double pole switching meets I.S. 10101 and BS 7671 isolation requirements, ideal for appliances such as dishwashers, immersion heaters, and HVAC control. Not recommended for wet locations—IP20 rating restricts use to dry, indoor environments.

  • Antique Brass finish, black insert, “Dishwasher” engraving
  • 20AX switching capacity for isolating inductive or resistive loads up to 20A on protected circuits
  • Double pole (DP) action ensures full disconnection, compliant with I.S. 10101 / BS 7671
  • Screw termination supports 3 × 2.5mm² or 2 × 4mm² solid conductors, facilitating integration on existing 16A or 20A circuits
  • IP20 ingress protection: for indoor use only, not suitable for areas exposed to moisture

Installation must be by a qualified electrician. Module does not alter the circuit rating and should not be used to upgrade existing electrical installations.

Stock Code: GM2018BKABDW

Online:

1 available
Price 10.93 £
incl. VAT, 20% priced individually

Product Features

Module Rating 20AX (inductive/resistive), 250V AC
Switch Configuration Double Pole (DP)
Termination Type Screw, 3 × 2.5mm² or 2 × 4mm² solid conductors
Panel Marking Dishwasher
Ingress Protection IP20 (indoor use only)
Finish Antique Brass
Insert Colour Black
Minimum Back Box Depth 25 mm (35 mm for flat plate)
Warranty 20 years
Standard BS EN 60669-1

Frequently Asked Questions

  • What size/rating do I need for dishwasher isolation?

    Use a 20AX double pole module on circuits protected up to 20A, typically for domestic dishwashers. Verify circuit MCB and cable sizing.

  • What does 20AX mean for my installation?

    20AX rating supports inductive and resistive loads up to 20A at 250V AC, suitable for switching appliances like dishwashers and HVAC units.

  • Difference between this and a fused spur module?

    A fused spur offers appliance-specific protection. This DP switch provides isolation only—use with adequately protected circuits.

  • How do I install this module in a kitchen panel?

    Fit in a suitable GridPro plate with minimum 25mm back box. Wiring must conform to circuit design, installed by a qualified electrician.

  • Is this suitable for Part P compliance in the UK?

    Yes, when installed by a competent person, this DP module meets BS 7671 for appliance isolation in domestic electrical installations.
