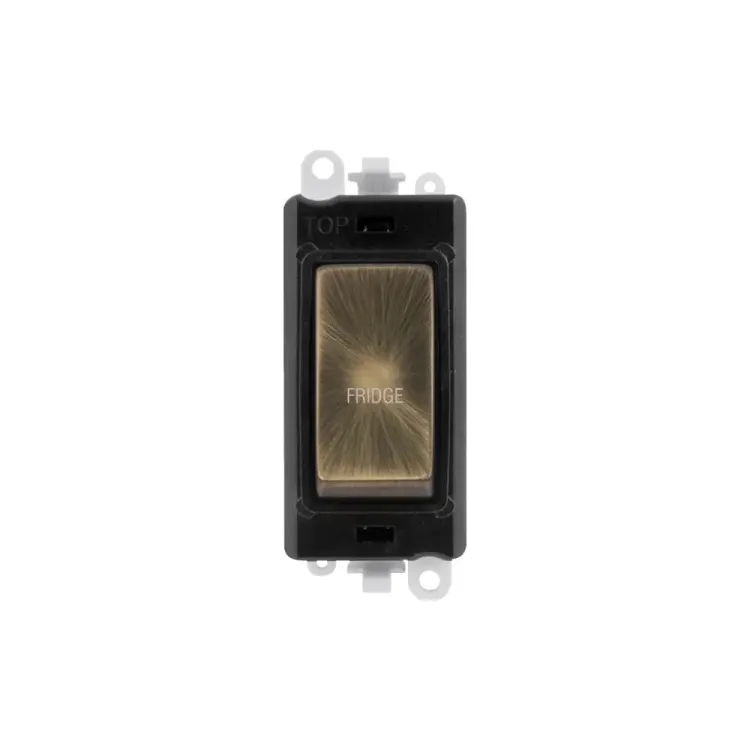

Photo is representative

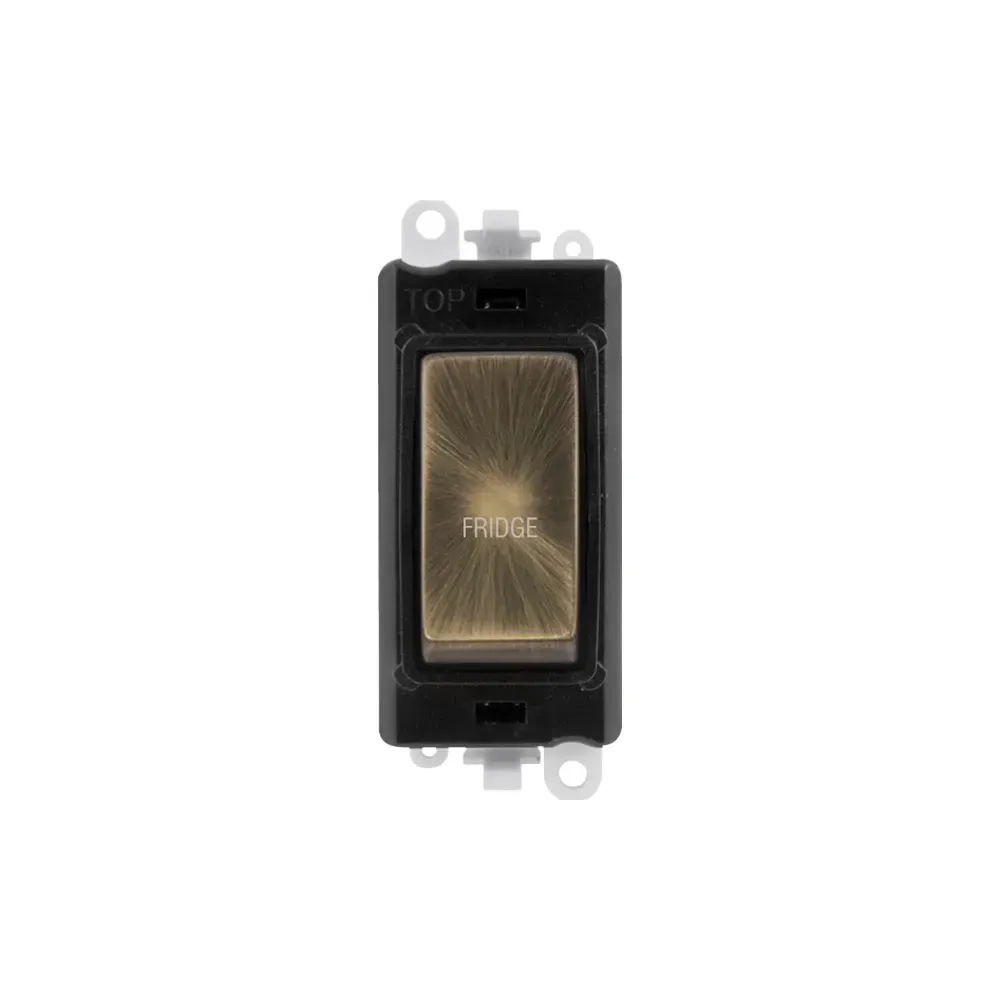

Click GridPro 20A DP Switch Module - Fridge - Antique Brass
This 20A double-pole GridPro switch module in antique brass isolates fridges and fixed appliances on circuits protected by a 16A MCB or RCBO. It handles continuous loads up to 13A to prevent overheating in homes or businesses. Double-pole design ensures full isolation per I.S. 10101 and BS 7671. Ideal for HVAC panels, kitchen setups, or commercial gear.
- 20A, DP switching for complete isolation
- Antique brass with black insert and “Fridge” engraving
- Screw terminals: 3x2.5mm² or 2x4mm² cables; side wired; verify back box depth
- Doesn’t increase circuit capacity—limited by MCB/RCBO and cables
Online:
Product Features
Module Rating | 20A at 250V AC, 50Hz |
---|---|
Function | Double pole isolation switch module |
Pole Configuration | Double pole (DP), provides complete isolation |
Finishes | Antique brass with black insert |
Marking | Fridge |
Terminal Capacity | 3 x 2.5mm² or 2 x 4mm² solid |
Operating Temperature | -5°C to +40°C |
Ingress Protection | IP20 (dry indoor use only) |
Standards Compliance | BS EN 60669-1 |
Installation Depth | Minimum 25mm back box (35mm for flat plate) |
