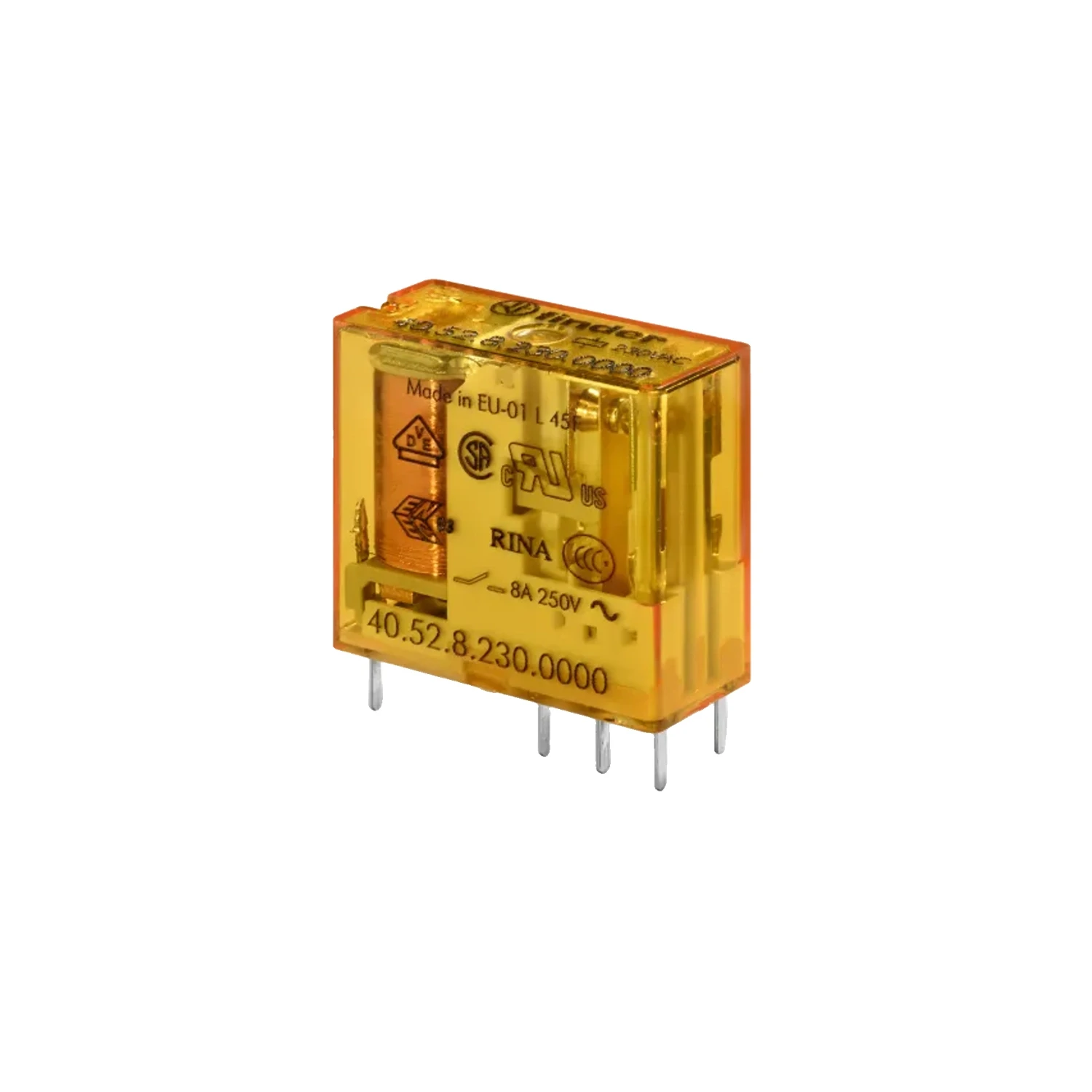

Finder 8PMR24VAC 24V AC 8-Pin 8A Miniature PCB Relay 2CO 250V

Photo is representative

Finder 8PMR24VAC 24V AC 8-Pin 8A Miniature PCB Relay 2CO 250V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 8PMR24VAC
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £7.97

Gross price

£9.56

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Miniature PCB relay from Finder. 8-pin, 2CO configuration — suits direct PCB mounting or plug-in via 95 Series sockets. 24V AC coil, flux proof version (RT II).

AgNi contacts rated at 8A/250V AC with 100,000 cycle electrical life. Operating range 19.2–26.4V AC covers typical 24V AC control circuits.

  • Coil: 24V AC, 1.2 VA, 45 mA, 320 Ω
  • Contacts: 8A, 250V AC, 2CO, AgNi
  • Insulation coil/contacts: 6 kV
  • Ambient: -40 to 85°C
  • Dimensions: 12.4 × 25 × 29 mm
Specifications

Coil Voltage

24 V AC

Operating Range

19.2...26.4 V AC

Rated Current (Contacts)

8 A

Rated Contact Voltage

250 V AC

Contact Configuration

2CO (2 pole changeover)

Contact Material

AgNi

Coil Type

AC coil

Rated Power

1.2 VA

Coil Resistance

320 Ω

Coil Consumption

45 mA

Holding Voltage

19.2 V

Must Drop-out Voltage

4.8 V

Insulation Coil/Contacts

6 kV

Pin Pitch

5 mm

Pin Length

5.2 mm

Dimensions

12.4 × 25 × 29 mm

Electrical Life

100,000 cycles

Ambient Temperature

-40...85 °C

Version

Flux proof (RT II)

Mount Type

PCB / Plug-in (95 Series sockets)

Certifications

CE, RoHS, CCC, RIFA
