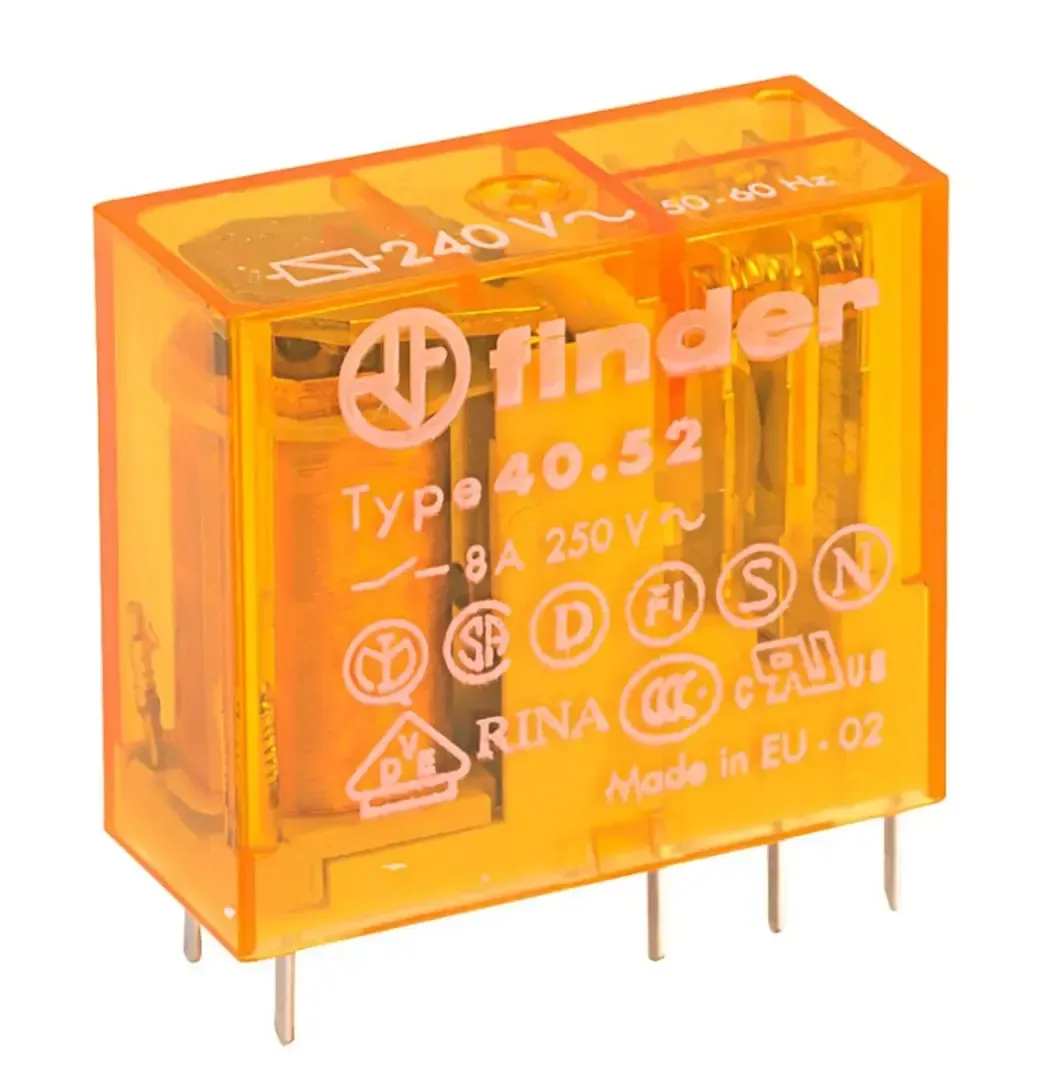

Finder 40.52.8.240.0000 240V AC 8 Pin 8A 2 Pole Miniature PCB Relay

Photo is representative

Finder 40.52.8.240.0000 240V AC 8 Pin 8A 2 Pole Miniature PCB Relay

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 8PMR240VAC
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £11.89

Gross price

£14.27

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Miniature 2-pole relay from Finder for PCB mount or plug-in applications. Takes a 240V AC coil, rated at 8A across AgNi contacts. Compatible with 95 Series sockets for plug-in use.

Suited to switching applications where board space is tight. 5.0 mm pin pitch, compact 12.4 × 25 × 29 mm footprint, and a wide operating range of 192–264V AC.

  • Contact config: 2CO (2 pole changeover)
  • Rated contact voltage: 250V AC
  • Coil/contact insulation: 6 kV
  • Electrical life: 100,000 cycles
  • Operating temp: -40 to +85 °C
Specifications

Coil Voltage (Nominal)

240 V AC

Coil Operating Range

192–264 V AC

Rated Current (Contacts)

8 A

Rated Contact Voltage

250 V AC

Contact Configuration

2 pole CO (DPDT)

Contact Material

AgNi (cadmium-free)

Coil Resistance

31500 Ω

Coil Consumption

4.1 mA

Rated Power (Coil)

1.2 VA

Must Drop-out Voltage

48 V

Holding Voltage

192 V

Coil/Contact Insulation

6 kV

Electrical Life

100,000 cycles

Ambient Temperature Range

-40 to +85 °C

Dimensions (W × D × H)

12.4 × 25 × 29 mm

Pin Pitch

5.0 mm

Pin Length (Plug-in)

5.2 mm

Mounting

PCB mount or plug-in (95 Series sockets)

Flux Proof Version

RT II

Compliance

Glow wire test per EN 60335-1
