Finder 8PMR12VAC 12V AC 8 Pin 8A 2 Pole Miniature PCB Relay

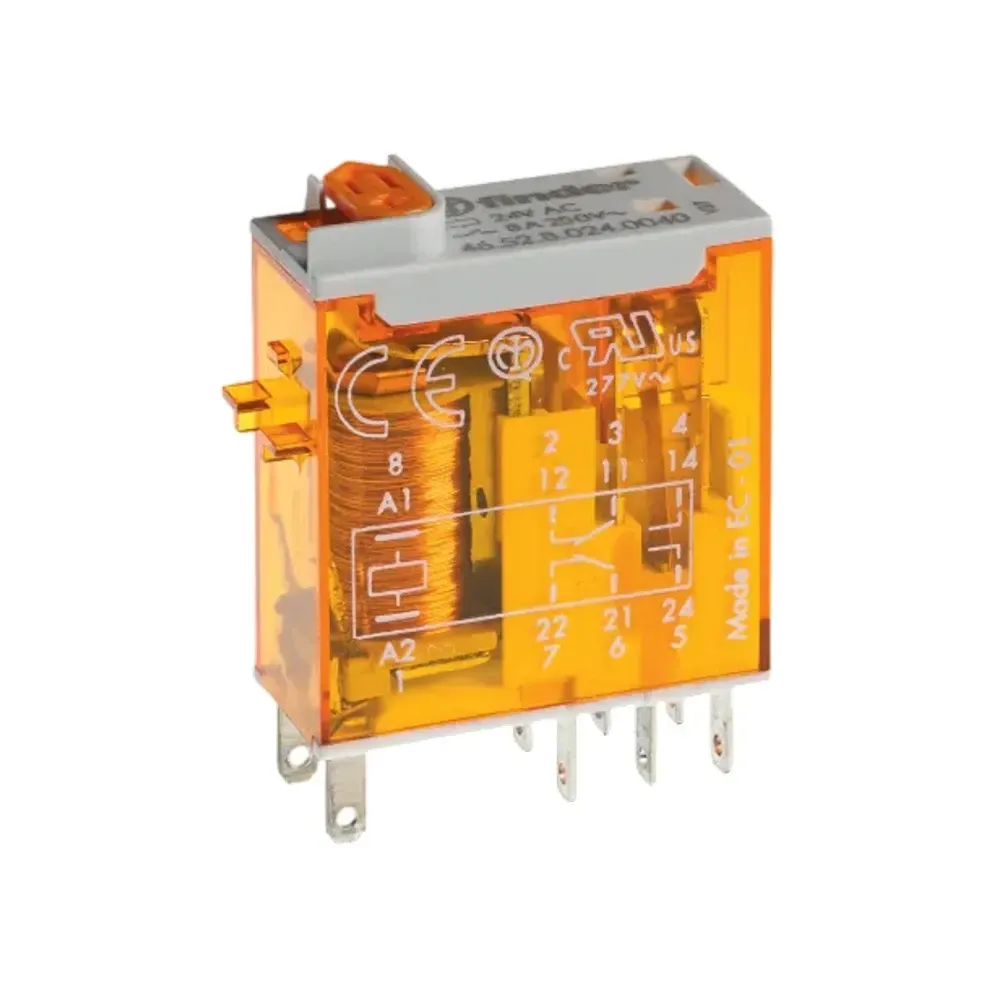

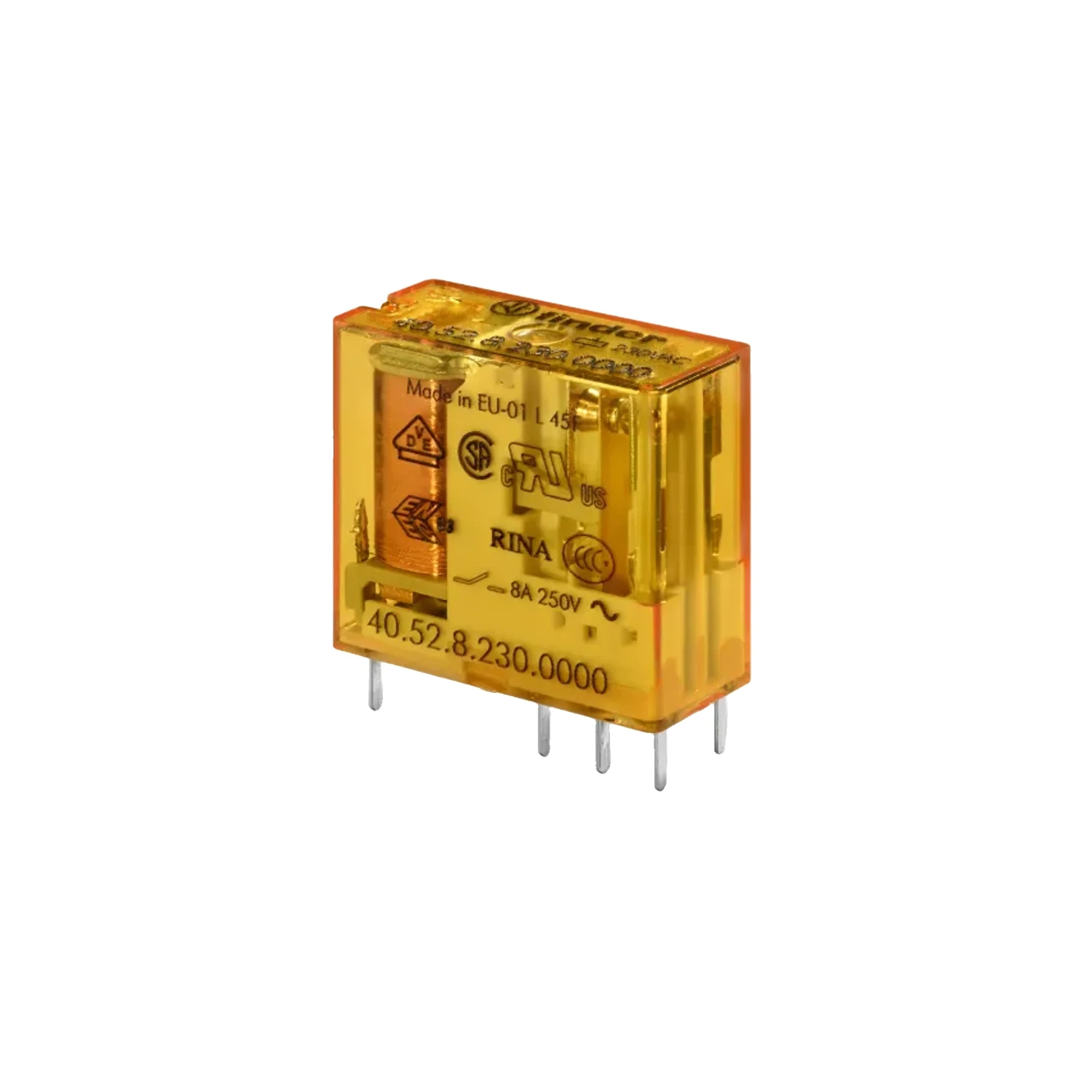

Photo is representative

Finder 8PMR12VAC 12V AC 8 Pin 8A 2 Pole Miniature PCB Relay

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 8PMR12VAC
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £7.03

Gross price

£8.43

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Miniature PCB relay from Finder with a 12V AC coil. Suits PCB mounting or plug-in installation using 95 Series sockets. 5mm pin pitch, flux proof (RT II) construction.

Two pole changeover contacts rated 8A at 250V AC with AgNi contact material. 6kV insulation between coil and contacts.

  • Coil operating range: 9.6–13.2V AC
  • Must drop-out voltage: 2.4V
  • Electrical life: 100,000 cycles
  • Ambient temp range: −40 to +85°C
  • Compliant with EN 60335-1 glow wire test
Specifications

Coil Type

AC

Nominal Coil Voltage

12V AC

Operating Range AC

9.6–13.2V

Holding Voltage

9.6V

Must Drop-out Voltage

2.4V

Rated Power AC

1.2 VA

Coil Resistance

80 Ω

Coil Consumption

90 mA

Contact Configuration

2 pole CO (nPDT)

Contact Rating

8A at 250V AC

Contact Material

AgNi

Coil to Contact Insulation

6 kV

Electrical Life

100,000 cycles

Pin Pitch

5 mm

Pin Length

5.2 mm (plug-in)

Mounting Type

PCB mount or plug-in (95 Series sockets)

Dimensions

12.4 × 25 × 29 mm

Ambient Temperature Range

−40 to +85°C

Version

Flux proof (RT II)

Compliance

EN 60335-1 glow wire test
