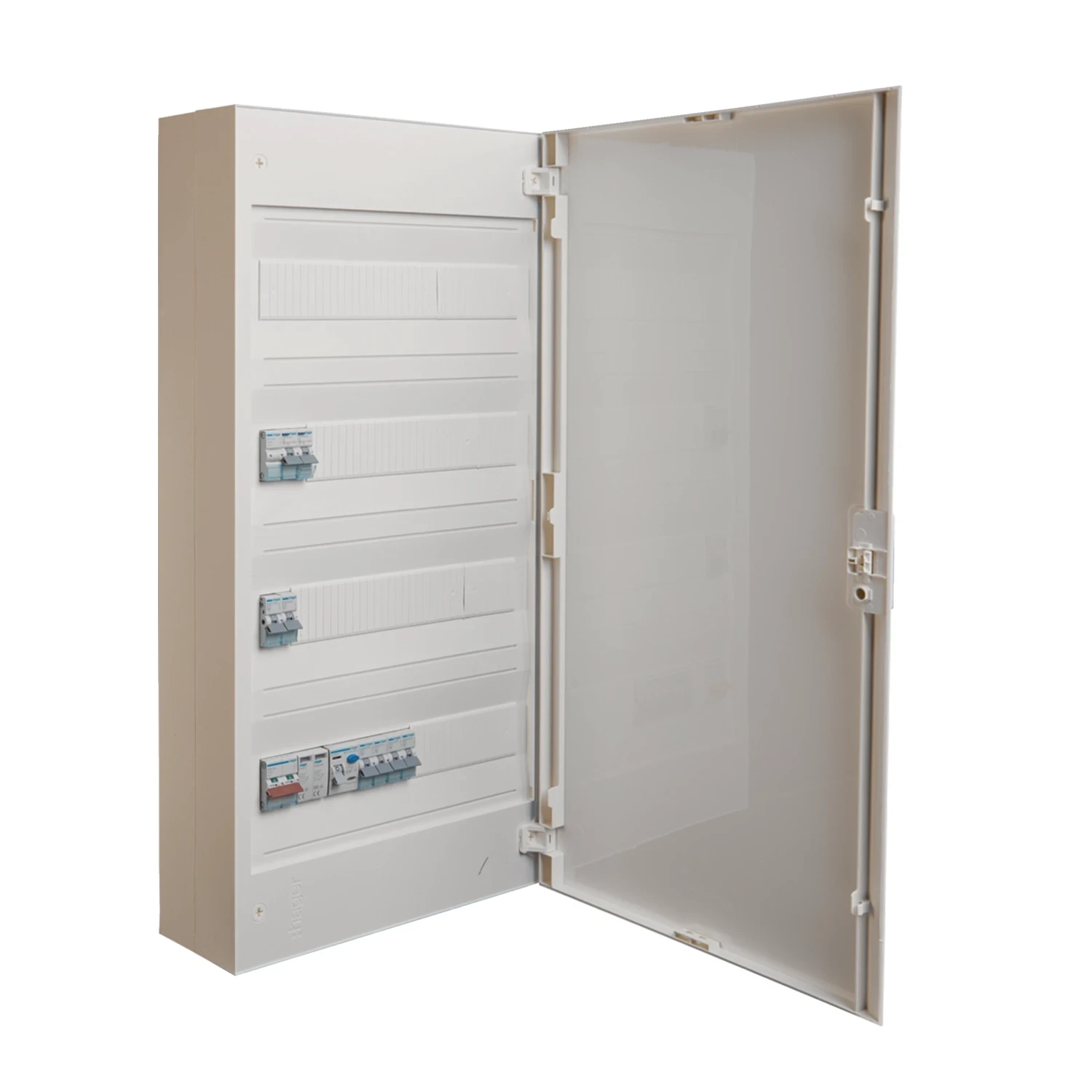

Hager Vega Consumer Unit 4 Row 72 Module Surface Mount SPD 80A IP40

Photo is representative

Hager Vega Consumer Unit 4 Row 72 Module Surface Mount SPD 80A IP40

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VBE108101PSPD
GTIN —
Stock status: 6 in stock

priced individually

More arriving soon

Net price: £396.88

Gross price

£476.25

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager Vega 4-row, 72-module surface mount consumer unit rated at 80A. Pre-wired and supplied ready to fit — includes SPD, a 2P 100A isolator, 2P 80A RCCB, two 1P 6A RCBOs, four 1P 20A MCBs, one 1P 32A MCB, and one 1P 10A MCB.

White interlock plain door, RAL9010. IP40 rated, IK07 impact resistance. Not suitable for outdoor use.

  • 72 modules across 4 rows
  • 80A rated current
  • 145 mm depth, 750 mm H x 370 mm W
  • Isolation class II
  • Integral surge protection device (SPD) included
Specifications

Rated Current

80 A

Number of Modules

72

Number of Rows

4

Mounting

Surface mounting

IP Rating

IP40

Impact Resistance

IK07

Protection Class

Isolation class II

Overvoltage Protection

Yes

Door

Interlock Plain White

Colour

White, RAL9010

Height

750 mm

Width

370 mm

Depth

145 mm

Outdoor Use

No

What's included

1x SBR290 2P 100A Isolator Switch

1x CD285U 2P 100A RCCB

4x MBN120W - B20 6kA MCB 1M

1x MBN132W - B32 6kA MCB 1M

1x MBN110W - B10 6kA MCB 1M

2x ADA306G - B6 6kA RCBO 1M

Surge Protection

Hager Electrical Distribution

Circuit Overload & Short Circuit Protection

Hager MCBs provide reliable protection for individual circuits against overloads and short circuits. Available in Type B and Type C characteristics to suit both domestic and commercial installations, they are designed for straightforward DIN rail mounting inside Hager consumer units and distribution boards. Choose the correct amperage rating to match the circuit load — from lighting and sockets through to high-demand appliances.

browse all MCBs

Per-Circuit Earth Fault & Overcurrent Protection

Hager RCBOs combine the functions of an MCB and an RCD into a single compact module, providing both overcurrent protection and earth leakage detection on a per-circuit basis. Operating at 30mA sensitivity, they disconnect the circuit instantly if a potentially dangerous earth fault is detected — making them the preferred choice for 18th Edition compliant installations. Each RCBO occupies a single way, keeping your board neat and allowing faults to be isolated without disrupting other circuits.

browse all RCBOs
