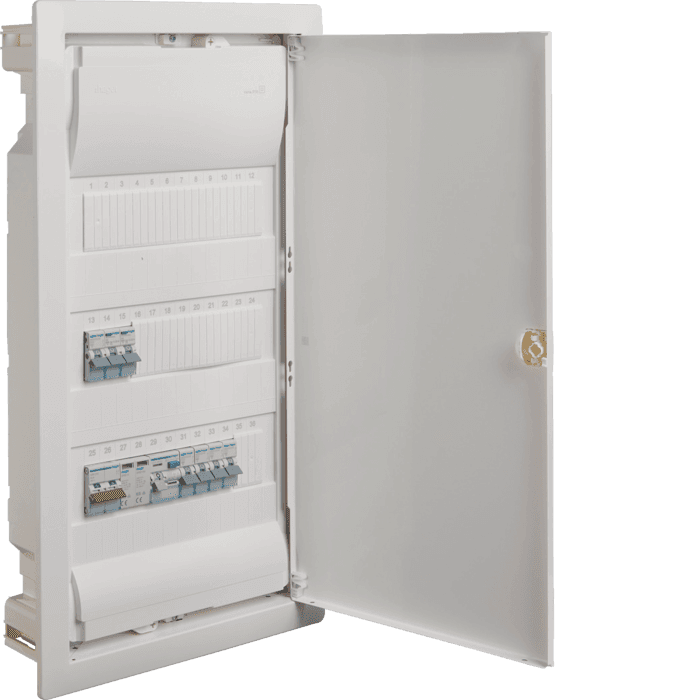

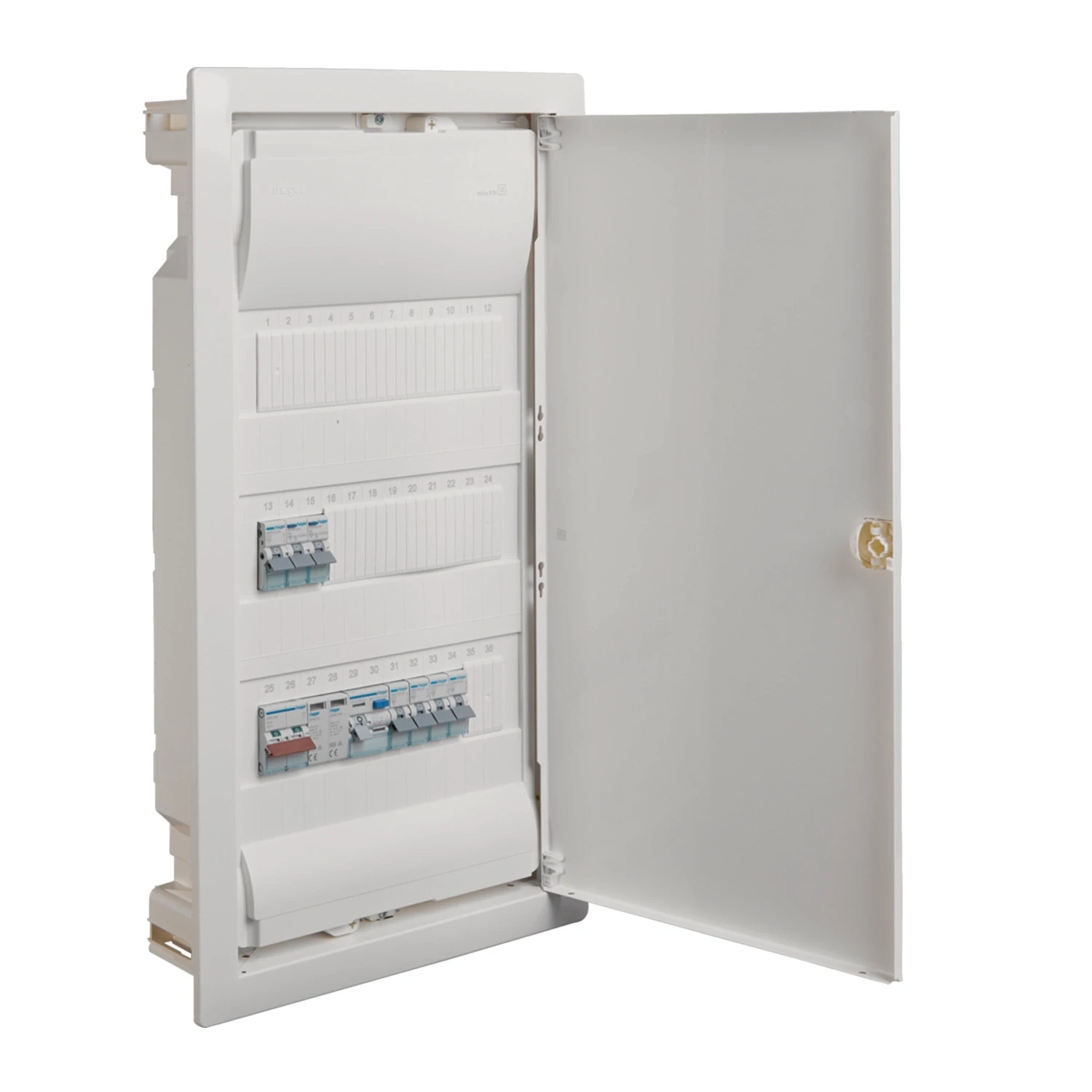

Hager Recessed Surge Protect 3 Row 36 Module White Consumer Unit
The Hager VF9101SPD is a flush-mounted 3 row consumer unit featuring 36 module capacity, integrated surge protection, and pre-installed circuit protection devices including RCBOs, RCD, and MCBs. Designed for modern residential and commercial setups, it provides safe, reliable power distribution in a sleek, pure white finish.
Features include:
- Recessed consumer unit with 3 rows and 36 modules
- Includes SPD (Surge Protection Device) for circuit safety
- Pre-fitted with: 2x 6A RCBOs, 1x RCD, 4x 20A MCBs, 1x 32A MCB
- 63A Rated current
- Flush-mount design for discreet installation
- Pure white RAL9010 plastic housing (Impact Rating IK07)
- IP30 protection with Isolation Class II
- Neutral and earthing terminal blocks included
- Snap-on lock door (non-transparent)
- Glow wire tested to 650°C for safety compliance
- Dimensions: 630.5mm (H) x 348mm (W) x 94.5mm (D)
- Built-in width: 314mm
- Built-in depth: 89mm
Stock Code:
VF9101SPD
In stock
Price 340.18 £
incl. VAT, 20%
priced individually
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
SKU
VF9101SPD
-
Rows
3
-
Colour
Pure White
-
Depth
94.5 mm
-
Width
348 mm
-
Height
630.5 mm
-
Modules
36
-
Material
Plastic
-
Fixing Mode
Flush-Mounting
-
RAL Colour Number
9010
-
Door Closing Type
Latch
-
IP Rating
IP30
