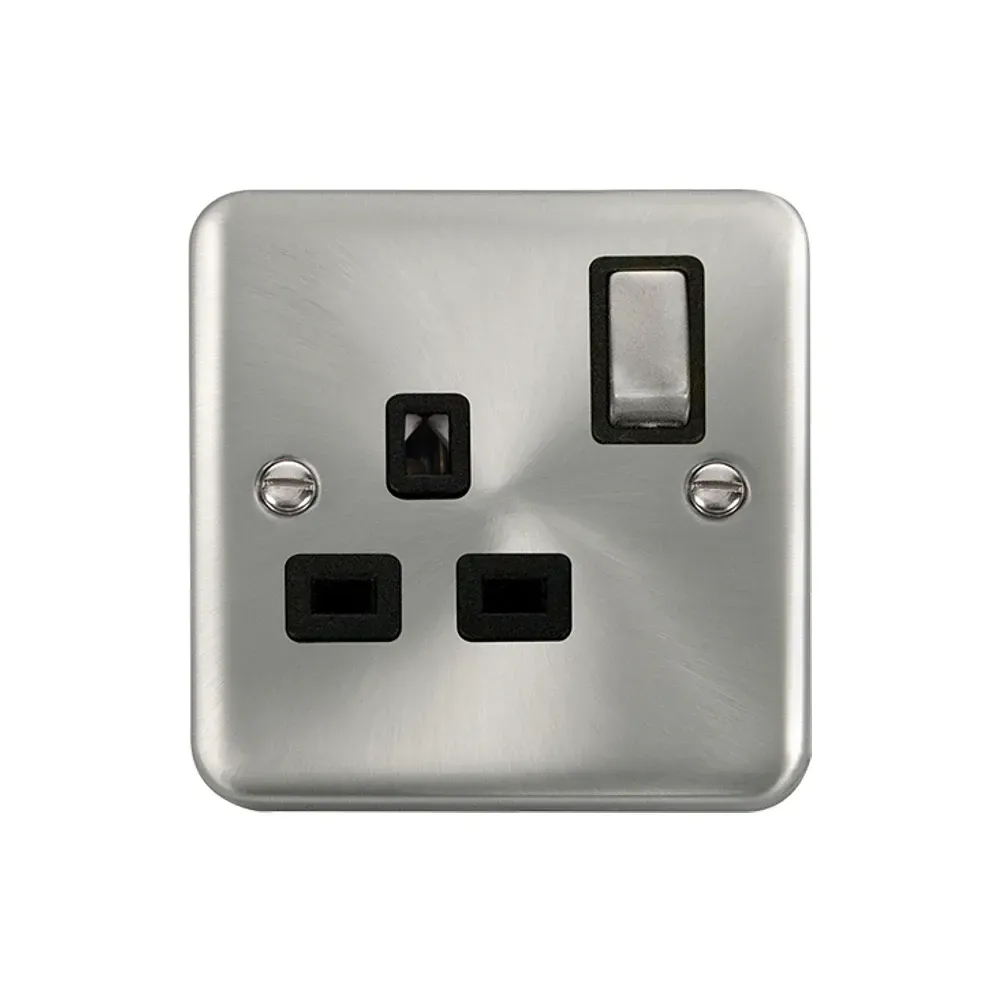

Click Deco+ Satin Chrome 13A Single Double Pole Switched Socket Black BS1363

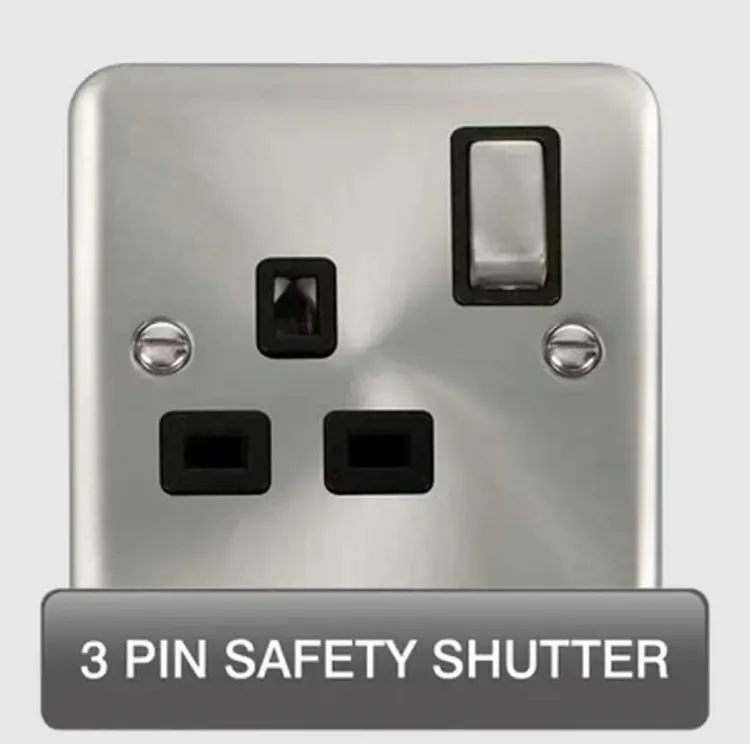

Click Deco Plus 13A single gang double pole switched socket with 3-pin safety shuttered design. Features satin chrome finish with black insert, screw terminals with 2Nm torque capacity. Designed for standard 25mm back box installation with 60.3mm fixing centres. Accepts 3 x 2.5mm² or 2 x 4mm² conductor capacity on brass terminals. BS 1363-2 compliant for professional electrical installations. IP20 rated stainless steel front plate with urea insert housing. Operating temperature range -5°C to +40°C with 20-year warranty. Terminal size Ø5mm with captive screw design for secure connections. Requires isolated mains supply and bare earth cable sleeving during installation.
Product Information
Product Features
Applications & Uses
Domestic Installation
Ideal for kitchen, utility room and workshop applications requiring double pole isolation control with safety shuttered protection.
Ring Circuit
BS 1363-2 compliance ensures suitability for standard domestic ring circuit installations with full electrical isolation capability.
Installation Guidelines
Terminal Connection
Ø5mm screw terminals with 2Nm torque capacity. Accepts 3 x 2.5mm² or 2 x 4mm² conductors with brass terminal construction.
Mounting Requirements
25mm minimum back box depth with 60.3mm horizontal fixing centres. Standard metal back box compatible for professional installation.
Safety Procedures
Isolated mains supply mandatory. Bare earth cables must be sleeved. Safety shutters require full 3-pin engagement for operation.
Standards & Safety
Compliance Standards
BS 1363-2 compliant for UK electrical installations. IP20 ingress protection rating suitable for indoor domestic applications.
Operating Parameters
250V operating voltage at 50Hz frequency. Temperature range -5°C to +40°C with 20-year manufacturer warranty coverage.
Frequently Asked Questions
-
What back box depth is required for this switched socket?
Minimum 25mm back box depth required. Standard metal back boxes with 60.3mm horizontal fixing centres are suitable for professional installation.
-
What cable capacity do the screw terminals accept?
Terminals accept 3 x 2.5mm² or 2 x 4mm² conductors. Terminal torque setting is 2Nm with Ø5mm terminal size for secure connections.
-
Is this socket suitable for ring circuit installation?
Yes, BS 1363-2 compliant for ring circuits. Double pole switching provides full isolation. Safety shutters require proper 3-pin engagement for operation.
-
What installation precautions are required?
Isolated mains supply required before installation. Bare earth cables must be sleeved. Terminal access requires appropriate screwdriver for brass terminals.
