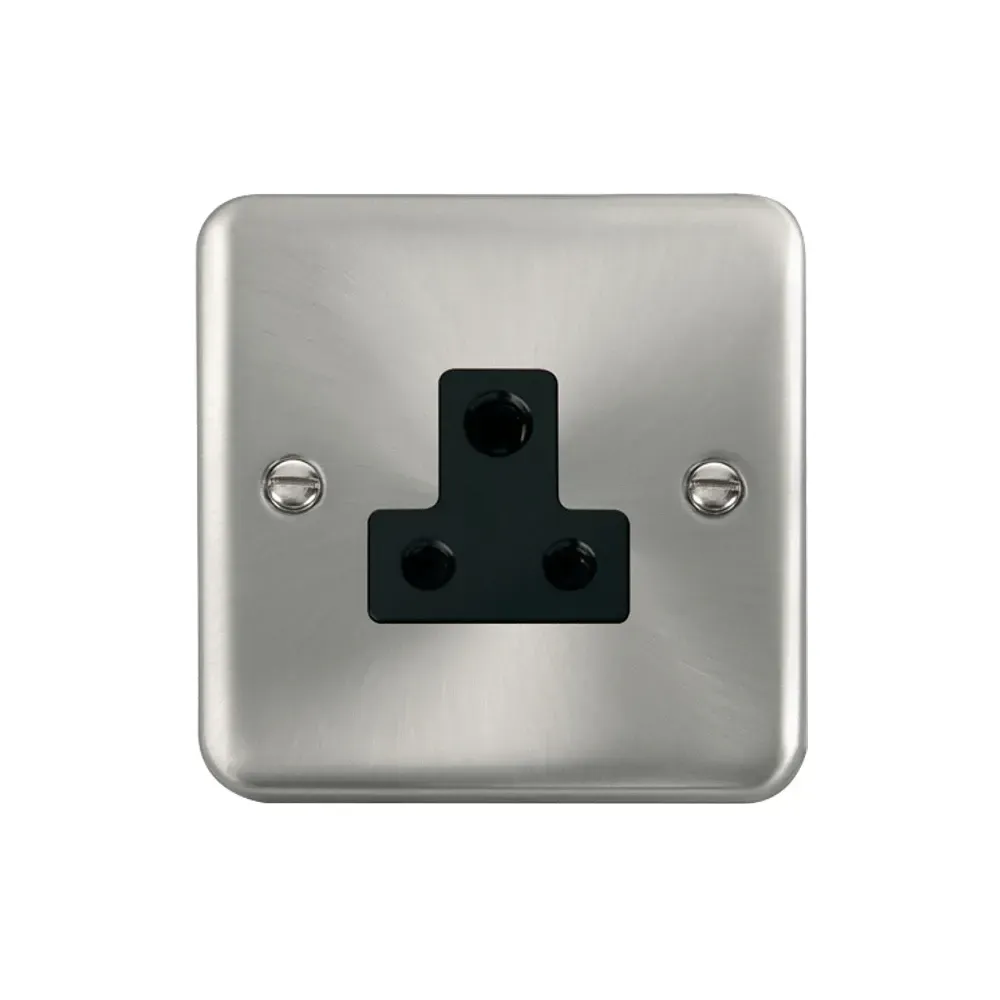

Click DECO+ satin chrome 5A round pin socket outlet

Photo is representative

Click DECO+ Satin Chrome 5A Round Pin Socket 1 Gang Black DPSC038BK BS546

Click DECO+ 5A round pin socket outlet in premium satin chrome with black insert. Features captive screw terminals for secure connections and twin cable capacity up to 2.5mm². Suitable for lighting circuits and small appliances requiring 5A rated supply. 25mm minimum backbox depth with standard 60.3mm fixing centres for straightforward installation. Complies with BS546 standards with IP20 rating for indoor applications. Rounded profile design provides contemporary styling with durable construction.

Product Information

Stock Code DPSC038BK
MPN
GTIN
Stock status: In stock
Price: £12.73
incl. VAT, 20% priced individually

Product Features

Current Rating 5A
Socket Type Round Pin BS546
Gang Configuration 1 Gang
Operating Voltage 250V AC 50Hz
Terminal Type Captive Screw
Terminal Capacity 4 x 1.5mm² or 3 x 2.5mm²
Terminal Size Ø5mm
Mounting Depth 25mm minimum backbox
Fixing Centres 60.3mm horizontal
Standards Compliance BS546
IP Rating IP20
Finish Satin Chrome with Black Insert
Plate Dimensions 88 x 88 x 8mm
Warranty 20 Years

Installation Requirements

Backbox Specifications

Requires minimum 25mm depth metal backbox with standard 60.3mm horizontal fixing centres for secure mounting.

Terminal Configuration

Captive screw terminals with Ø5mm size accommodate multiple cable combinations for flexible circuit connections.

Cable Management

Terminal capacity handles 4 x 1.5mm² or 3 x 2.5mm² cables with 1.2Nm torque specification.

Professional Applications

Lighting Circuits

Perfect for dedicated lighting circuits requiring 5A capacity under BS546 round pin standard compliance.

Small Appliances

Suitable for table lamps, desk equipment and portable appliances within 5A current rating limits.

Specialized Equipment

Ideal for equipment specifically designed for round pin connections requiring controlled 5A supply.

Standards & Safety

BS546 Compliance

Fully compliant with BS546 standard for round pin socket outlets ensuring professional installation requirements.

IP20 Rating

IP20 ingress protection suitable for indoor dry locations with protection against finger contact.

Quality Assurance

20 year warranty demonstrates Click's confidence in construction quality and long-term performance reliability.

Frequently Asked Questions

  • What cable capacity does this 5A socket accept?

    Terminal capacity is 4 x 1.5mm² or 3 x 2.5mm² cables with captive screw terminals for secure connection.

  • What backbox depth is required for installation?

    Minimum 25mm metal backbox depth required with standard 60.3mm horizontal fixing centres for mounting.

  • Is this socket suitable for outdoor use?

    No, IP20 rating makes this suitable for indoor dry locations only. Use IP66 rated sockets outdoors.

  • What applications suit 5A round pin sockets?

    Ideal for lighting circuits, table lamps, small appliances and equipment requiring 5A supply under BS546 standard.

  • What torque setting for terminal connections?

    Terminal screw torque value is 1.2Nm for secure electrical connection without overtightening damage.
