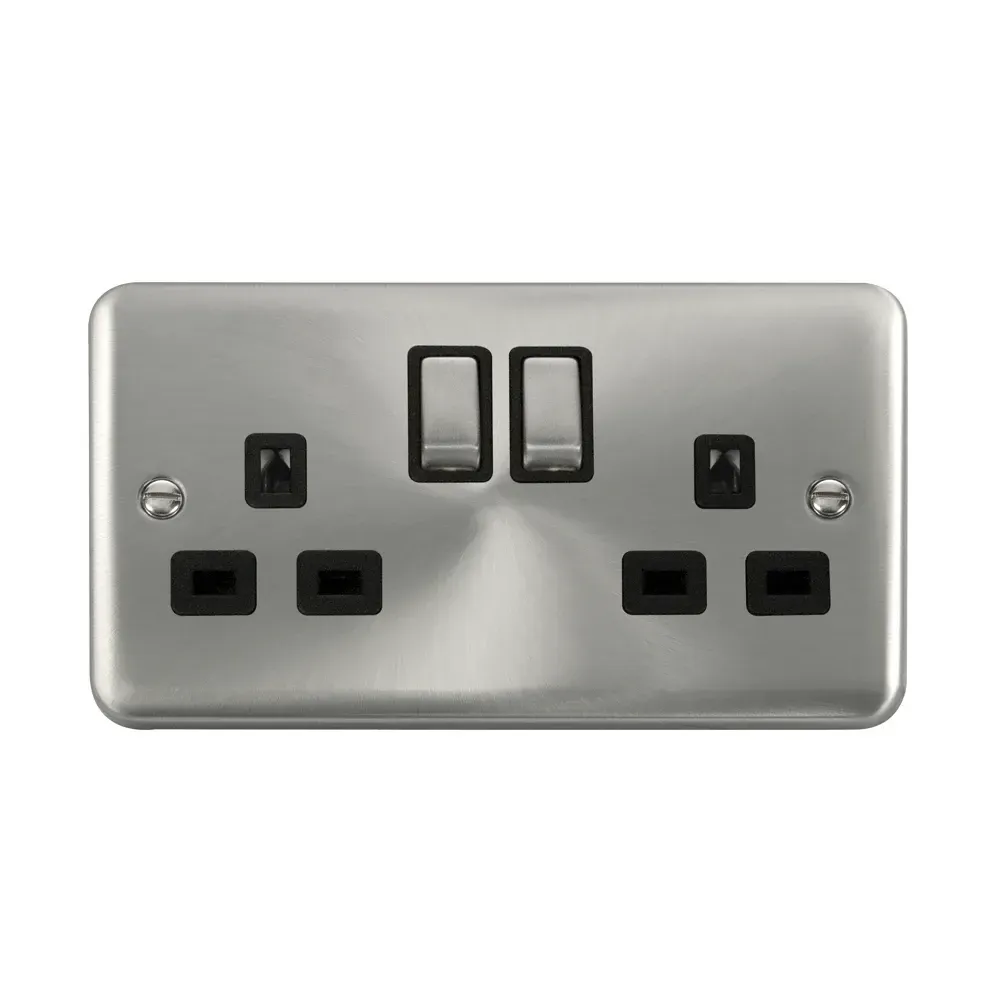

Click Ingot 2 gang double pole switched socket satin chrome

Photo is representative

Click Deco+ Satin Chrome 13A 2 Gang Double Pole Switched Socket BS1363

Click Deco Plus 13A double gang switched socket with double pole switching for enhanced safety. Features captive screw terminals accommodating 3 x 2.5mm² or 2 x 4mm² cables with angled access for efficient cable dressing. Twin earth terminals ensure secure earthing connection. Safety shuttered design requires all three BS 1363 pins for proper engagement. Premium satin chrome finish with black insert provides professional aesthetics. Requires 25mm minimum back box depth for standard installation. Manufactured to BS 1363-2 standards with 20-year warranty. Suitable for ring circuits up to 250V AC operation.

Product Information

Stock Code DPSC1536BK
MPN
GTIN
Stock status: In stock
Price: £18.75
incl. VAT, 20% priced individually

Product Features

Current Rating 13A
Gang Configuration 2 Gang
Switching Type Double Pole Switched
Terminal Type Captive Screw Terminals
Terminal Capacity 3 x 2.5mm² or 2 x 4mm²
Terminal Size Ø5mm
Terminal Torque 2Nm
Earth Configuration Twin Earth Terminals
Safety Features 3 Pin Safety Shuttered
Mounting Depth 25mm Minimum Back Box
Finish Satin Chrome with Black Insert
Standards Compliance BS 1363-2
IP Rating IP20
Operating Voltage 250V AC 50Hz

Installation Guidelines

Terminal Configuration

Captive screw terminals with angled access facilitate efficient cable dressing in 25mm back boxes. Twin earth terminals ensure secure earthing.

Cable Requirements

Suitable for 2.5mm² twin and earth cables on 32A ring circuits. Terminal capacity accommodates multiple cable connections for through wiring.

Mounting Specifications

Standard 146mm x 88mm plate dimensions fit existing back box installations. Fixing centres at 120.6mm horizontal spacing for secure mounting.

Technical Specifications

Material Construction

Stainless steel front plate with brass terminals and silver overlay copper/brass contacts for reliable electrical performance and durability.

Operating Parameters

Rated for 250V AC 50Hz operation with temperature range -5°C to +40°C. IP20 ingress protection suitable for indoor applications.

Safety Features

Double pole switching isolates live and neutral. Safety shutters prevent accidental contact. BS 1363-2 compliance ensures electrical safety standards.

Professional Applications

Commercial Installations

Suitable for office environments, retail spaces, and commercial buildings requiring reliable 13A socket provision with enhanced switching control.

Domestic Applications

Ideal for kitchen, utility room, and workshop installations where double pole switching provides additional safety for high-power appliances.

Maintenance Benefits

Double pole switching allows complete isolation for appliance servicing. Quality materials ensure long-term reliability with 20-year warranty coverage.

Frequently Asked Questions

  • What back box depth is required for installation?

    Requires minimum 25mm back box depth. Standard metal back boxes suitable for ring circuit installation with 2.5mm² T&E cables.

  • How many cables can the terminals accommodate?

    Captive screw terminals accept 3 x 2.5mm² cables or 2 x 4mm² cables. Twin earth terminals provide secure earthing connection.

  • What is the difference between single pole and double pole switching?

    Double pole switching isolates both live and neutral conductors for enhanced safety, particularly useful for fixed appliances and high-power loads.

  • Are the safety shutters compliant with current standards?

    Yes, safety shutters require all three BS 1363 plug pins to engage correctly, preventing accidental contact with live parts.

  • What torque setting should be used for terminal connections?

    Terminal screws should be tightened to 2Nm torque setting. Use appropriate torque screwdriver to prevent over-tightening and conductor damage.
