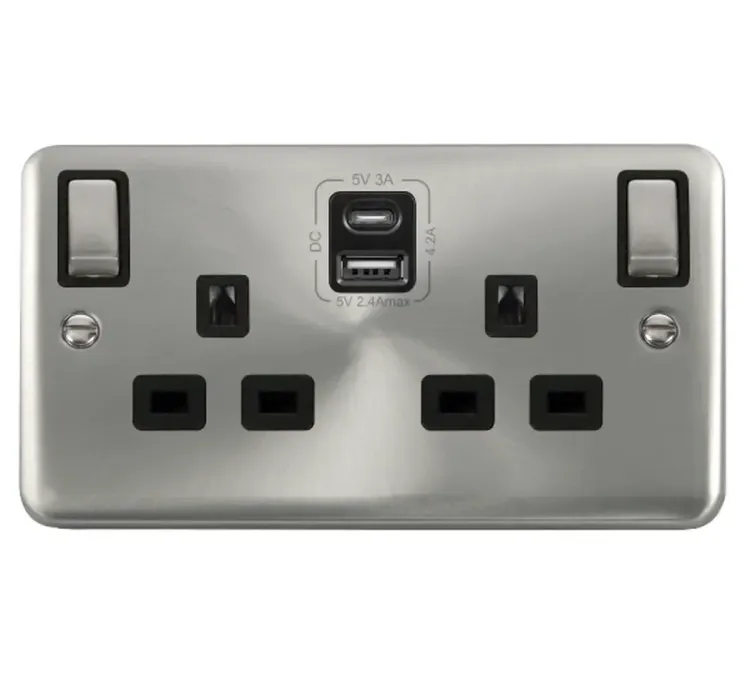

Photo is representative

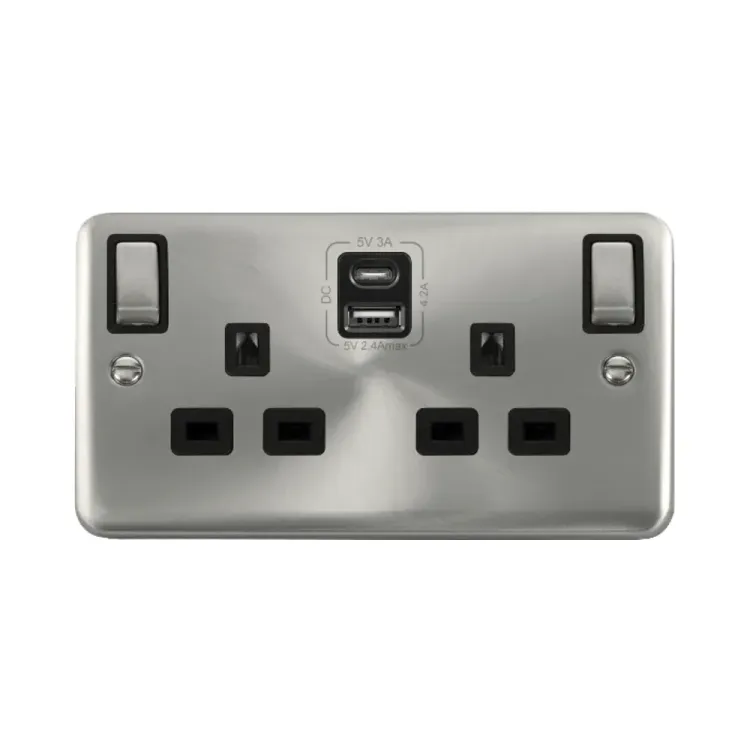

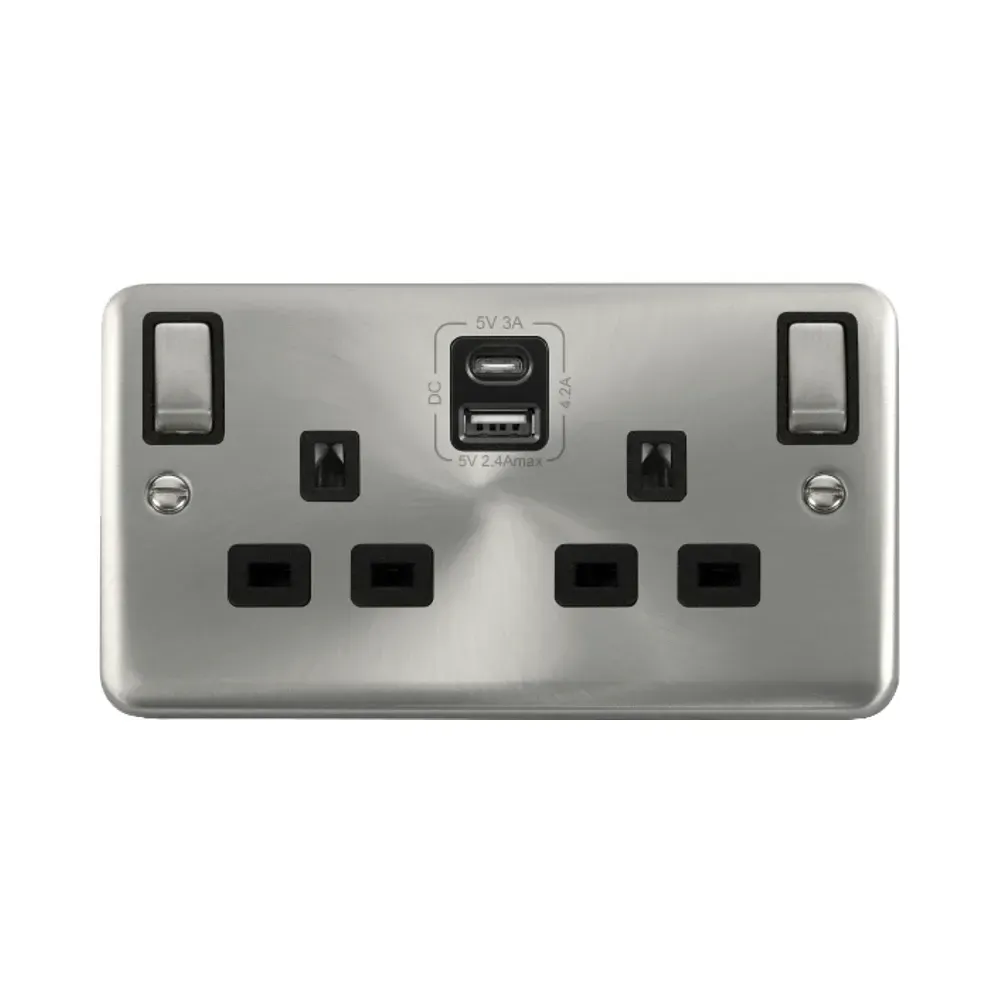

Click Deco+ Black 13A Double Gang Switched Socket USB-A & USB-C, DPSC586BK
Click Deco Plus DPSC586BK 13A double gang switched socket with integrated USB Type A and USB-C charging ports. Total USB load capacity 4.2A with independent charging capability up to 3A Type C. Features captive screw terminals with twin earth facility for secure installation. Requires minimum 25mm backbox depth. Complies with BS 1363-2: 2016 standards and BS EN IEC 62368-1 safety requirements. IP20 rated for indoor use. 20-year product warranty with 2-year electronics coverage. Terminal capacity accommodates 3 x 2.5mm² or 2 x 4mm² conductors with 1.2Nm torque specification. Safety shuttered design with single pole switching for reliable circuit control. Black finish suits modern electrical installations.
Product Information
Product Features
Installation Requirements
Backbox Specification
Minimum 25mm depth metal backbox required with 120.6mm horizontal fixing centres. Twin earth terminals accommodate standard T&E cable installations.
Terminal Configuration
Captive screw terminals with Ø5mm size accept 3 x 2.5mm² or 2 x 4mm² conductors. 1.2Nm torque specification ensures secure connections.
Cable Management
Twin earth terminal facility provides separate earth connections for ring circuit continuity. Suitable for standard 2.5mm² T&E cable installations.
USB Charging Features
Dual Port Design
USB Type A and USB-C ports with 4.2A total load capacity. Independent charging provides USB-C 3A and USB-A 2.4A maximum output.
Smart Load Management
During simultaneous charging USB-C maintains 3A while USB-A reduces to 1.2A. 5V DC output with intelligent current distribution system.
Safety Integration
USB charging circuits comply with BS EN 62680-1-1 standards. Integrated with socket safety shutters and single pole switching control.
Standards & Safety
- BS1363 Compliance Full compliance with BS 1363-2: 2016 +A1: 2018 for 13A socket outlets. Features mandatory 3-pin safety shuttered design.
- Electronic Safety USB circuits certified to BS EN IEC 62368-1 and BS EN 62680-1-1 standards. IP20 rating suitable for indoor installation applications.
Frequently Asked Questions
-
What backbox depth is required for the Click DPSC586BK socket?
Minimum 25mm backbox depth required. Plate dimensions are 146 x 88 x 8mm (149 x 91 x 9mm with gasket). Fixing centres are 120.6mm horizontal spacing.
-
What is the maximum USB charging capacity?
Total USB load is 4.2A maximum. USB-C provides up to 3A, USB-A provides up to 2.4A. During dual charging: USB-C maintains 3A, USB-A reduces to 1.2A.
-
What terminal specifications are used for connections?
Captive screw terminals with Ø5mm size and 1.2Nm torque specification. Terminal capacity accommodates 3 x 2.5mm² or 2 x 4mm² conductors with twin earth facility.
-
Does this socket comply with current BS1363 standards?
Yes, fully complies with BS 1363-2: 2016 +A1: 2018, BS EN IEC 62368-1, and BS EN 62680-1-1. Features 3-pin safety shuttered design for IP20 rating.
-
What warranty coverage is provided?
20-year product warranty with separate 2-year electronics warranty coverage. Includes UK Design Registration 3015621 for quality assurance and professional confidence.
