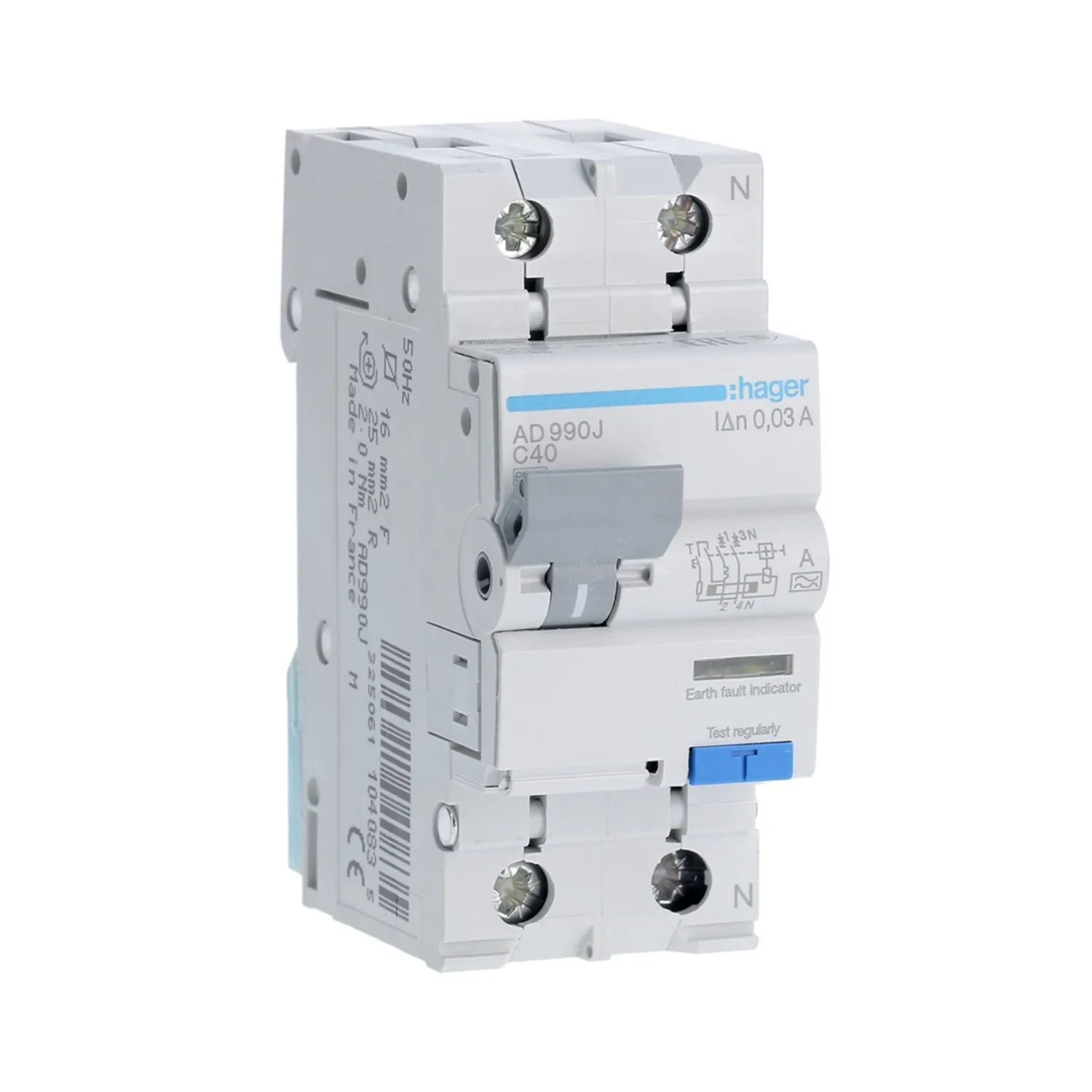

Hager RCBO 1P+N 40A 30mA C Curve Type A

Photo is representative

Hager RCBO 1P+N 40A C-curve 30mA Type A 6kA 2 Module

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code AD990J
GTIN 3250611040835
Stock status: In stock

priced individually

Net price: £30.04

Gross price

£36.05

Hager AD990J RCBO - 40A 1P+N with C-curve and 30mA Type A residual current protection. Straight drop-in for domestic and light commercial consumer units. Takes up 2 modules on DIN rail.

  • 6kA breaking capacity to IEC 60898-1
  • 240V AC rated voltage
  • IP20 protection rating
  • Operating temperature: -25°C to +40°C
  • Screw terminal top, Biconnect bottom
Specifications

Type

RCBO

Poles

1P+N

Trip Curve

C

Current Rating

40A

Residual Current

30mA

Residual Current Type

A

Breaking Capacity

6kA

Rated Voltage

240V AC

Insulation Voltage

500V

Impulse Withstand

4000V

Frequency

50Hz

IP Rating

IP20

Module Width

2 modules

Power Loss

11.10W

Overvoltage Category

III (IEC 60947-1)

Max Altitude

2000m

Energy Limitation Class

I²t Class 3

Standard

IEC 60898-1

Connection Type

Screw terminal (top) / Biconnect (bottom)

Flexible Conductor

1–16 mm²

Rigid Conductor

1–25 mm²

Tightening Torque

2.10 Nm

Height

83mm

Width

35mm

Depth

68mm

Operating Temperature

-25 to +40 °C

Storage Temperature

-25 to +70 °C

RoHS Compliant

Yes

Documents

datasheet Hager AD990J Datasheet
