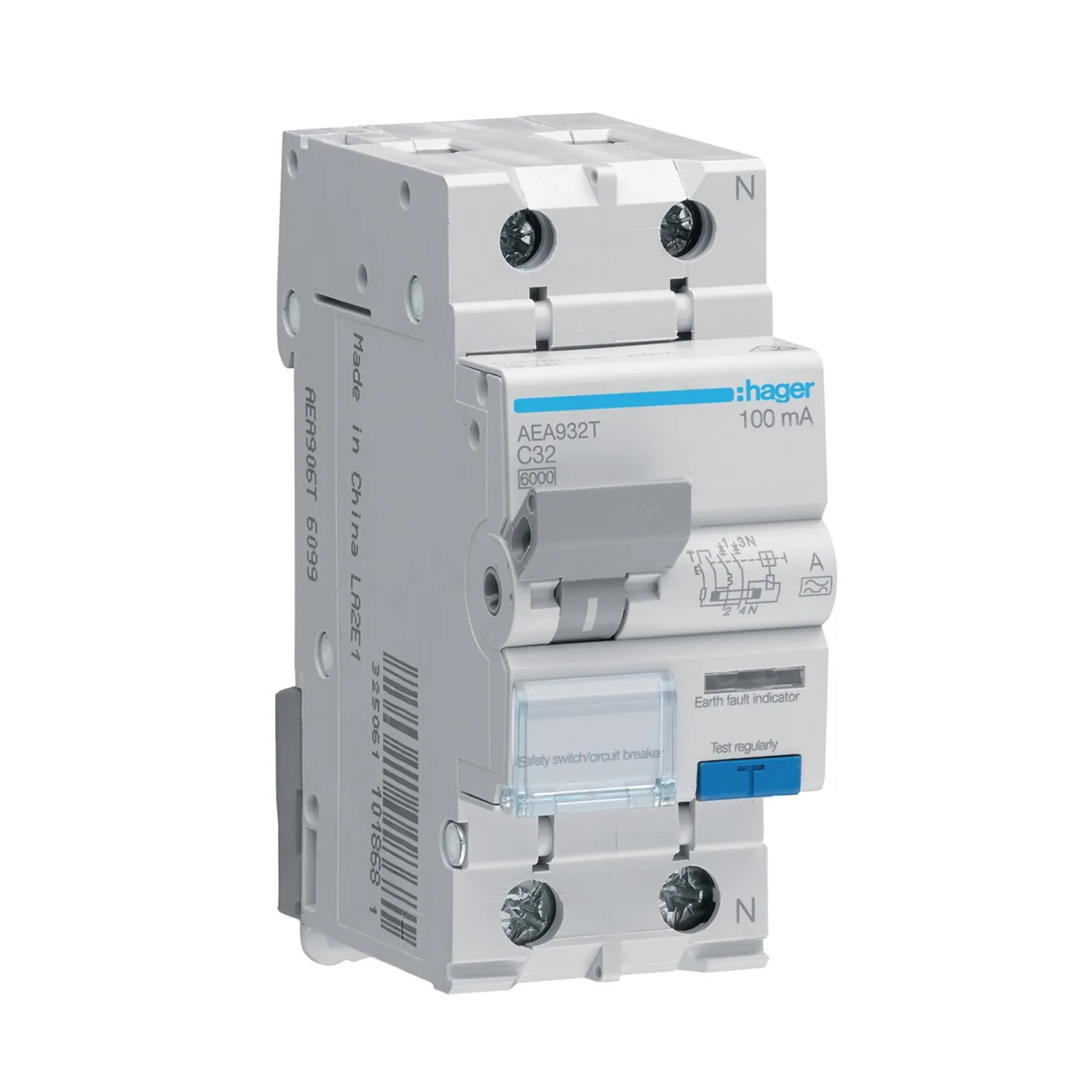

Hager RCBO 1P+N 32A 100mA C Curve Type A

Photo is representative

Hager RCBO 1P+N 32A C-Curve 6kA 100mA Type A 2 Module

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code AEA932T
GTIN
Stock status: In stock

priced individually

More arriving soon

Net price: £43.23

Gross price

£51.88

Hager RCBO 1P+N 32A with C-curve trip. Solid RCBO for final circuits needing combined overload and earth fault protection. Clips straight onto DIN rail, takes up 2 modules.

  • 6kA breaking capacity to IEC 60898-1
  • 100mA Type A residual current protection
  • 230-240V AC rated voltage
  • Operating range: -25°C to +40°C
  • Screw terminal top, Biconnect bottom
Specifications

Current Rating

32 A

Voltage

230–240 V AC

Breaking Capacity

6 kA

Trip Curve

C

Poles

1P+N

Residual Current

100 mA

Residual Current Type

A

IP Rating

IP20

Module Width

2 modules (35mm)

Operating Temp

-25 to +40 °C

Frequency

50 Hz

Mounting

DIN rail

Connection Type

Screw terminal (top) / Biconnect (bottom)

Flexible Conductor

1–16 mm²

Rigid Conductor

1–25 mm²

Standard

IEC 60898-1
