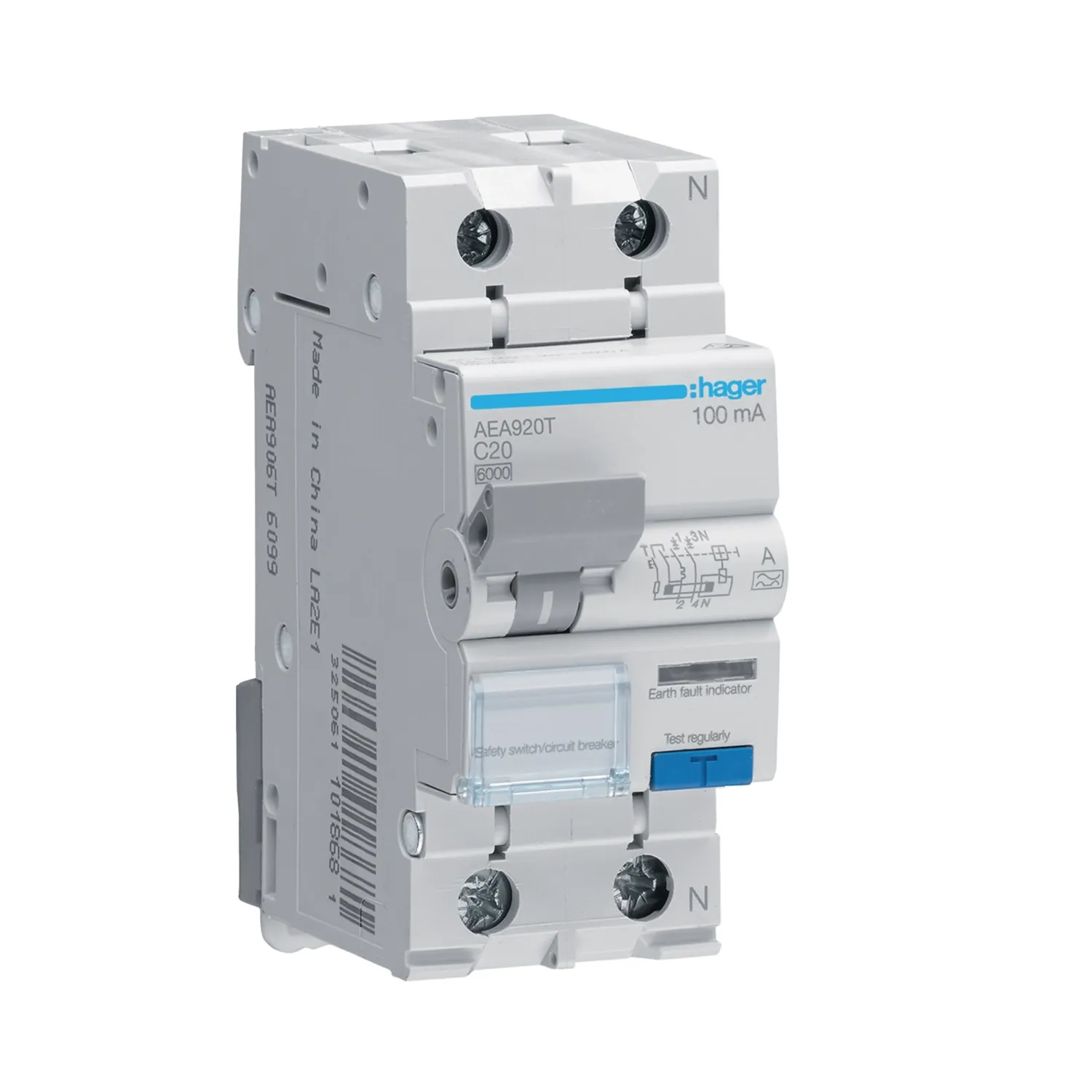

Hager RCBO 1P+N 20A 100mA C Curve Type A

Photo is representative

Hager RCBO 1P+N 6kA C-20A 100mA Type A 2 Module

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code AEA920T
GTIN
Stock status: In stock

priced individually

Net price: £41.76

Gross price

£50.12

Hager RCBO 1P+N 20A with C-curve and 100mA Type A RCD protection. Solid RCBO for final circuits needing combined overload and earth fault protection. Clips straight onto DIN rail, takes up 2 modules.

  • 6kA breaking capacity to IEC 60898-1
  • 230-240V AC rated voltage
  • IP20 enclosure rating
  • Operating range: -25°C to +40°C
  • Screw terminal top, Biconnect bottom
Specifications

Type

RCBO

Poles

1P+N

Trip Curve

C

Current Rating

20 A

Residual Current

100 mA

Residual Current Type

A

Breaking Capacity

6 kA

Voltage

230–240 V AC

Insulation Voltage

500 V

Impulse Withstand

4000 V

Frequency

50 Hz

IP Rating

IP20

Module Width

2 modules (35mm)

Power Loss

5.60 W

Overvoltage Category

III (IEC 60947-1)

Max Altitude

2000 m

Energy Limitation Class

I²t Class 3

Mounting

DIN rail

Standard

IEC 60898-1

Flexible Conductor

1–16 mm²

Rigid Conductor

1–25 mm²

Tightening Torque

2.10 Nm

Height

83 mm

Width

35 mm

Depth

68 mm

Operating Temperature

-25 to +40 °C

Storage Temperature

-25 to +70 °C

RoHS Compliant

Yes
