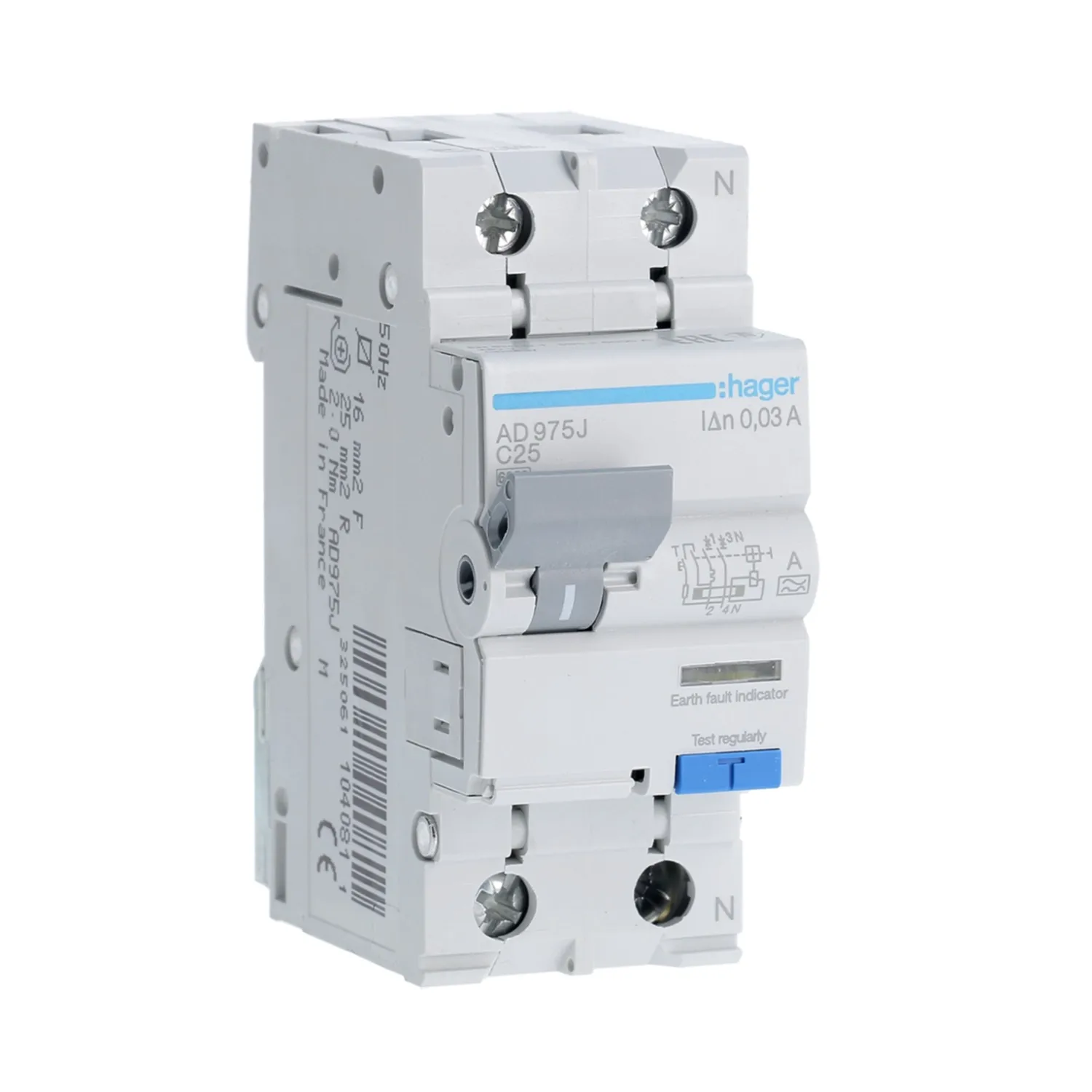

Hager RCBO 1P+N 25A 30mA C Curve Type A

Photo is representative

Hager RCBO 1P+N 25A C-Curve 30mA Type A 6kA 2 Module

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code AD975J
GTIN 3250611040811
Stock status: In stock

priced individually

More arriving soon

Net price: £30.04

Gross price

£36.05

Hager RCBO 1P+N 25A with C-curve trip. Combines MCB and RCD protection in one unit - saves space in consumer units. Type A residual current detection for AC and pulsating DC fault currents.

  • 30mA residual current sensitivity
  • 6kA breaking capacity to IEC 60898-1
  • 240V AC rated voltage
  • IP20 protection rating
  • Operating temperature: -25°C to +40°C
Specifications

Type

RCBO

Poles

1P+N

Trip Curve

C

Current Rating

25 A

Residual Current

30 mA

Residual Current Type

A

Breaking Capacity

6 kA

Voltage

240 V AC

Insulation Voltage

500 V

Impulse Withstand

4000 V

Frequency

50 Hz

IP Rating

IP20

Module Width

2 modules

Power Loss

9.30 W

Overvoltage Category

III (IEC 60947-1)

Max Altitude

2000 m

Standard

IEC 60898-1

Connection Type

Screw terminal (top) / Biconnect (bottom)

Flexible Conductor

1–16 mm²

Rigid Conductor

1–25 mm²

Tightening Torque

2.10 Nm

Height

83 mm

Width

35 mm

Depth

68 mm

Operating Temperature

-25 to +40 °C

Storage Temperature

-25 to +70 °C

RoHS Compliant

Yes

Documents

datasheet Hager AD975J Datasheet
