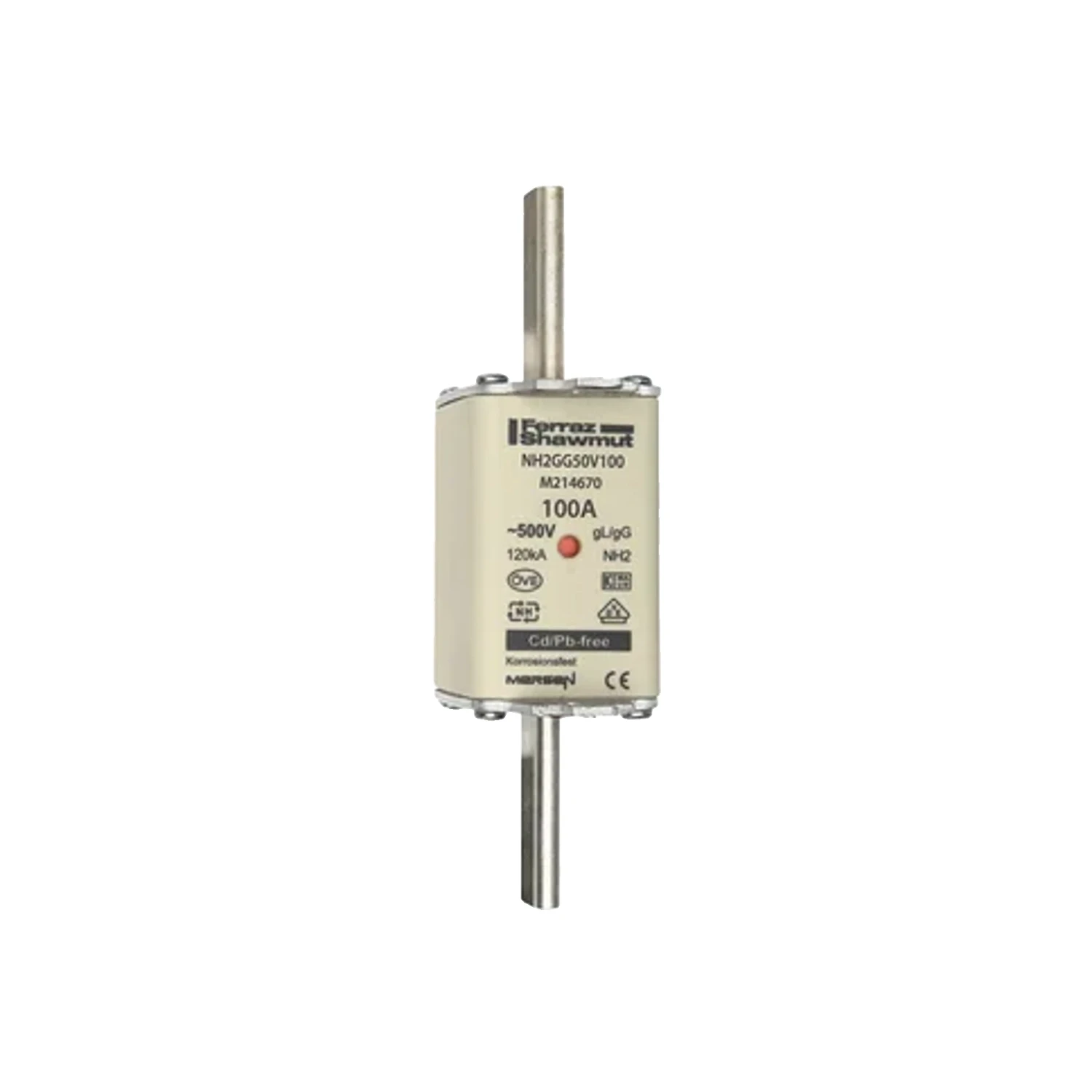

NH2 100A gG Fuse-Link 500VAC Ceramic Double Indicator

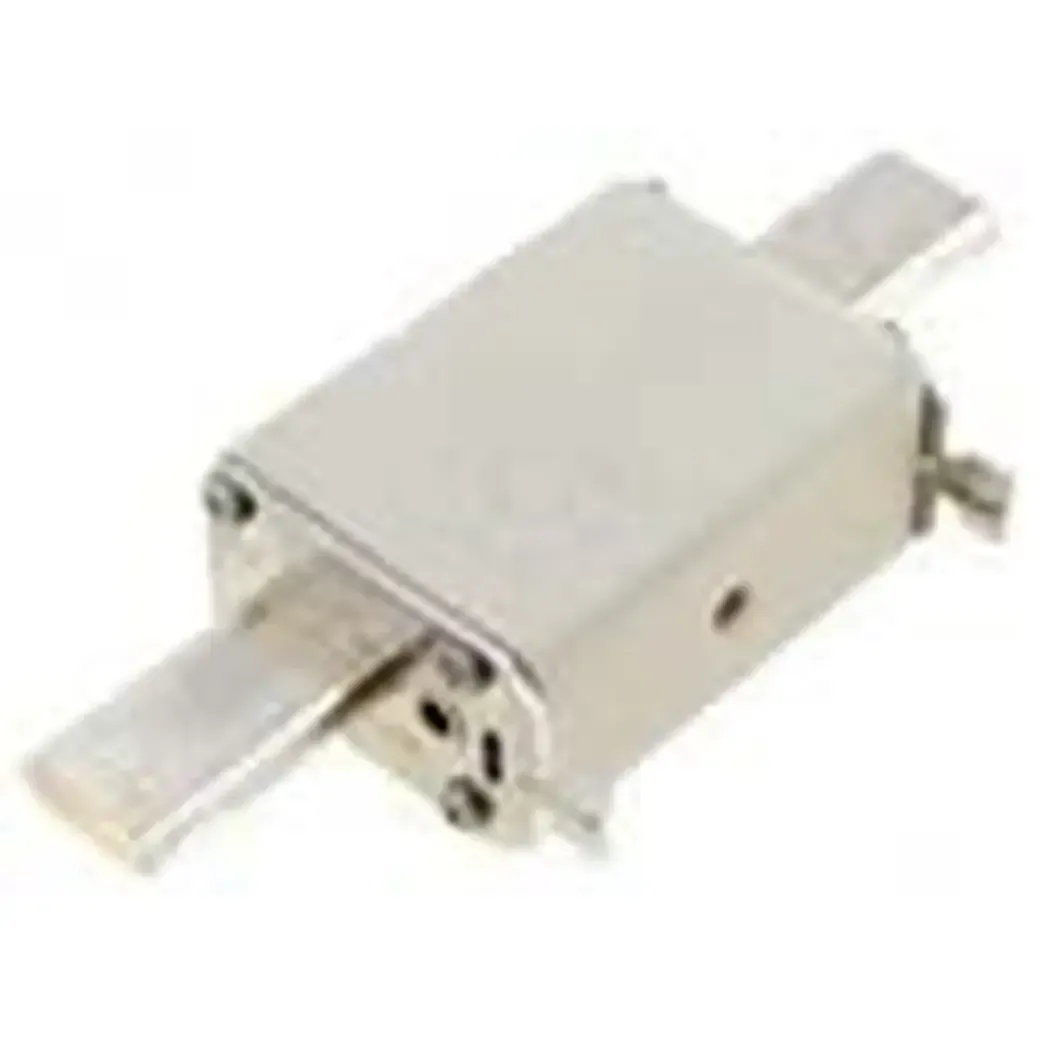

Photo is representative

NH2 100A gG Fuse-Link 500VAC Ceramic Double Indicator

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NH2100
GTIN —
Stock status: 5 in stock

priced individually

Net price: £18.46

Gross price

£22.15

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NH2 general-purpose fuse-link for cable and line protection in industrial distribution. Full-range gG characteristic — covers from lowest fusing current up to rated breaking capacity.

  • Rated current: 100A
  • Voltage: 500V AC / 250V DC
  • Breaking capacity: 120kA AC, 80kA DC
  • Body: ceramic, double indicator
  • Standards: IEC 60269-1 and -2, VDE 0636 Part 201
Specifications

Fuse Size

NH2

Rated Current

100 A

Rated Voltage AC

500 V

Rated Voltage DC

250 V

Characteristic

gG

Rated Breaking Capacity AC

120 kA

Rated Breaking Capacity DC

80 kA

Power Dissipation at In

10.7 W

Indication System

Double indicator

Contact Materials

Copper, silver-plated

Body Material

Ceramic

Width

39.5 mm

Standards

IEC 60269-1 and -2, VDE 0636 Part 201
