NH2 250A gG 500VAC Fuse-Link Size 2 Ceramic

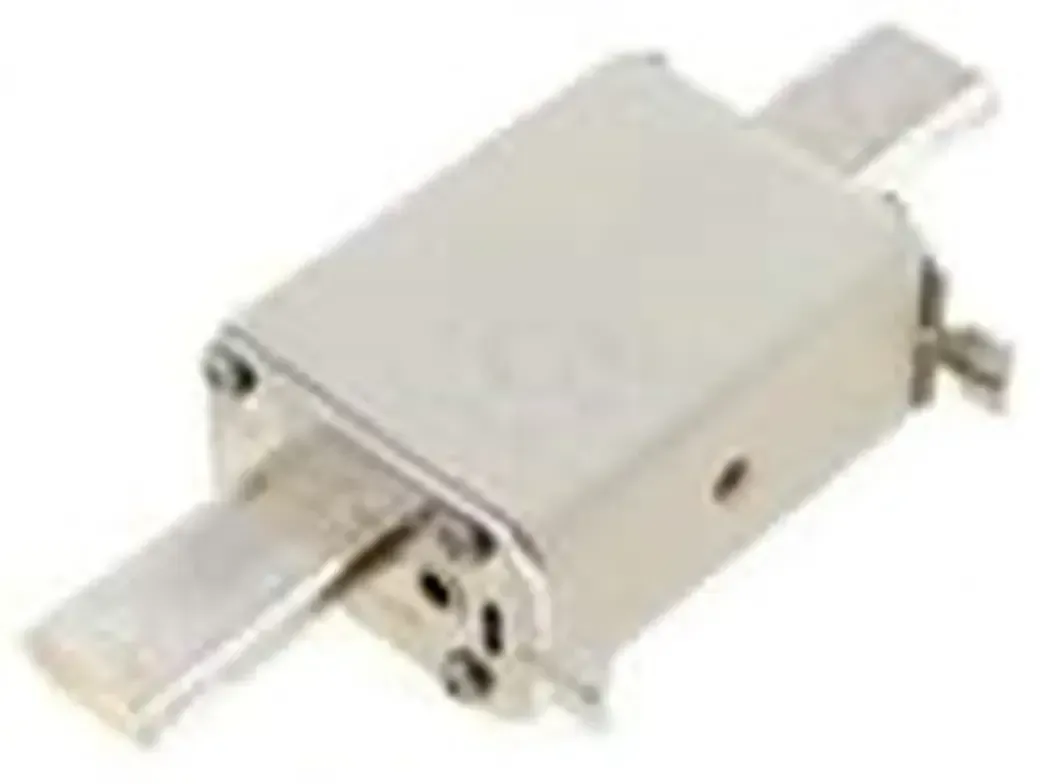

Photo is representative

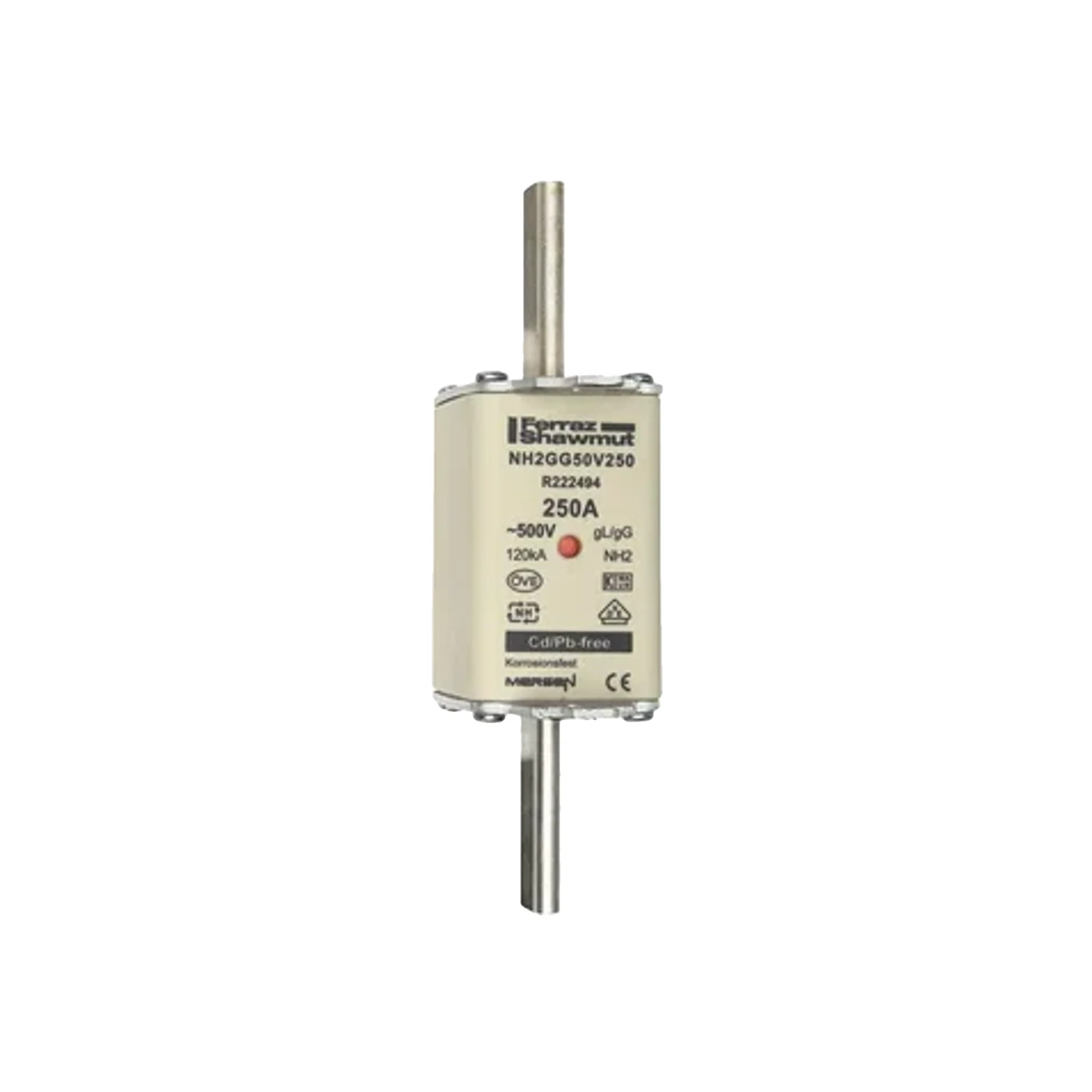

NH2 250A gG 500VAC Fuse-Link Size 2 Ceramic

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NH2250
GTIN —
Stock status: 1 in stock

priced individually

Net price: £16.03

Gross price

£19.23

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NH Size 2 gG fuse-link for general purpose cable and line protection in industrial distribution. Full range breaking capacity — interrupts from lowest fusing current up to 120kA AC.

  • 250A rated, 500VAC / 250VDC
  • 120kA AC breaking capacity, 80kA DC
  • Ceramic body, copper and silver-plated contacts
  • Double indicator, non-isolated gripping lugs
  • IEC 60269-1 and -2, VDE 0636 Part 201
Specifications

Fuse Class

gG

Size

2

Rated Current

250 A

Rated Voltage AC (IEC)

500 V

Rated Voltage DC (IEC)

250 V

Breaking Capacity AC (IEC)

120 kA

Breaking Capacity DC (IEC)

80 kA

Power Dissipation at In

20.6 W

Body Material

Ceramic

Contact Materials

Copper, silver-plated

Width

39.5 mm

Indication System

Double indicator

Non-isolated Gripping Lugs

Yes

Standards

IEC 60269-1 and -2, VDE 0636 Part 201
