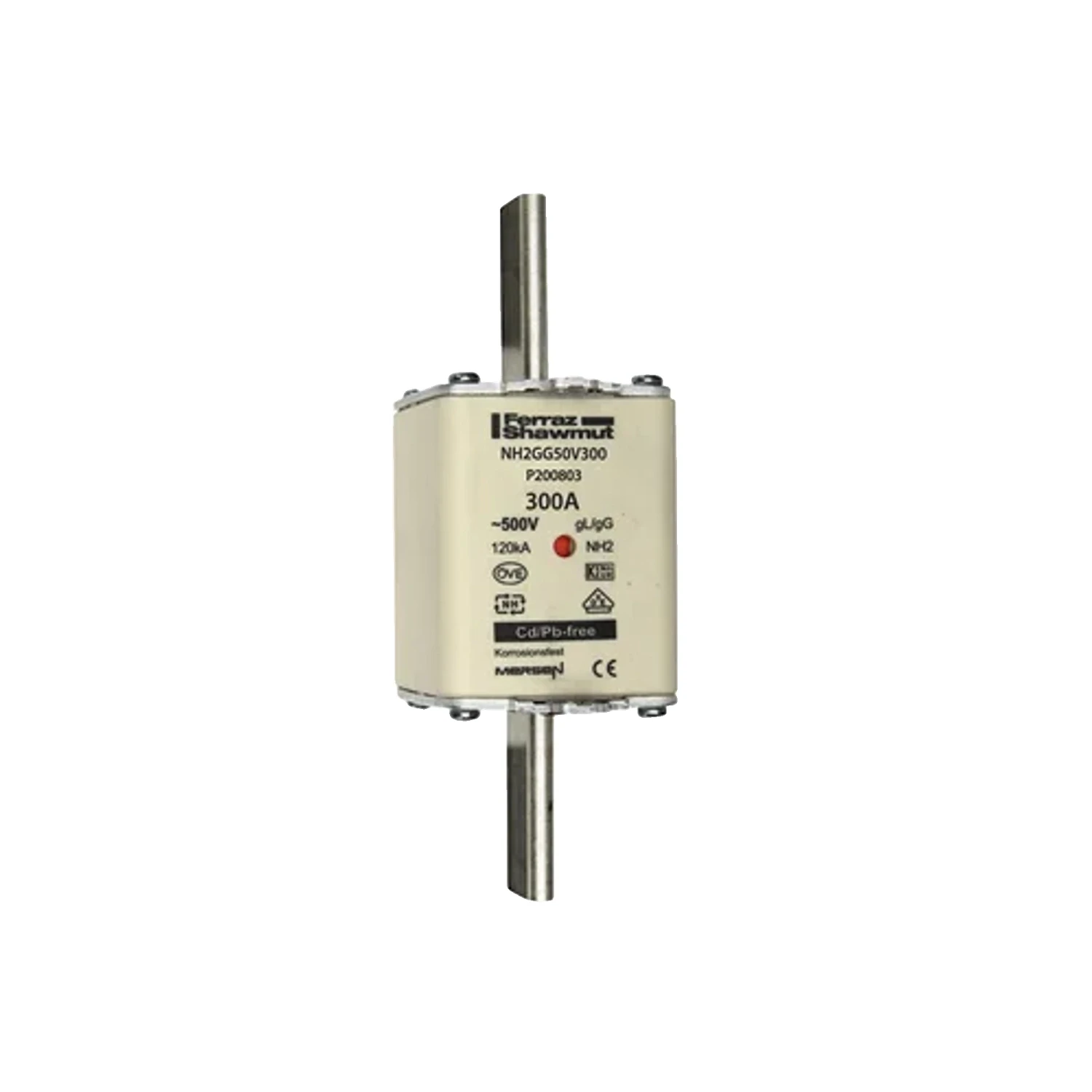

NH2 gG 300A 500VAC Ceramic Fuse-Link Low Voltage

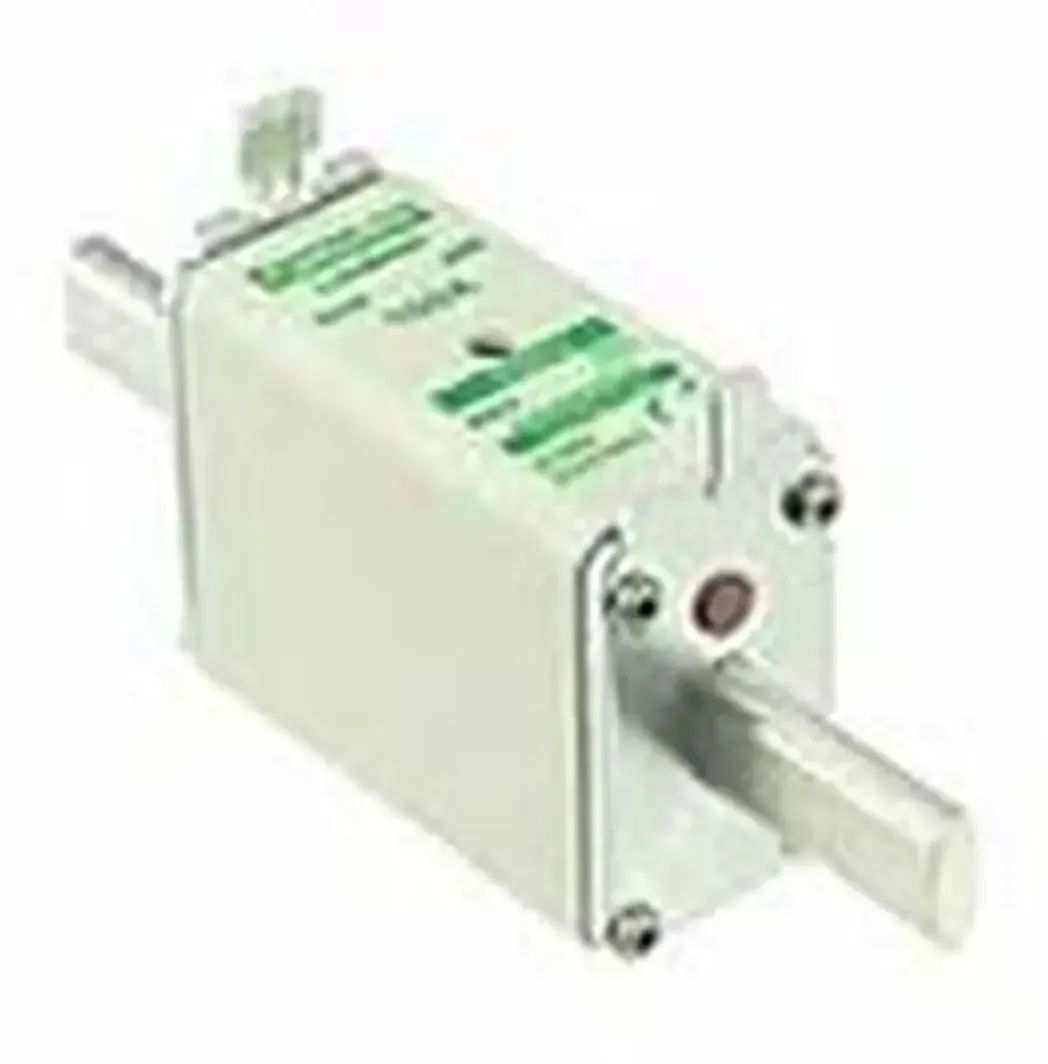

Photo is representative

NH2 gG 300A 500VAC Ceramic Fuse-Link Low Voltage

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NH2300
GTIN —
Stock status: In stock

priced individually

Net price: £26.05

Gross price

£31.26

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NH Size 2 gG fuse-link rated 300A for cable and line protection in LV AC distribution. Suits industrial switchgear and motor control panels where high fault levels demand proven short-circuit coordination.

  • Rated current: 300A
  • Rated voltage: 500V AC / 250V DC
  • Breaking capacity: 120kA AC / 80kA DC
  • Characteristic: gG (full range)
  • Standards: IEC 60269-1 and -2, VDE 0636 Part 201
Specifications

Rated Current

300 A

Rated Voltage AC

500 V

Rated Voltage DC

250 V

Breaking Capacity AC

120 kA

Breaking Capacity DC

80 kA

Characteristic

gG

Size

2

Width

51 mm

Body Material

Ceramic

Contact Materials

Copper, silver-plated

Indication System

Double indicator

Gripping Lugs

Live gripping-lugs, non-isolated

Power Dissipation

21 W

Standards

IEC 60269-1 and -2, VDE 0636 Part 201
