NH2 400A aM 500V AC Ceramic Fuse-Link Size 2

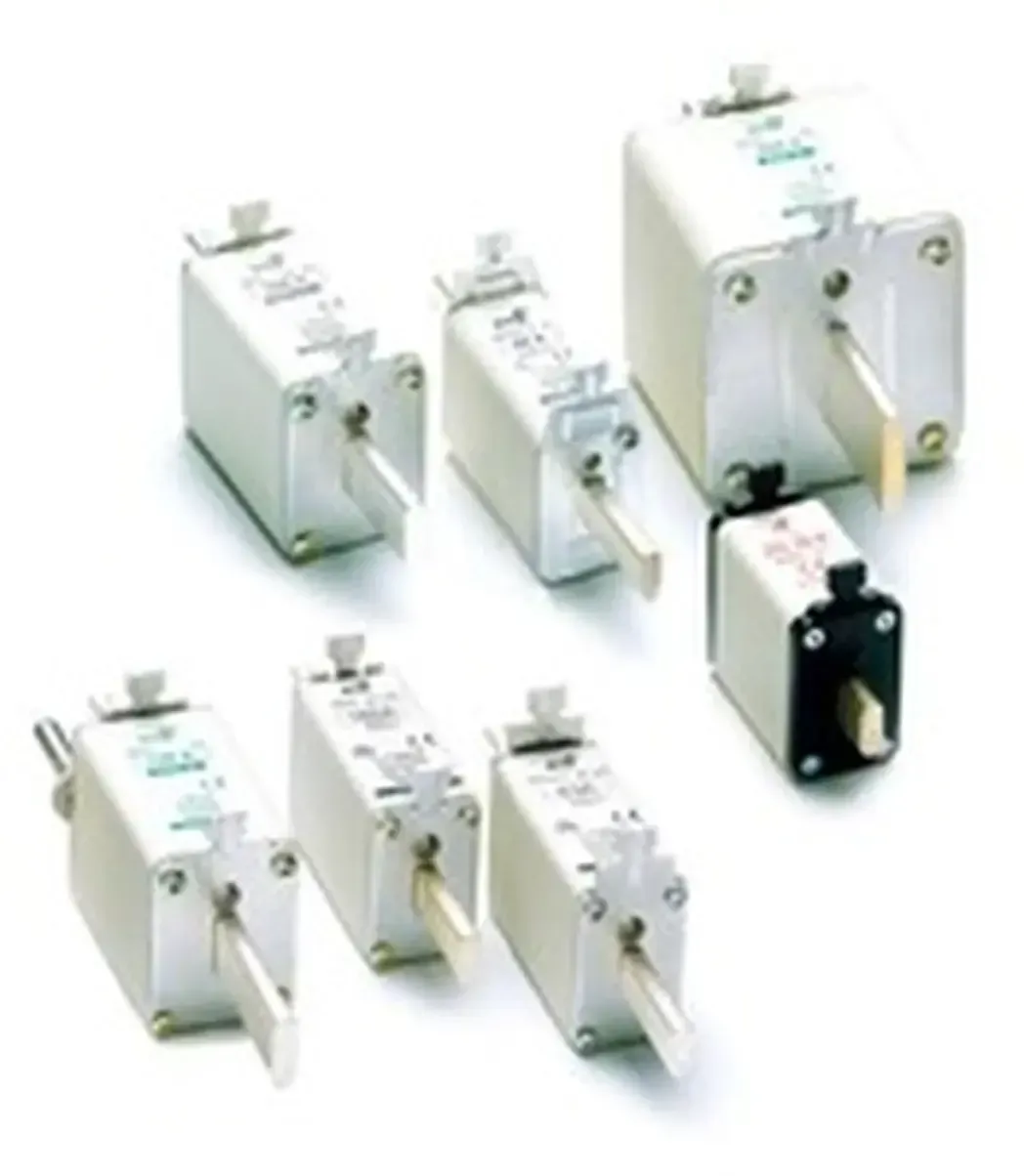

Photo is representative

NH2 400A aM 500V AC Ceramic Fuse-Link Size 2

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NH2400
GTIN —
Stock status: In stock

priced individually

Net price: £16.13

Gross price

£19.36

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NH size 2 fuse-link rated 400A for industrial distribution and motor circuit protection up to 500V AC.

  • Rated current: 400A
  • Rated voltage: 500V AC / 250V DC
  • Breaking capacity: 120kA AC / 80kA DC
  • Fuse class: gG
  • Power dissipation at rated current: 32W
Specifications

Fuse Class

gG

Rated Current

400 A

Rated Voltage AC

500 V

Rated Voltage DC

250 V

Breaking Capacity AC

120 kA

Breaking Capacity DC

80 kA

Size

2

Body Material

Ceramic

Contact Materials

Copper, silver-plated

Indication System

Double indicator

Gripping Lugs

Non-isolated, live

Width

51 mm

Dimensions Standard

DIN 43 620 parts 1 to 4

Standards Compliance

VDE 0636 Part 201, IEC 60269-1 and -2

Power Dissipation

32 W at rated current
