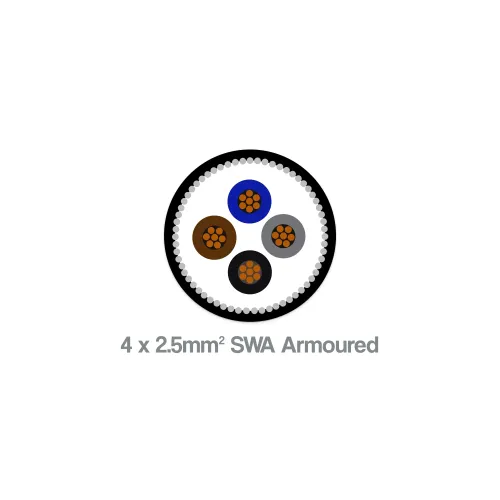

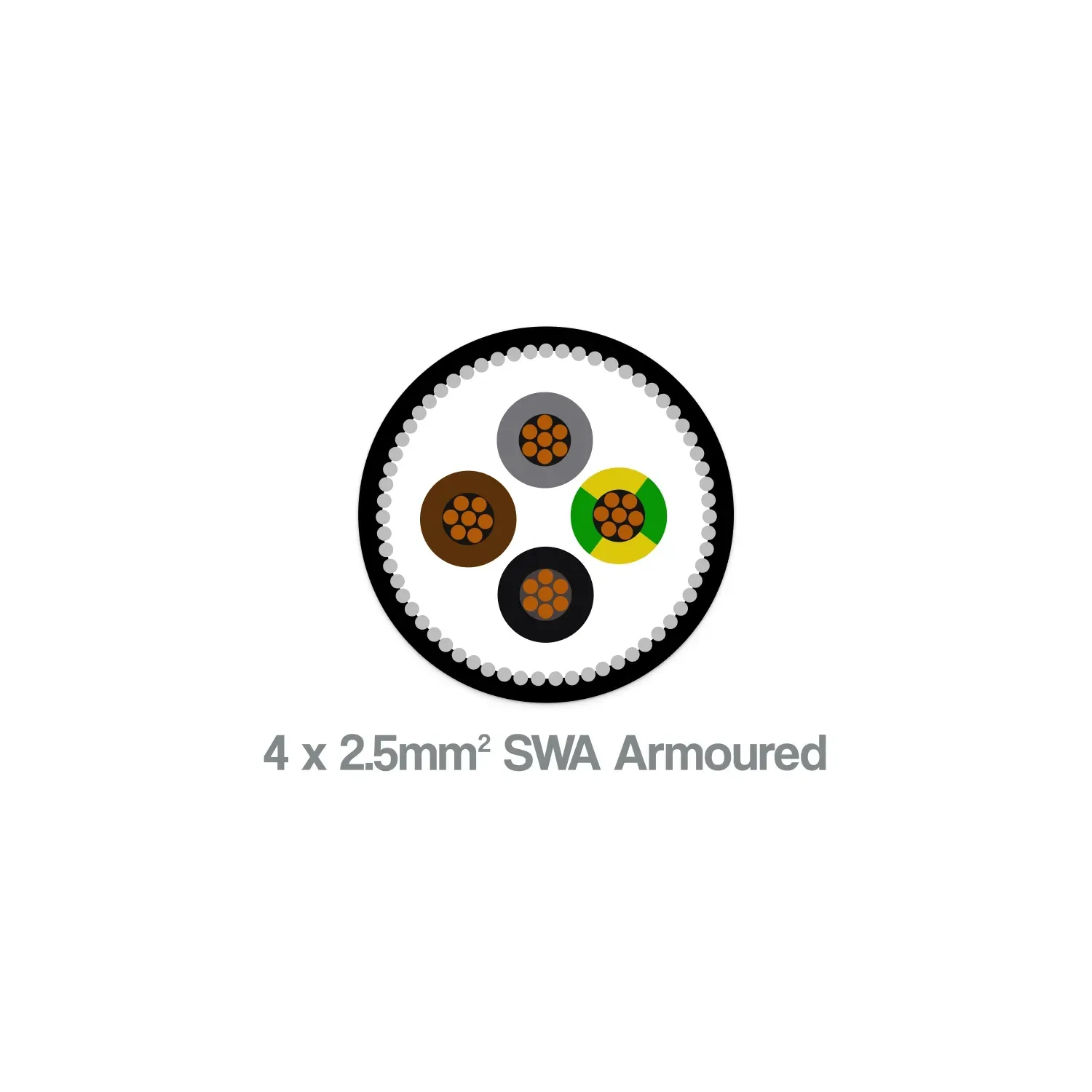

2.5mm² 4 core SWA armoured power cable XLPE LSZH black

Photo is representative

2.5mm² 4 Core SWA Armoured Cable 600/1000V XLPE/LSZH

Product Information

Stock Code 4X2.5SWAE
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £2.82

Gross price

£3.38

This item is not available to order online. Contact us to arrange supply.

This 2.5mm² 4 core SWA armoured cable is designed for power and control networks, rated at 600/1000V with XLPE insulation and black LSZH outer sheath. The cable features Class 2 stranded copper conductors and complies with BS6724 and BS EN/IEC 60228. Operating temperature range: -20°C to +90°C with a 90°C maximum conductor temperature. Steel wire armour provides mechanical protection suitable for direct burial, indoor, outdoor, and cable duct installations. Low smoke zero halogen sheath minimises emissions, meeting stringent fire safety requirements for public and confined spaces.

Specifications

Conductor Cross-Sectional Area

2.5mm² Class 2 stranded copper

Core Count

4 core configuration: Brown, Black, Grey, Green-Yellow

Voltage Rating (Uo/U)

600/1000V (0.6/1kV)

Insulation Type

XLPE (Cross Linked Polyethylene), 90°C max conductor temperature

Sheath/Jacket Type

Black LSZH (Low Smoke Zero Halogen) outer sheath

Armour Type

Galvanised steel wire armour (SWA)

Operating Temperature Range

-20°C to +90°C (fixed installation)

Minimum Bending Radius

6 x overall diameter (fixed installation)

Overall Diameter

13.5mm approximate

Weight per Metre

0.41kg/m

Voltage Drop (Three-phase AC)

16mV/A/m

Standards Compliance

BS6724, BS EN/IEC 60228, flame/smoke/acid gas per BS EN/IEC 60332, 61034, 60754
