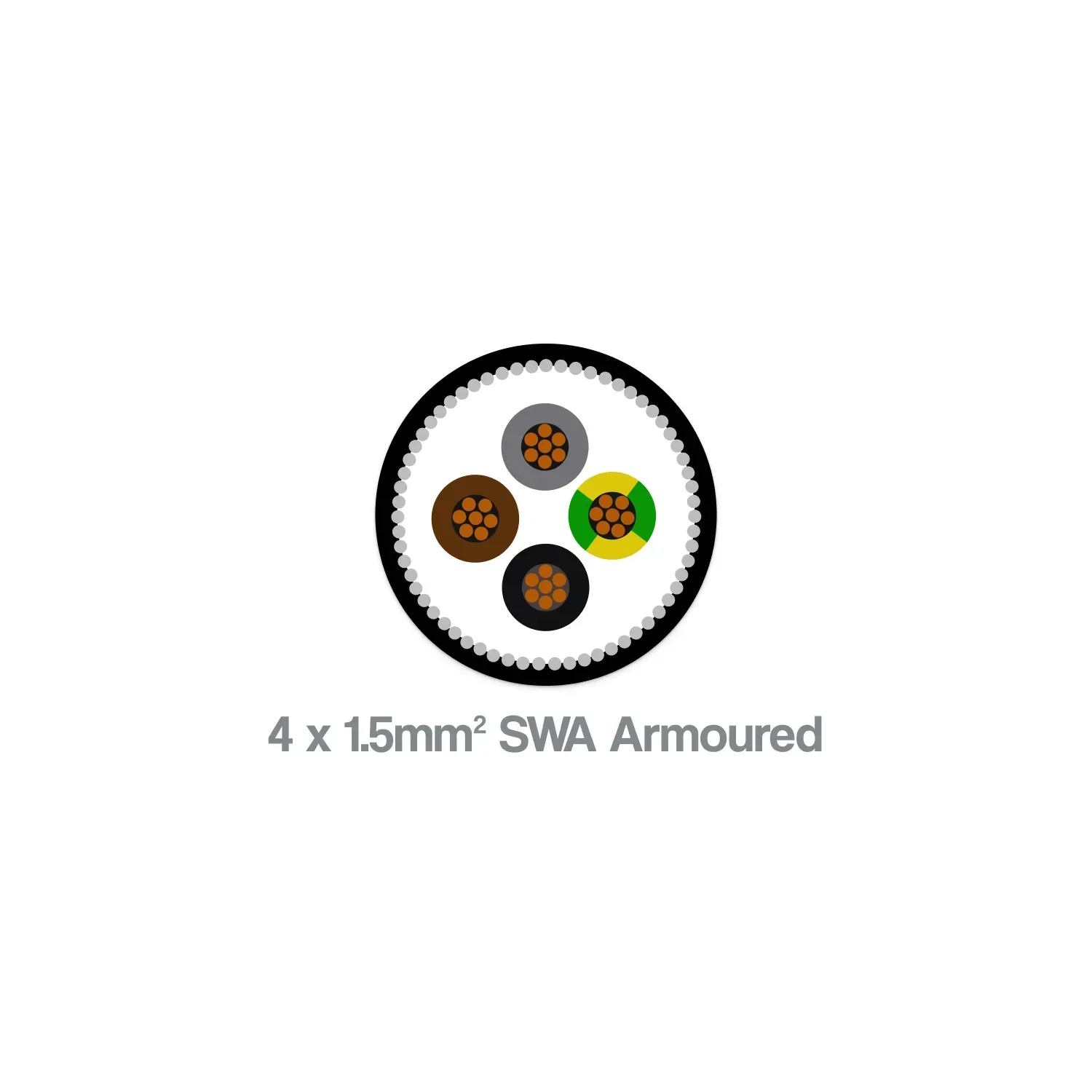

1.5mm² 4 core SWA armoured cable XLPE LSZH black sheath

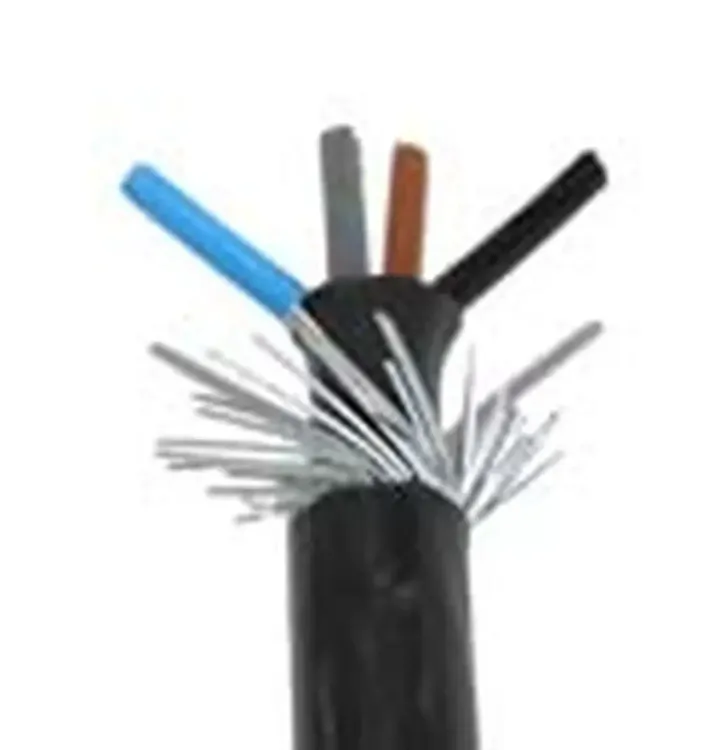

Photo is representative

1.5mm² 4 Core SWA Armoured Cable 600/1000V XLPE/LSZH

Product Information

Stock Code 415SWAE
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £1.88

Gross price

£2.26

This item is not available to order online. Contact us to arrange supply.

This 1.5mm² 4 core SWA armoured cable is designed for power distribution and control circuits, rated at 600/1000V with XLPE insulation and a Low Smoke Zero Halogen (LSZH) sheath. The cable features Class 2 stranded copper conductors, steel wire armour for mechanical protection, and complies with BS 6724 and IEC 60228. Operating temperature range is -20°C to +90°C with a maximum conductor temperature of 90°C. Suitable for fixed installation indoors, outdoors, underground, or in cable ducts—especially where fire performance and reduced smoke/acid gas emissions are required under IS 10101:2020.

Specifications

Conductor Cross-Sectional Area

1.5mm²

Core Count

4 core configuration (brown, black, grey, blue cores)

Voltage Rating (Uo/U)

600/1000V

Conductor Material

Plain annealed copper (Class 2 stranded)

Insulation Type

XLPE (Cross-Linked Polyethylene)

Armour Type

Galvanised Steel Wire Armour (SWA)

Sheath/Jacket Type

Low Smoke Zero Halogen (LSZH), black

Operating Temperature Range

-20°C to +90°C

Maximum Conductor Temperature

90°C continuous

Minimum Bending Radius

6 x cable diameter (fixed)

Current Carrying Capacity

See BS 7671 Table 4D4A (Installation Method D)

Voltage Drop (3 phase AC)

27 mV/A/m

Approximate Overall Diameter

12.5mm

Weight per Metre

0.35kg (350kg/km)

Standards Compliance

BS 6724, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN/IEC 60332-3-24, BS EN/IEC 61034-2, BS EN/IEC 60754-1/2

Installation Method Suitability

Fixed wiring in indoor, outdoor, direct burial, or cable duct installations; suitable for public buildings with fire safety requirements
