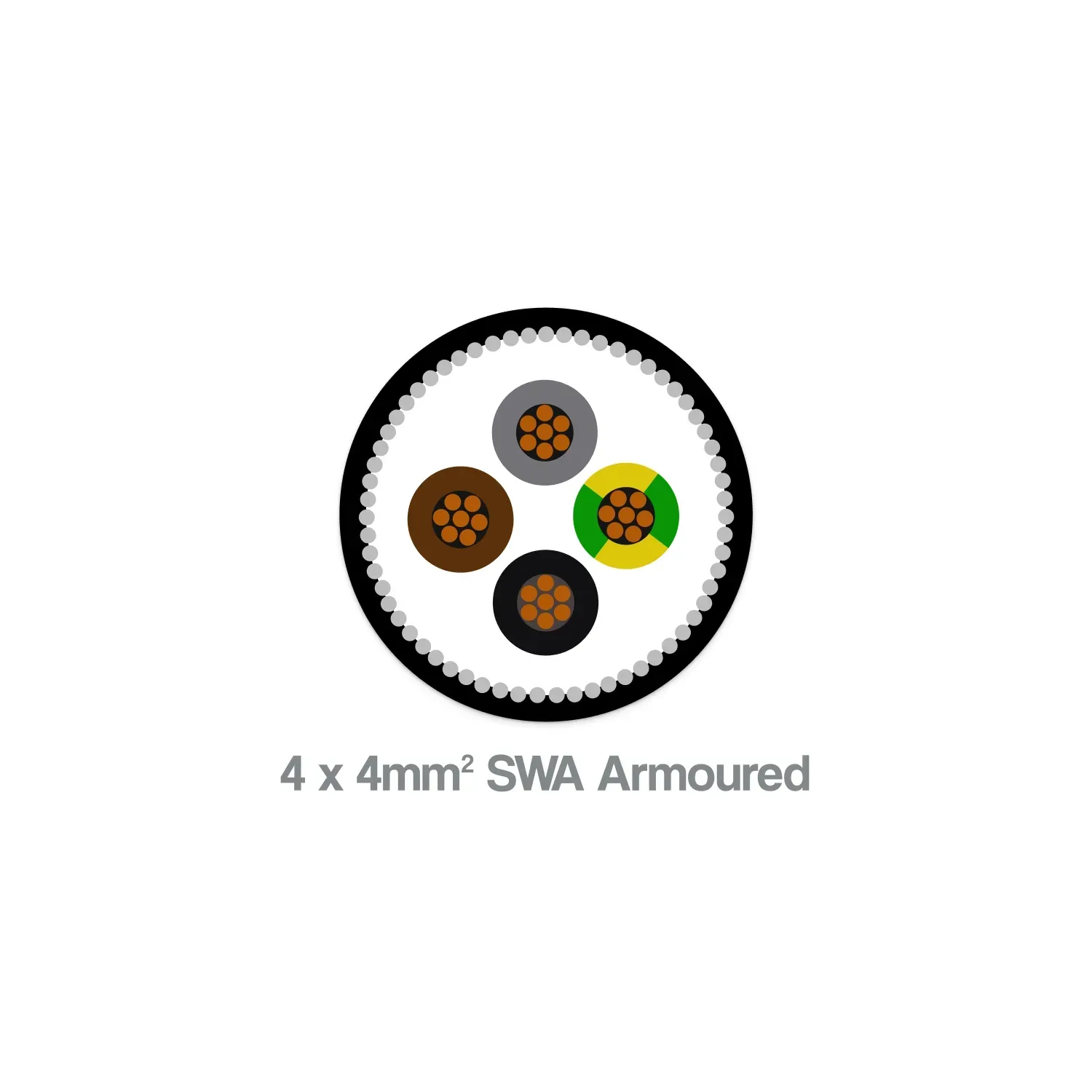

4mm² 4 Core SWA Armoured Cable XLPE LSZH, side view

Photo is representative

4mm² 4 Core SWA Armoured Cable 600/1000V XLPE/LSZH

Product Information

Stock Code 44SWAE
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £3.81

Gross price

£4.57

This item is not available to order online. Contact us to arrange supply.

This 4mm² 4 core SWA armoured cable is designed for mains power and control applications, rated at 600/1000V with cross-linked polyethylene (XLPE) insulation and a robust LSZH (Low Smoke Zero Halogen) outer sheath. The cable features Class 2 stranded copper conductors and complies with BS6724 for fire performance in critical spaces. Its steel wire armour (SWA) delivers mechanical protection, suitable for underground, ducted, indoor, or outdoor installations. Core colours: brown, black, grey, green/yellow. Operating temperature range: -20°C to +90°C. Ideal where low smoke and zero halogen emissions are required for safety.

Specifications

Conductor Cross-Sectional Area

4mm² Class 2 stranded copper

Core Count

4 core configuration, including brown, black, grey, green/yellow

Voltage Rating (Uo/U)

600/1000V (0.6/1kV)

Insulation Type

XLPE (Cross-linked Polyethylene)

Bedding/Sheath

LSZH (Low Smoke Zero Halogen) inner bedding and outer sheath

Armour

Galvanised steel wire armour (SWA)

Operating Temperature Range

-20°C to +90°C

Maximum Conductor Temperature

90°C continuous

Overall Diameter

14.8mm (approximate)

Weight per Metre

0.495kg/m

Current Carrying Capacity

See BS 7671 Table 4D4A (Installation Method D)

Voltage Drop (3-phase)

10mV/A/m

Minimum Bending Radius

6 x overall diameter (fixed)
