Welding Cable 25mm² Black H01N2-E EN 50525-2-81 Priced Per Metre

Photo is representative

Welding Cable 25mm² Black H01N2-E EN 50525-2-81 Priced Per Metre

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 25WC
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £8.76

Gross price

£10.52

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

25mm² H01N2-E arc welding cable for connections between welding energy source, electrode holder, and workpiece. Suitable for dry and damp environments; temporary outdoor use permitted. Rated for automotive, shipbuilding, conveyor systems, machine tools, and automatic welding machines.

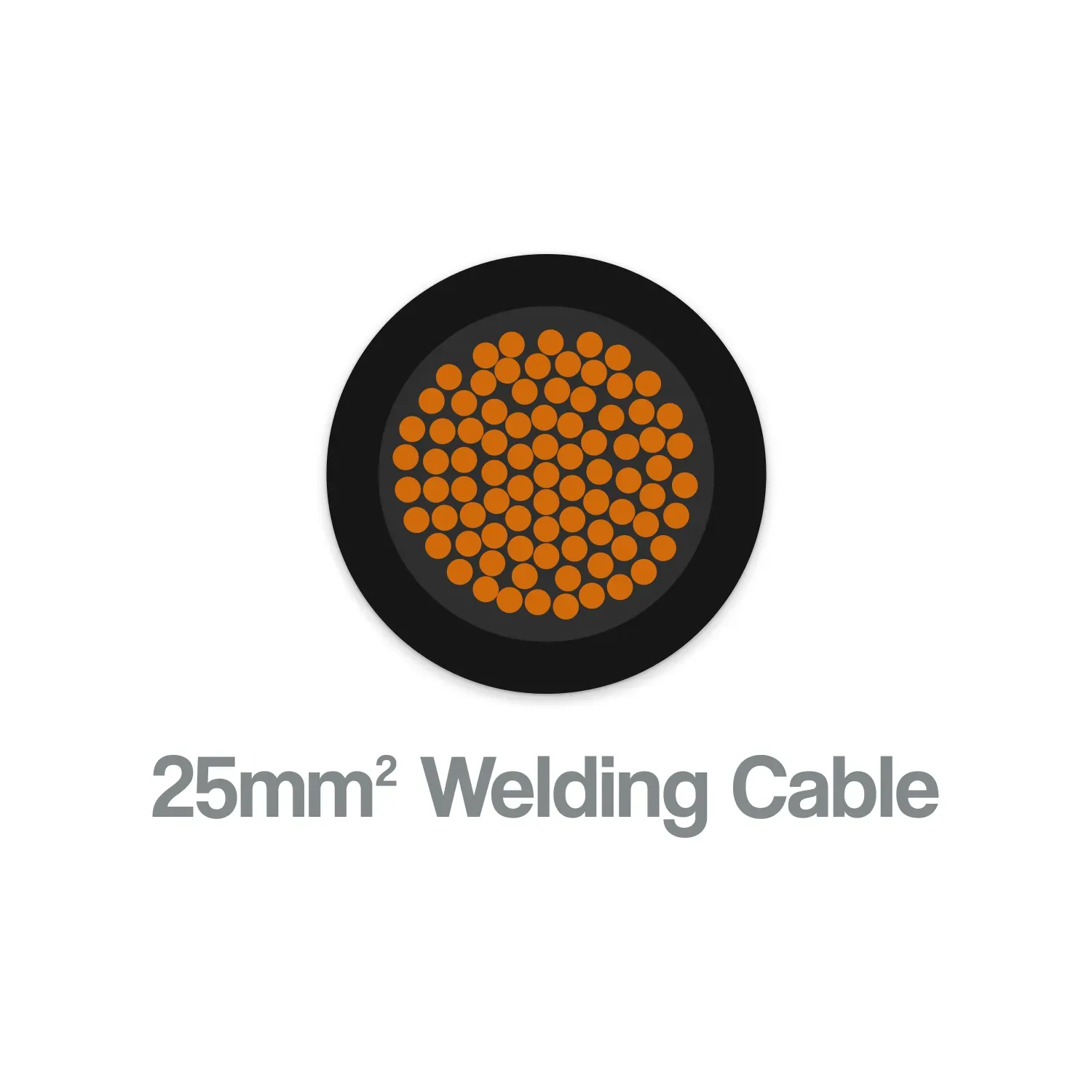

Extra finely stranded bare copper conductor (1407 × 0.15mm) with cross-linked elastomer sheath — handles the flex and abuse of mobile welding setups.

  • Nominal voltage: 100⁄100 V AC, test voltage 1000 V
  • Temperature range: -20°C to +85°C (flexible use), -35°C to +85°C (fixed)
  • Flame-retardant to IEC 60332-1-2; oil, ozone, and petrol resistant
  • Minimum bend radius: 10× outer diameter
Specifications

Cross-Section

1 × 25 mm²

AWG (approx.)

4

Nominal Voltage

AC U0/U 100/100 V

Test Voltage

1000 V

Max Conductor Temperature

+85°C

Temperature Range (Flexible)

-20°C to +85°C

Temperature Range (Fixed)

-35°C to +85°C

Strand Construction

1407 × 0.15 mm

Outer Diameter

8.6 – 10.8 mm

Conductor Material

Copper, bare, extra finely stranded

Sheath Material

Cross-linked elastomer (rubber compound)

Colour

Black

Minimum Bend Radius

10× outer diameter (flexible)

Standard

DIN VDE 0285-525-2-81 / DIN EN 50525-2-81

Flame Retardancy

IEC 60332-1-2 / DIN EN 60332-1-2

Copper Weight

240.0 kg/km

Total Weight

270.0 kg/km
