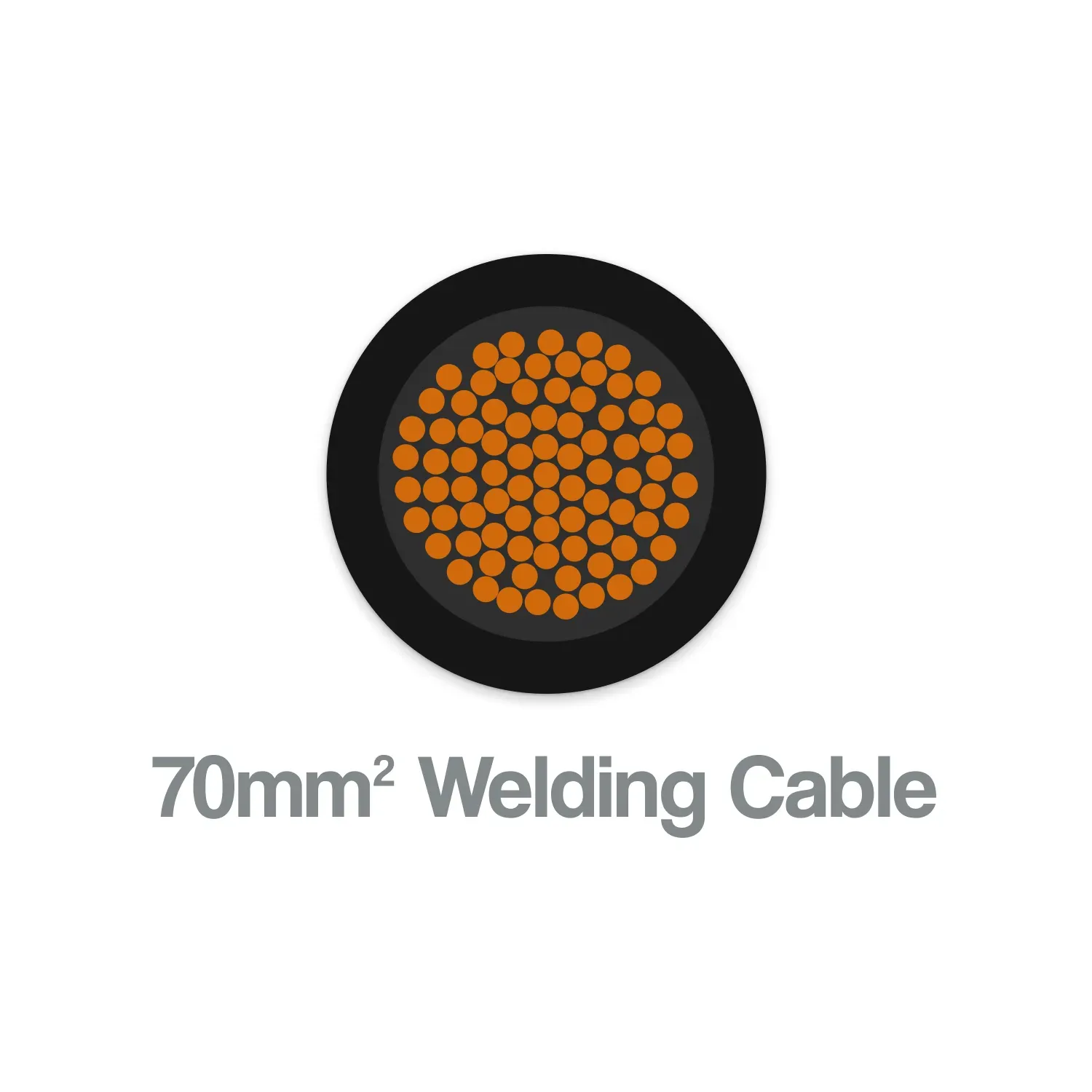

Welding Cable 70mm² Black H01N2-E EN 50525-2-81 Priced Per Metre

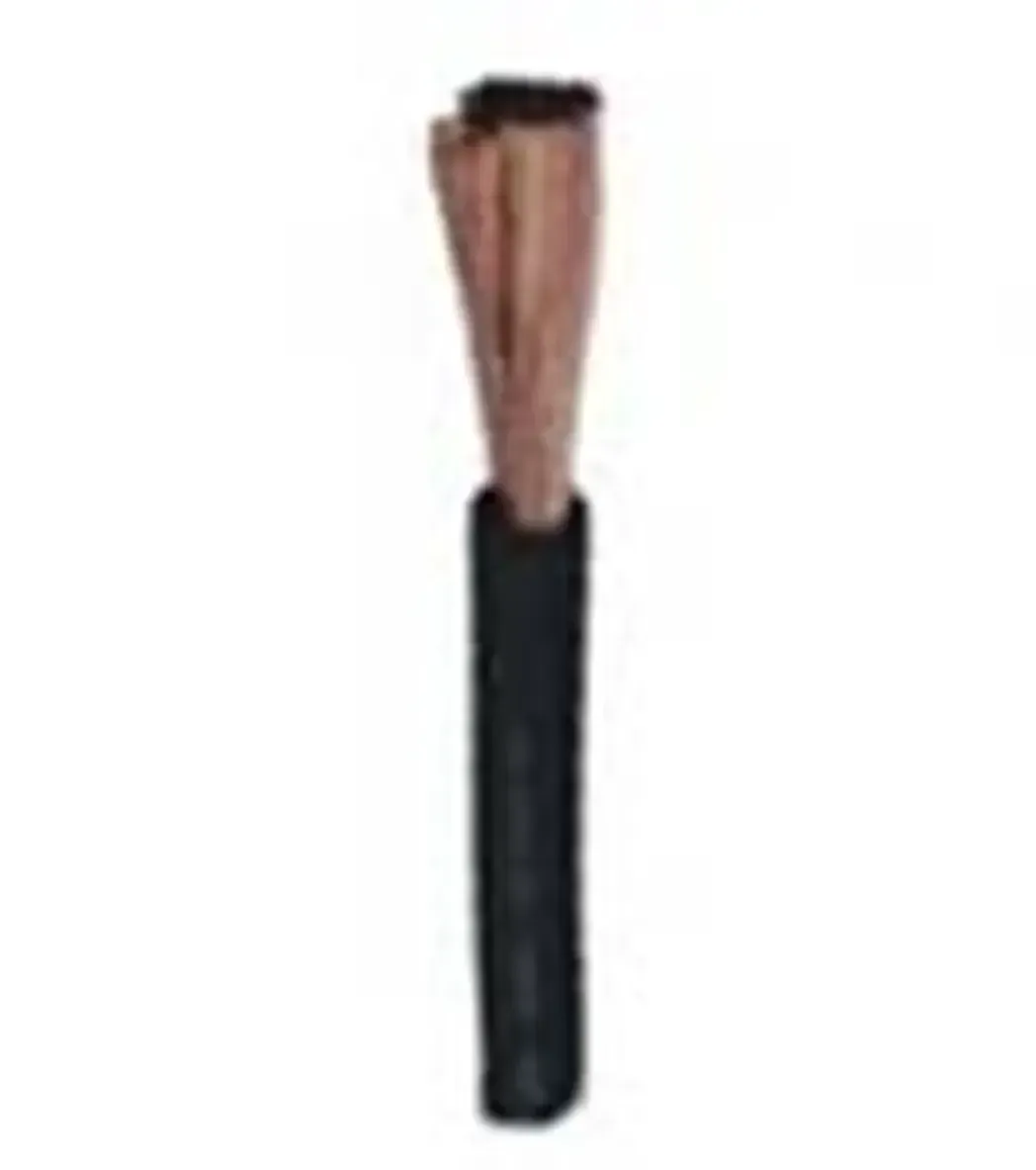

Photo is representative

Welding Cable 70mm² Black H01N2-E EN 50525-2-81 Priced Per Metre

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 70WC
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £20.21

Gross price

£24.25

Single-core 70mm² arc welding cable to H01N2-E specification. Suits connections between welding energy source, electrode holder, and workpiece. Rated for use in dry and damp locations; temporary outdoor use permitted.

Suitable for automotive, shipbuilding, conveyor systems, machine tools, and automatic welding machines.

  • 70mm² bare copper, extra finely stranded (3952 × 0.15 mm)
  • Cross-linked elastomer sheath — oil, ozone, and petrol resistant
  • Flame-retardant to IEC 60332-1-2
  • Nominal voltage: 100⁄100 V AC; test voltage: 1000 V
  • Temperature range: −20°C to +85°C flexible, −35°C to +85°C fixed
Specifications

Standard

DIN VDE 0285-525-2-81 / DIN EN 50525-2-81

Cross-Section

1 × 70 mm²

Strand Construction

3952 × 0.15 mm

AWG (approx.)

2/0

Nominal Voltage

AC U0/U 100/100 V

Test Voltage

1000 V

Max Conductor Temperature

+85°C

Temperature Range (Flexible)

-20°C to +85°C

Temperature Range (Fixed)

-35°C to +85°C

Outer Diameter

13.6 – 17.0 mm

Minimum Bending Radius

10× Outer-Ø (flexible)

Sheath Material

Cross-linked elastomer (rubber compound) to DIN EN 50363-2-2

Conductor

Bare copper, extra finely stranded

Flame Retardancy

IEC 60332-1-2 / DIN EN 60332-1-2

Oil Resistance

IEC 60811-404 / DIN EN 60811-404

Colour

Black

Copper Weight

672.0 kg/km

Total Weight

716.0 kg/km
