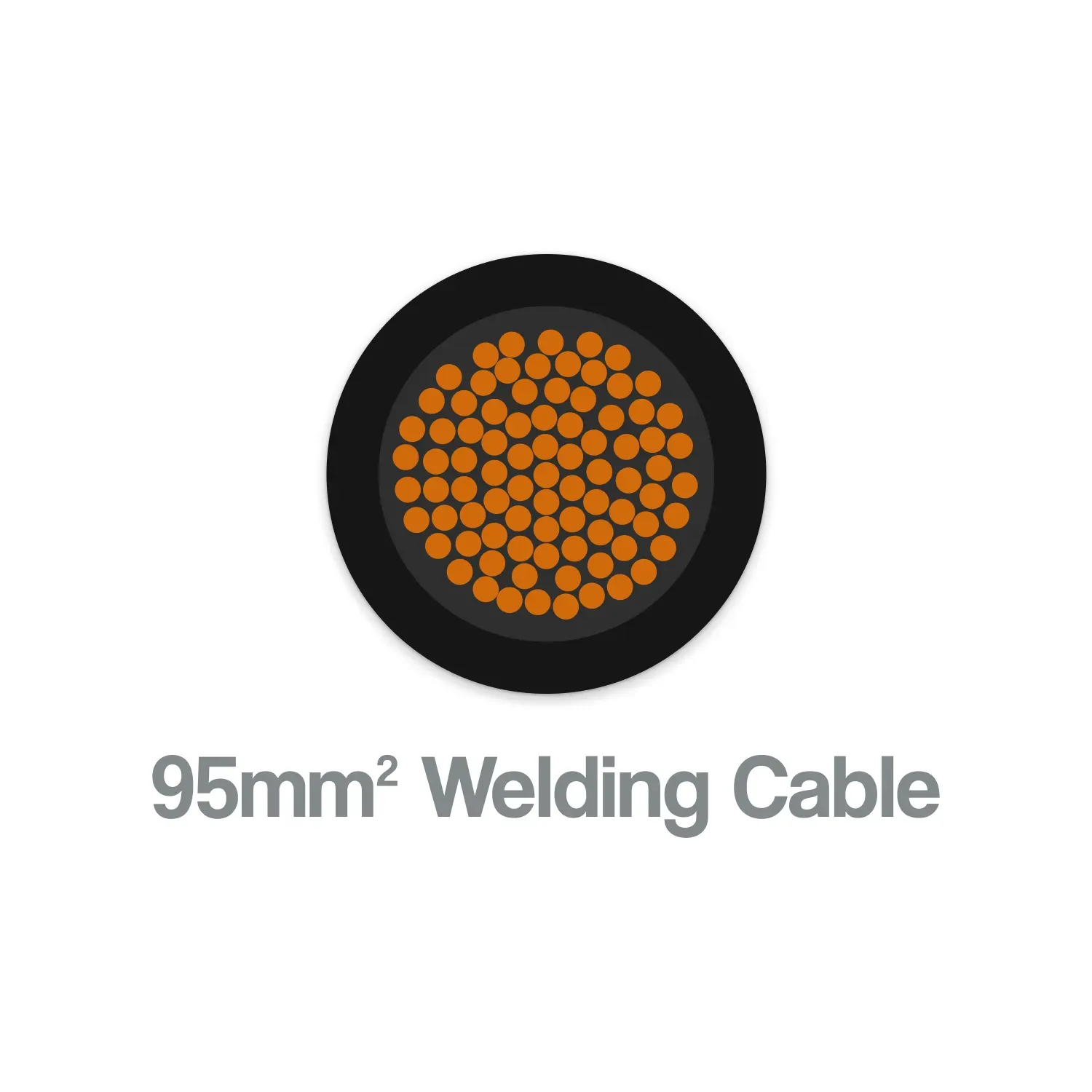

Welding Cable 95mm² Black H01N2-E EN 50525-2-81 Single Core

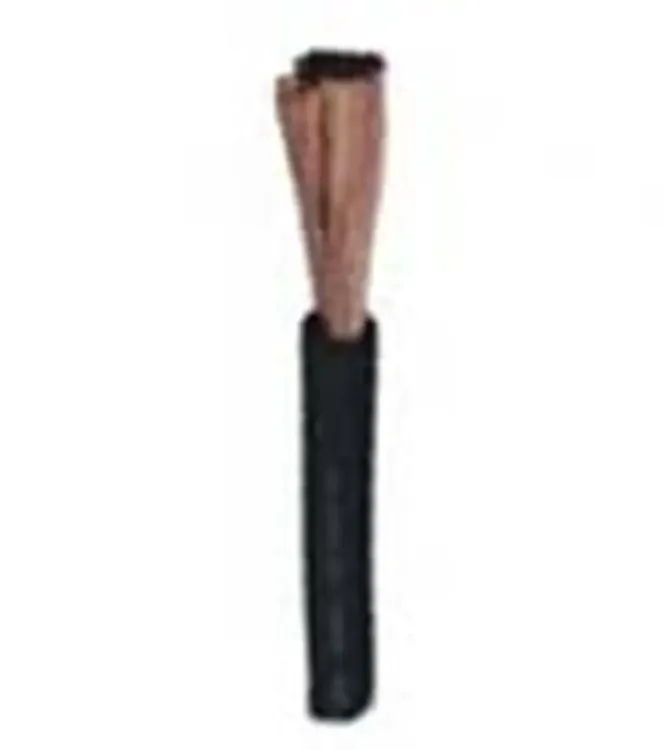

Photo is representative

Welding Cable 95mm² Black H01N2-E EN 50525-2-81

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 95WC
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £25.71

Gross price

£30.86

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

95mm² single-core welding cable to H01N2-E, suitable for connections between the welding energy source and electrode holder or workpiece. Rated for use in dry and damp environments; temporary outdoor use permitted. Suitable for arc welding in automotive, shipbuilding, machine tool, and automated welding applications.

Extra finely stranded bare copper conductor with a cross-linked elastomer (rubber) sheath. Flame-retardant to IEC 60332-1-2. Oil, ozone, and petrol resistant.

  • 95mm² cross-section, 5370 × 0.15 mm strand construction
  • Nominal voltage: 100⁄100 V AC; test voltage: 1000 V
  • Operating temp: -20°C to +85°C flexible; -35°C to +85°C fixed
  • Minimum bend radius: 10× outer diameter
Specifications

Cross-Section

1 × 95 mm²

AWG (approx.)

3/0

Strand Construction

5370 × 0.15 mm

Nominal Voltage

AC U0/U 100/100 V

Test Voltage

1000 V

Max Conductor Temperature

+85°C

Temperature Range (Flexible)

-20°C to +85°C

Temperature Range (Fixed)

-35°C to +85°C

Minimum Bend Radius

10× outer diameter (flexible)

Outer Diameter

15.6 – 19.5 mm

Copper Weight

912.0 kg/km

Total Weight

1012.0 kg/km

Sheath Material

Cross-linked elastomer (rubber), per DIN EN 50363-2-2

Flame Retardancy

IEC 60332-1-2 / DIN EN 60332-1-2

Standard

DIN EN 50525-2-81 / DIN VDE 0285-525-2-81

Colour

Black
