Welding Cable 35mm² Black H01N2-E EN 50525-2-81 Priced Per Metre

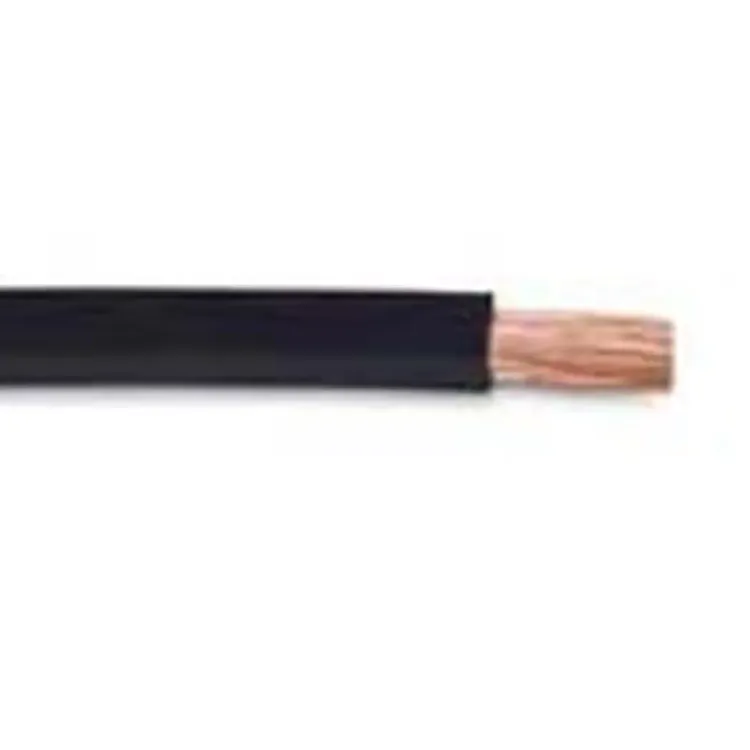

Photo is representative

Welding Cable 35mm² Black H01N2-E EN 50525-2-81

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 35WC
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £9.89

Gross price

£11.87

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single-core 35mm² welding cable to EN 50525-2-81 / H01N2-E. For connections between the welding energy source, electrode holder, and workpiece. Suitable for dry and damp environments; temporary outdoor use permitted.

Used in arc welding, automotive and shipbuilding, conveyor and assembly line systems, machine tools, and automatic welding machines.

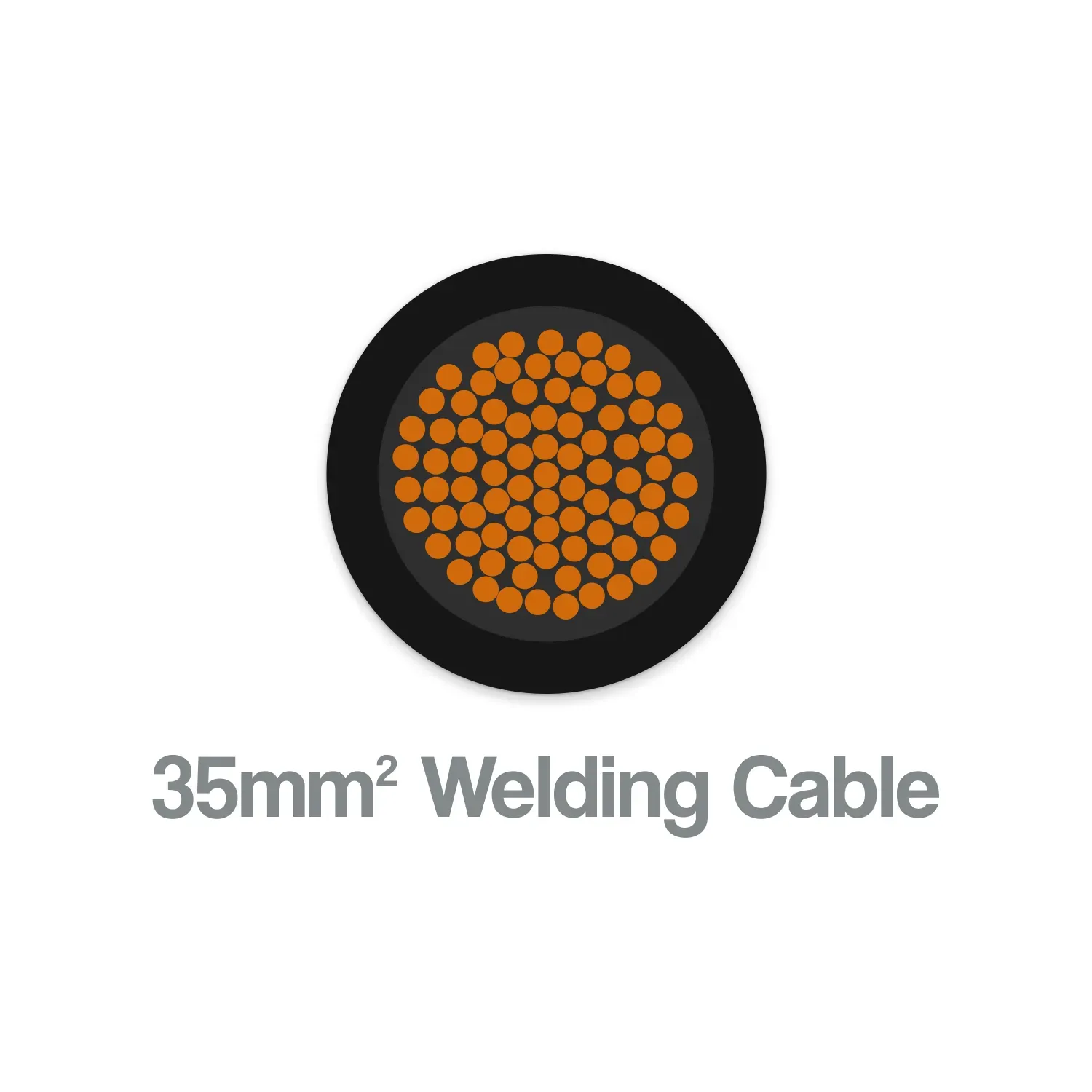

  • 35mm² extra finely stranded bare copper (1974 × 0.15 mm)
  • Cross-linked elastomer sheath — oil, ozone, and petrol resistant
  • Flame-retardant to IEC 60332-1-2
  • Temp range: -20°C to +85°C flexible / -35°C to +85°C fixed
  • Min bending radius: 10× outer diameter
Specifications

Standard

DIN VDE 0285-525-2-81 / DIN EN 50525-2-81

Cross-Section

1 × 35 mm²

AWG (approx.)

2

Nominal Voltage

AC U0/U 100/100 V

Test Voltage

1000 V

Max Conductor Temperature

+85°C

Temperature Range (Flexible)

-20°C to +85°C

Temperature Range (Fixed)

-35°C to +85°C

Strand Construction

1974 × 0.15 mm

Outer Diameter

9.8 – 12.3 mm

Conductor

Bare copper, extra finely stranded

Sheath Material

Cross-linked elastomer (rubber compound) to DIN EN 50363-2-2

Colour

Black

Minimum Bending Radius

10× outer diameter (flexible)

Flame Retardancy

IEC 60332-1-2 / DIN EN 60332-1-2

Oil Resistance

IEC 60811-404 / DIN EN 60811-404

Copper Weight

336.0 kg/km

Total Weight

363.0 kg/km
