Welding Cable 50mm2 Black H01N2-E EN 50525-2-81 Per Metre

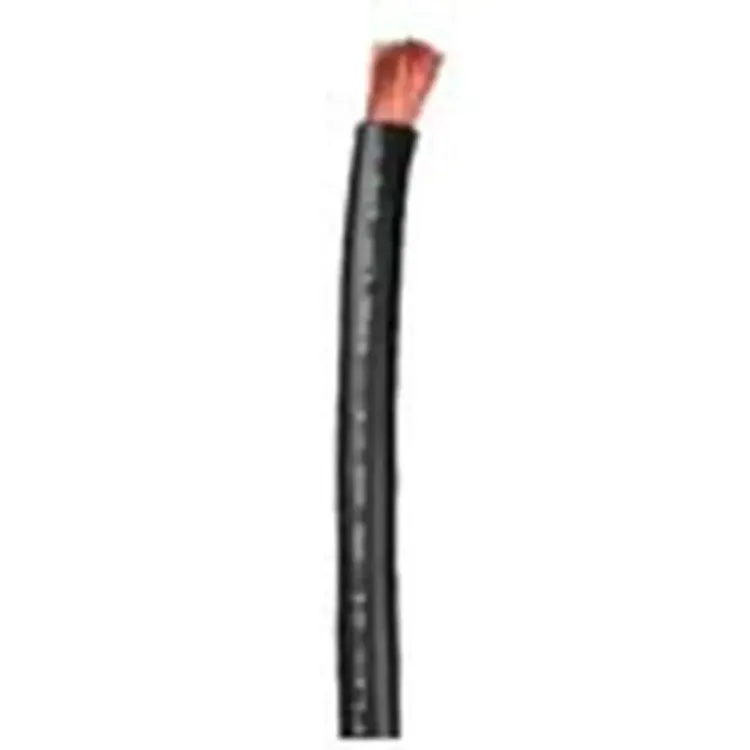

Photo is representative

Welding Cable 50mm2 Black H01N2-E EN 50525-2-81

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 50WC
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £14.28

Gross price

£17.14

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

50mm² H01N2-E arc welding cable for connections between the welding energy source, electrode holder, and workpiece. Suitable for dry and damp environments; temporary outdoor use. Rated for automotive, shipbuilding, conveyor systems, machine tools, and automatic welding machines.

Extra finely stranded bare copper construction with a cross-linked elastomer sheath. Oil, ozone, petrol, and welding-light resistant. Flame-retardant to IEC 60332-1-2.

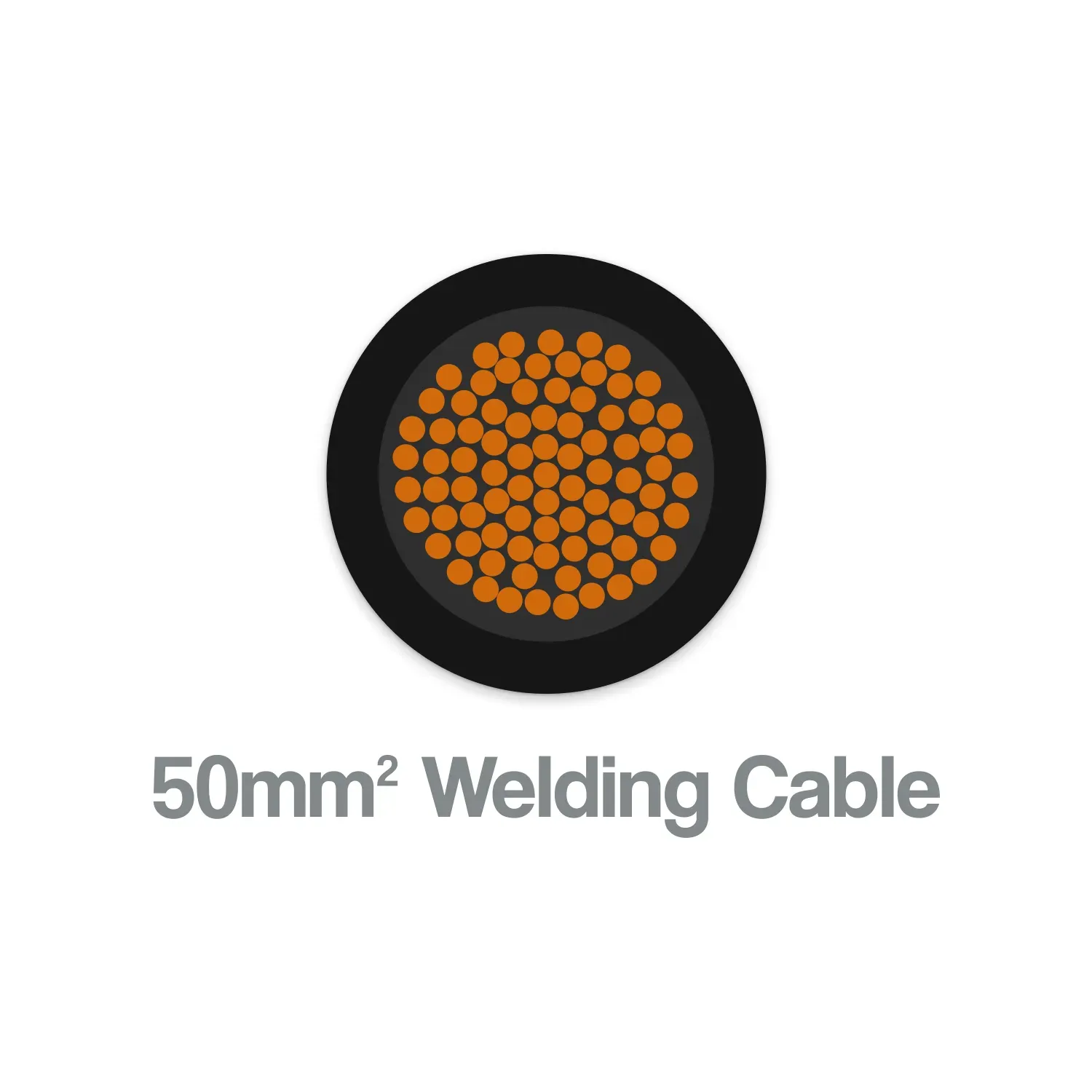

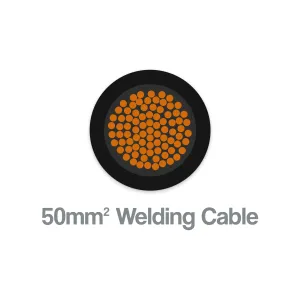

  • 1 × 50mm² conductor, 2830 × 0.15mm strand construction
  • Nominal voltage: 100/100V AC, test voltage 1000V
  • Operating temp: -20°C to +85°C flexible, -35°C to +85°C fixed
  • Outer diameter: 11.9–14.8mm
  • Minimum bend radius: 10× OD
Specifications

Cross-Section

1 × 50 mm²

Strand Construction

2830 × 0.15 mm

AWG (approx.)

1

Nominal Voltage

AC U0/U 100/100 V

Test Voltage

1000 V

Max Conductor Temperature

+85°C

Temperature Range (Flexible)

-20°C to +85°C

Temperature Range (Fixed)

-35°C to +85°C

Outer Diameter

11.9 – 14.8 mm

Minimum Bend Radius

10× Outer-Ø (flexible)

Conductor Material

Copper, bare, extra finely stranded

Sheath Material

Cross-linked elastomer (rubber compound)

Colour

Black

Standard

DIN VDE 0285-525-2-81 / DIN EN 50525-2-81

Flame Retardancy

IEC 60332-1-2 / DIN EN 60332-1-2

Copper Weight

480.0 kg/km

Total Weight

528.0 kg/km
