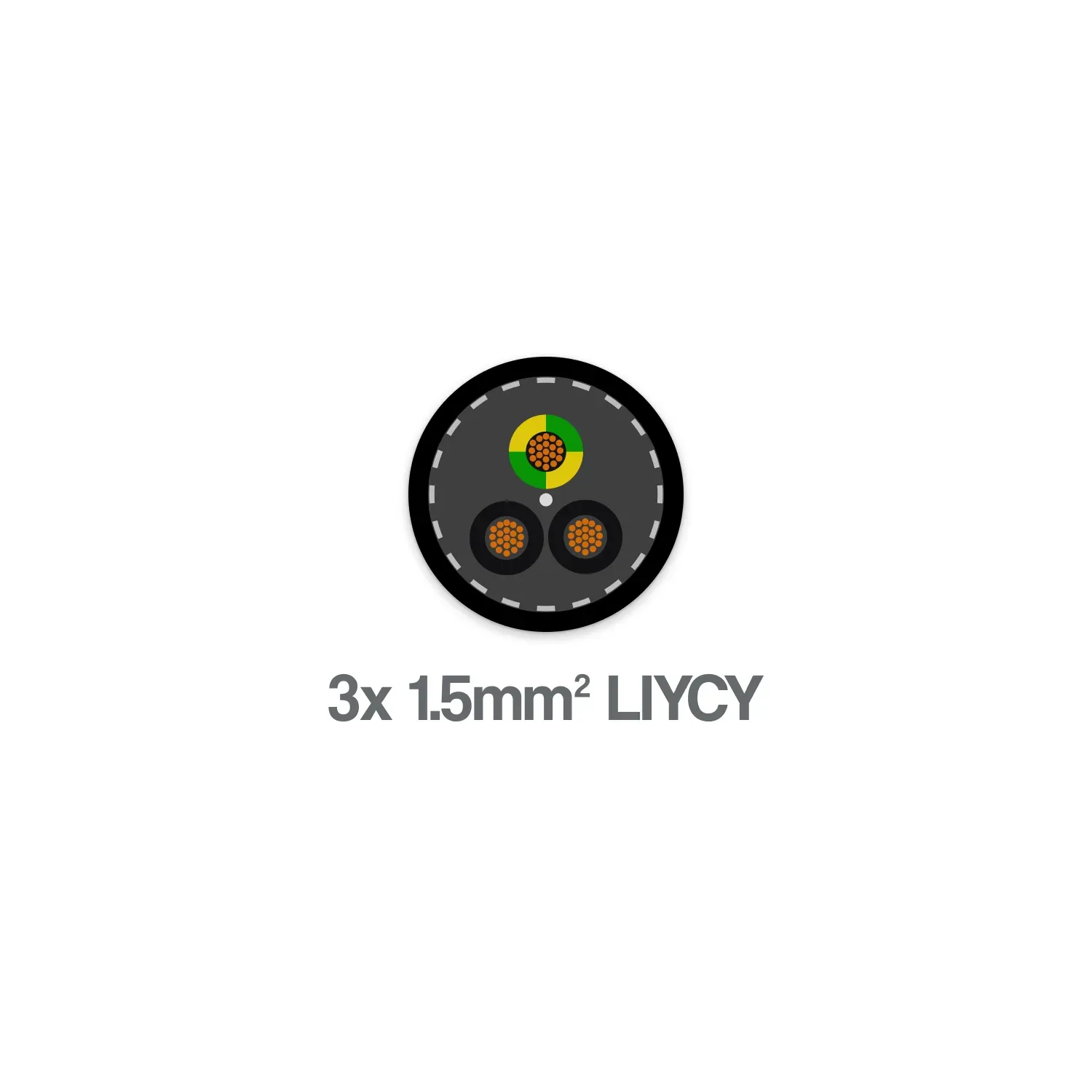

3 Core 1.5mm² LiYCY LSZH Screened Flexible Control Cable 300 500V Grey

Photo is representative

3 Core 1.5mm² LiYCY LSZH Screened Flexible Control Cable 300 500V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 315LIYCY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £1.53

Gross price

£1.84

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

LiYCY screened flexible control cable, 3 core 1.5mm², LSZH insulated and sheathed. Built for installations where fire safety matters — LSZH construction cuts toxic gas and smoke output if there’s a fire.

Tinned copper braid screen for interference protection on data and signal circuits. Includes green/yellow earth core. Suited to measuring, checking, and control equipment in EMC-sensitive or fire-critical areas.

  • 300/500V rated, 24A current carrying capacity (in air at 30°C)
  • LSZH insulation and grey LSZH outer sheath
  • Tinned Cu wire braid screen
  • OD 6.90mm — suits 20/16mm gland
  • Flex temp range -5°C to +70°C, static -20°C to +70°C
Specifications

Standard

BS EN 50525-3-11 / VDE 0250

Voltage Rating

300/500V

Cores

3

CSA

1.5mm²

Stranding

30/0.25mm

Core ID

2 black numbered cores + earth (green/yellow)

Conductor Material

Plain annealed flexible copper

Insulation

Low Smoke Zero Halogen (LSZH)

Screen

Tinned copper wire braid

Sheath

Low Smoke Zero Halogen (LSZH)

Sheath Colour

Grey

Temp Rating (Flexing)

-5°C to +70°C

Temp Rating (Static)

-20°C to +70°C

Outside Diameter

6.90mm

Gland Size

20/16mm

Current Carrying Capacity

24A (in air at 30°C)

Conductor Resistance at 20°C

13.3 Ohm/km

Voltage Drop (3/4 core AC)

25 mV/A/m

Weight

78 kg/km
