7 Core 1.5mm2 LiYCY LSZH Screened Flexible Control Cable 300 500V Grey

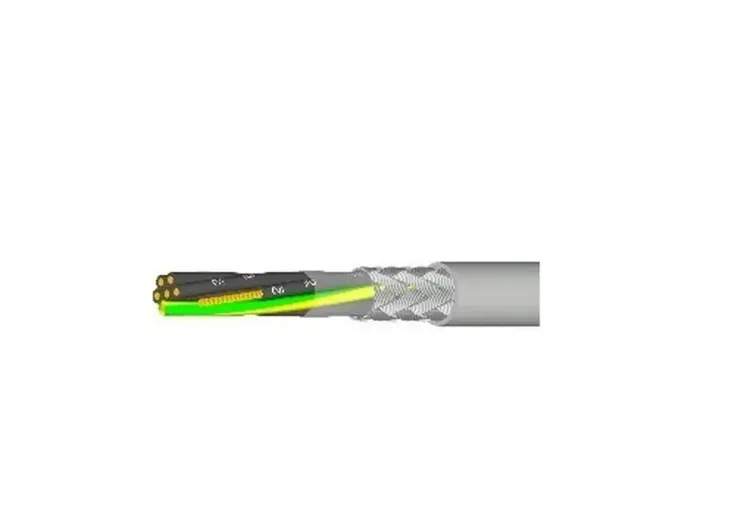

Photo is representative

7 Core 1.5mm2 LiYCY LSZH Screened Flexible Control Cable 300 500V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 715LIYCY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £3.56

Gross price

£4.27

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

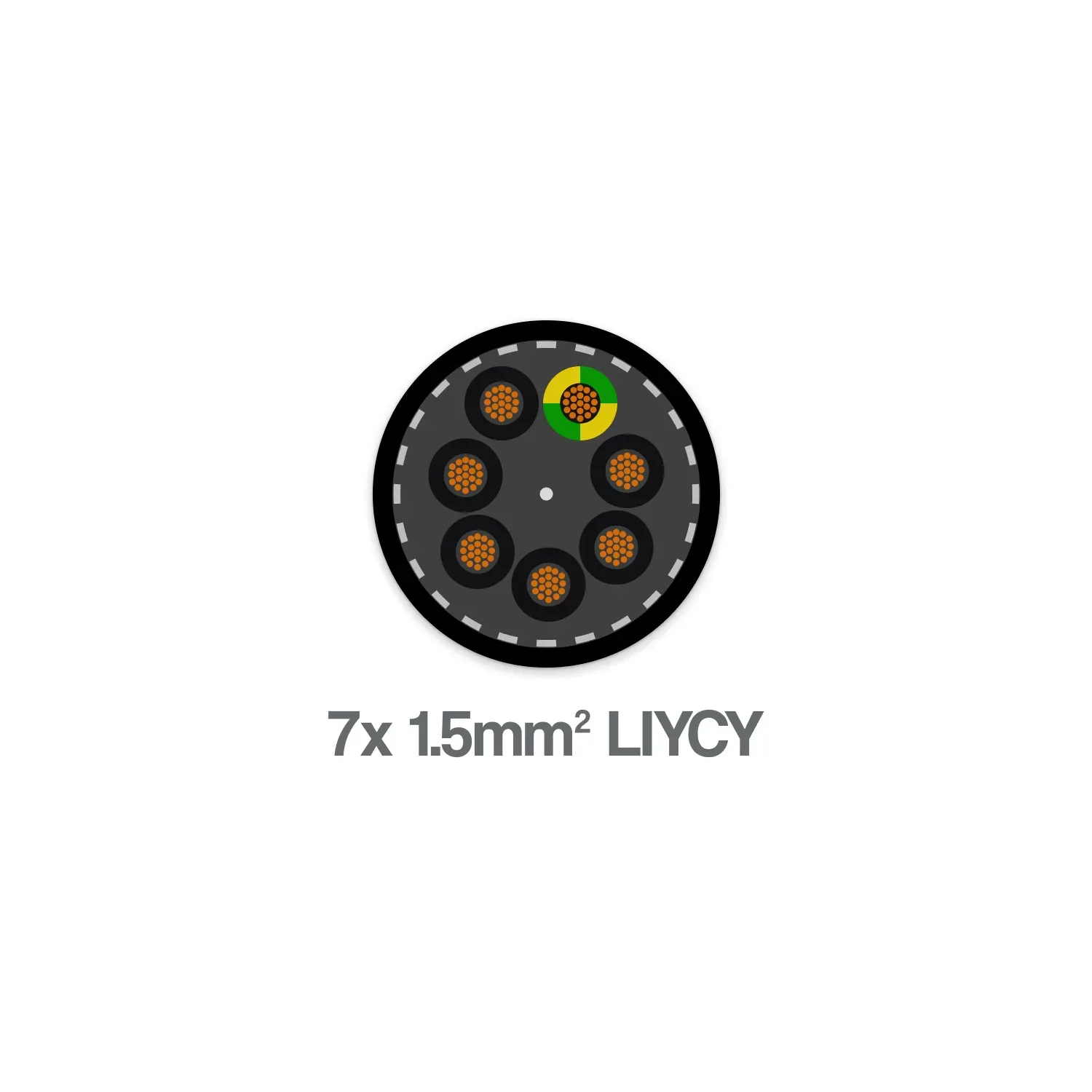

7-core 1.5mm² LiYCY screened control cable with LSZH insulation and sheath. Rated 300/500V to BS EN 50525-3-11 / VDE 0250.

Suited to measuring, checking, and control equipment where EMC screening is required and fire safety is critical. LSZH construction reduces toxic gas and smoke emissions in fire conditions. Includes a G/Y earth core alongside 6 black numbered signal cores.

  • Tinned Cu wire braid screen
  • LSZH insulation and grey LSZH sheath
  • Current carrying capacity: 24A (in air at 30°C)
  • Flex temp range: -5°C to +70°C
  • Stranding: 30⁄0.25mm plain annealed flexible Cu
Specifications

Voltage Rating

300/500V

Number of Cores

7

Conductor Size

1.5mm²

Core Identification

6 black numbered cores + earth (green/yellow)

Stranding

30/0.25mm

Conductor Material

Plain annealed flexible copper

Screen

Tinned copper wire braid

Insulation

Low Smoke Zero Halogen (LSZH)

Sheath

Low Smoke Zero Halogen (LSZH)

Sheath Colour

Grey

Temperature Rating (Flexing)

-5°C to +70°C

Temperature Rating (Static)

-20°C to +70°C

Current Carrying Capacity

24A (in air at 30°C)

Conductor Resistance at 20°C

13.3 Ohm/km

Voltage Drop (3/4 core AC)

25 mV/A/m

Standard

BS EN 50525-3-11 / VDE 0250
