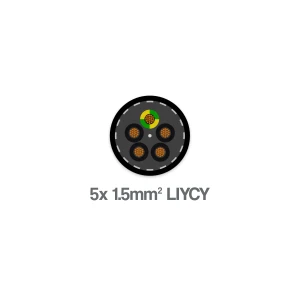

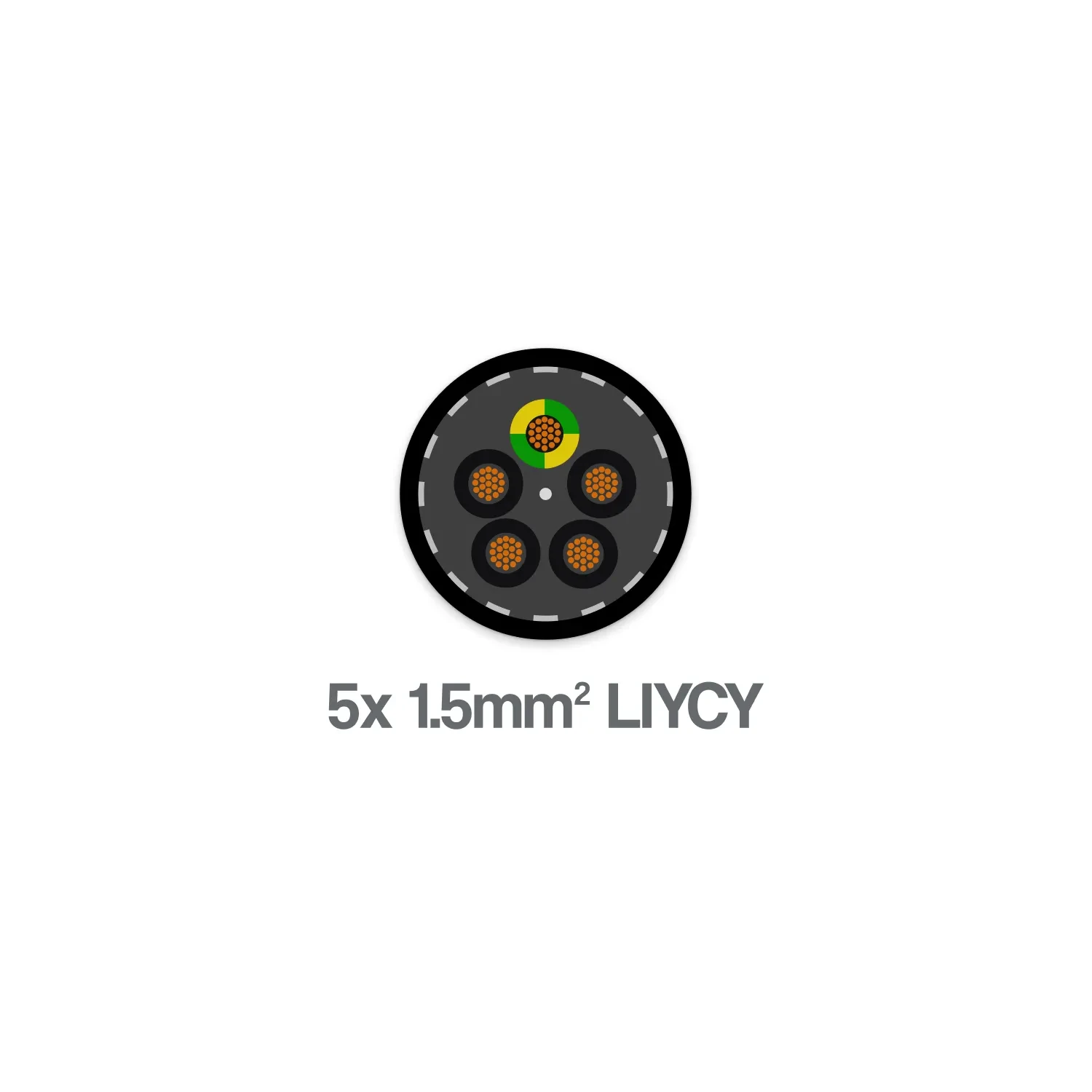

5-Core 1.5sqmm LIYCY Cable

Photo is representative

LIY-CY 5 Core 1.5mm2 300 500V LSZH Screened Flexible Control Cable Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 515LIYCY
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £2.54

Gross price

£3.05

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

5 core 1.5mm2 LIY-CY screened flexible control cable with LSZH insulation and sheath. Tinned Cu wire braid screen for interference protection on data and signal lines. LSZH construction makes it suitable where fire safety is critical — reduced toxic gas and smoke emissions in the event of fire.

Four black numbered cores plus G/Y earth. 20/16mm gland size.

  • Voltage: 300/500V
  • Screen: Tinned Cu wire braid
  • OD: 8.60mm
  • Current carrying capacity (in air, 30°C): 24A
  • Temperature range (flexing): -5°C to +70°C
Specifications

Voltage Rating

300/500V

Cores

5

Conductor CSA

1.5mm²

Stranding

30/0.25mm

Core Identification

4 black numbered cores + earth (green/yellow)

Conductor Material

Plain annealed flexible copper

Insulation

Low Smoke Zero Halogen (LSZH)

Screen

Tinned copper wire braid

Sheath

Low Smoke Zero Halogen (LSZH)

Sheath Colour

Grey

Outside Diameter

8.60mm

Gland Size

20/16mm

Current Carrying Capacity

24A (in air at 30°C)

Temperature Rating (Flexing)

-5°C to +70°C

Temperature Rating (Static)

-20°C to +70°C

Conductor Resistance at 20°C

13.3 Ohm/km

Voltage Drop (3/4 core AC)

25 mV/A/m

Weight

128 kg/km

Standard

BS EN 50525-3-11 / VDE 0250
