Digital 4 zone programmer for efficient control

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

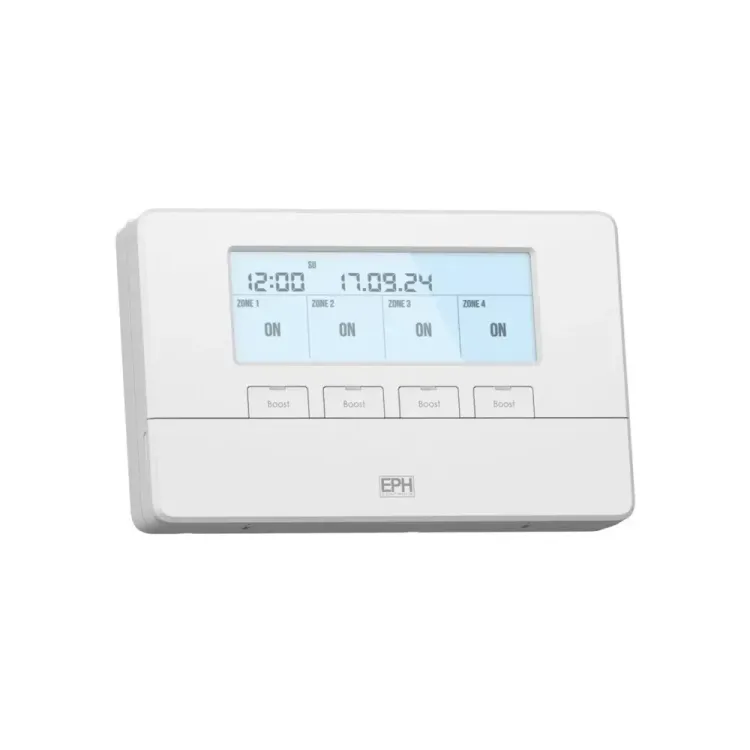

EPH Four Channel Digital Programmer

The EPH Four Channel Digital Programmer is a versatile 4 zone programmer with 3 operating modes - 24h & 7 day. It is perfect for controlling 4 zones in a central heating system. With features like SPST Volt Free switch output, 230VAC power supply, NTC 100K temperature sensor, and more, this programmer ensures precise control and efficient operation.

Stock Code R47
Out of stock

Product Features

  • Battery

    3VDC Lithium LIR2032 & CR2032

  • Backlight

    White

  • Backplate

    British System Standard

  • IP Rating

    IP20

  • Dimensions

    161 x 100 x 31 mm

  • Power Supply

    230VAC

  • Switch Output

    SPST Volt Free

  • Contact Rating

    3(1)A 230VAC

  • Program Memory

    5 Years

  • Software Class

    Class A

  • Pollution Degree

    2 (Resistance to voltage surge 2000V; as per EN60730)

  • Temperature Sensor

    NTC 100K

  • Ambient Temperature

    0 - 50 deg C

  • mpn

    R47

Documents

Brand

EPH Controls
