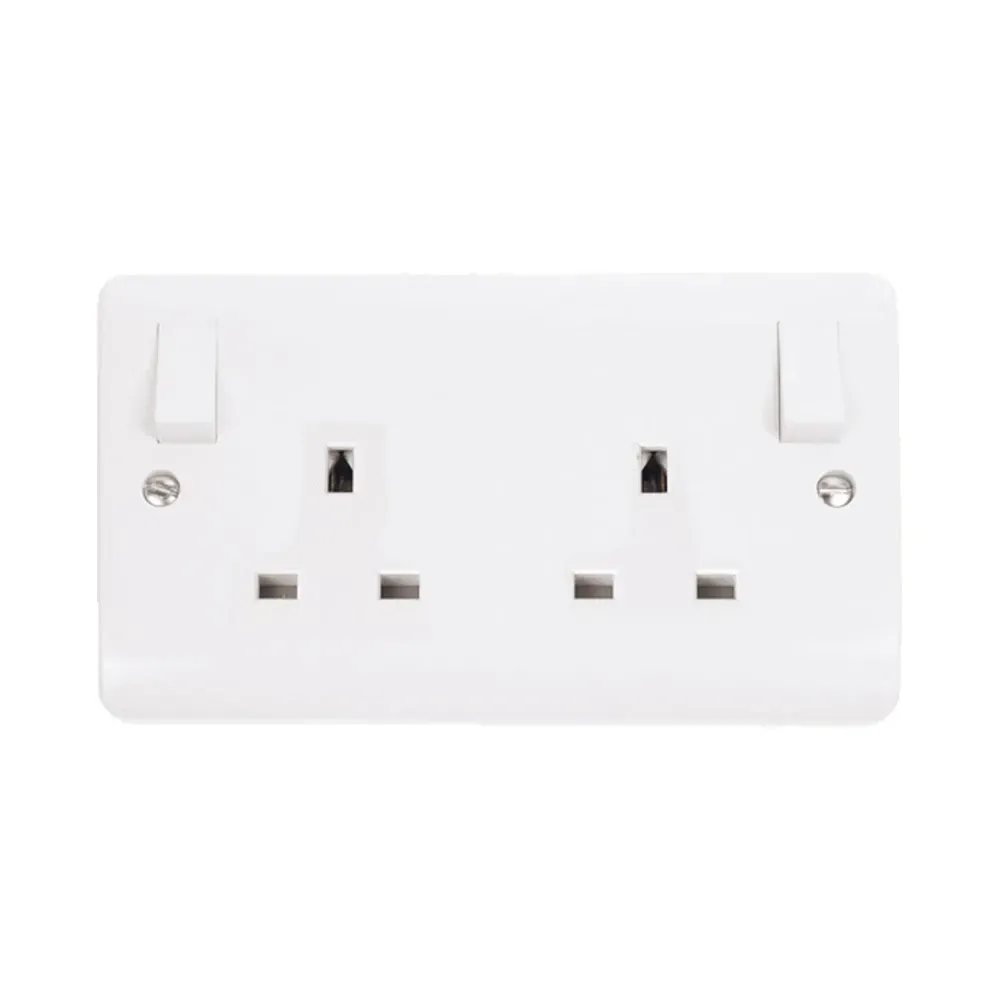

Click CMA1836 13A 2-Gang DP Switched Socket - Polar White
13A 2-gang double pole switched socket outlet with 3-pin safety shutters for domestic installations. Enhanced antimicrobial coating provides 99.9% bacteria kill rate and 92% virus elimination. BS 1363-2 compliant with screw terminals accepting 2x 2.5mm² or 4mm² cables. Features outboard rocker switches and precision 2Nm terminal torque specification. 25mm minimum backbox depth required for flush mounting. Twin earth terminals fitted as standard for faster installation. Click MODE range delivers professional-grade reliability with 25-year warranty coverage. Suitable for ring main circuits with full double pole isolation capability.
Online:
Product Features
| Current Rating | 13A per gang, 250V AC 50Hz |
|---|---|
| Configuration | 2-gang double pole switched with outboard rockers |
| Safety Features | 3-pin shutters require all pins to engage simultaneously |
| Terminal Type | Screw terminals with 2Nm torque specification |
| Terminal Capacity | 3 x 2.5mm² or 2 x 4mm² conductors |
| Backbox Depth | 25mm minimum for flush mounting |
| Plate Dimensions | 146mm x 86mm x 9.5mm depth |
| Compliance Standard | BS 1363-2, CE/UKCA marked, IP20 rated |
| Antimicrobial Coating | 99.9% bacteria kill rate, 92% virus elimination |
| Operating Temperature | -5°C to +40°C ambient range |
| Earth Terminals | Twin earth fitted as standard |
| Materials | Urea front plate with brass terminals |
Installation Specifications
Terminal Torque
2Nm specification prevents over-tightening damage to brass terminals. Use calibrated torque screwdriver for professional installations.
Fixing Centres
120.6mm horizontal spacing matches standard 86x86mm faceplate dimensions. Compatible with existing backbox installations.
Professional Applications
Ring Main Circuits
13A rating suitable for domestic ring final circuits. Double pole switching provides full isolation for maintenance work.
Commercial Installations
25-year warranty coverage supports long-term commercial projects. BS 1363-2 compliance ensures regulatory approval.
Compliance Standards
BS 1363-2
Full compliance with UK socket outlet standard including safety shutter mechanisms and terminal specifications.
CE/UKCA Marking
Dual certification valid for Great Britain and Northern Ireland installations. Meets electromagnetic compatibility requirements.
Frequently Asked Questions
-
What backbox depth is needed for the CMA1836 socket?
Requires 25mm minimum backbox depth for flush mounting. Standard 35mm depth provides optimal cable management space for 2.5mm² ring main cables.
-
Can terminals accept both 2.5mm² and 4mm² cables?
Yes, screw terminals accommodate 3 x 2.5mm² or 2 x 4mm² conductors with 2Nm torque specification. Twin earth terminals fitted as standard.
-
How effective is the antimicrobial coating on bacteria?
Provides 99.9% bacteria kill rate and 92% virus elimination for non-enveloped viruses. Coating is integral to the urea material construction.
-
Is this suitable for bathroom zone 2 installations?
No, IP20 rated for dry locations only. Bathroom zones require IP44 minimum rating per BS 7671 wiring regulations.
-
What makes the safety shutters enhanced compared to standard?
Earth pin alone cannot open live/neutral shutters. All three pins must engage simultaneously, providing superior child protection beyond basic BS 1363 requirements.
