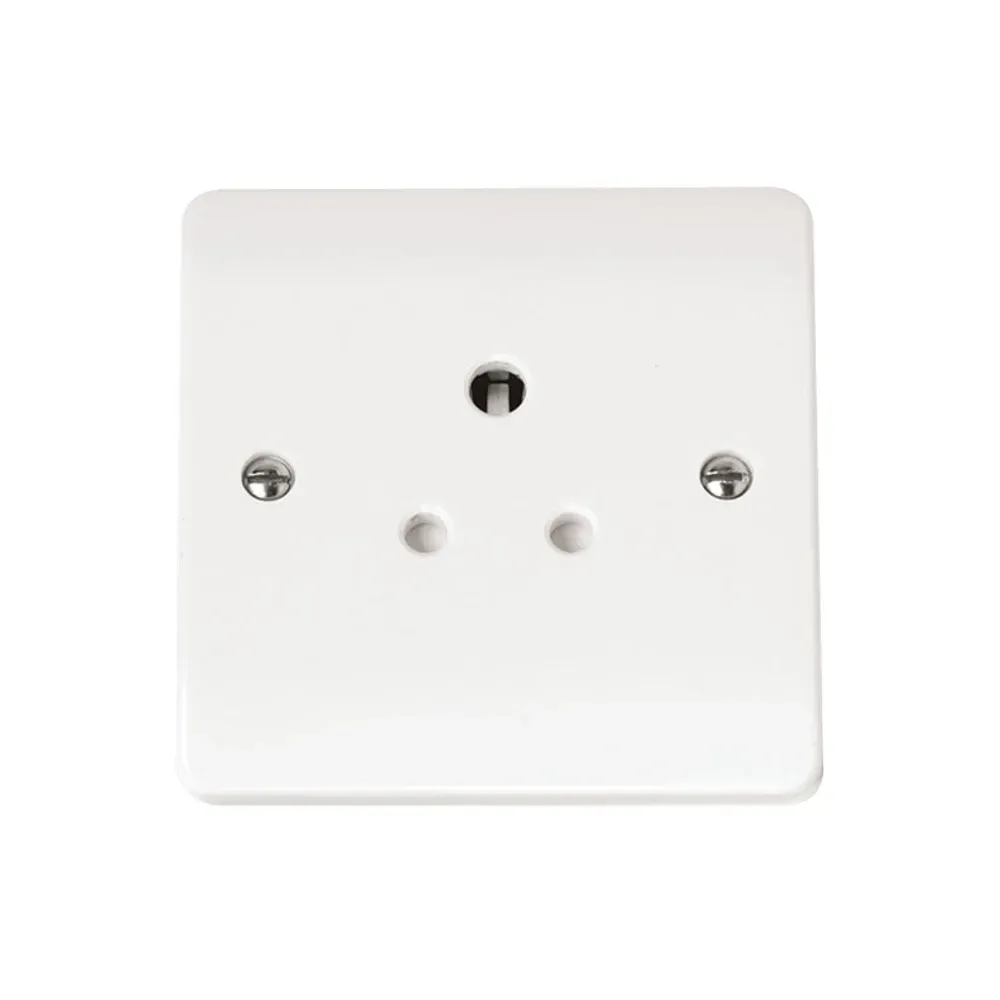

Click Mode 5A 1 Gang Round Pin Socket Outlet - Polar White
5A round pin socket outlet with BS 546 compliance for specialized lighting circuits and legacy equipment connections. Features screw terminals accepting 4x 1.5mm² or 3x 2.5mm² conductors with 1.2Nm torque specification. Compatible with standard 25mm minimum depth backboxes using 60.3mm horizontal fixing centres. Antimicrobial coating certified to Modified ISO 22196 with 99.9% kill rate against MRSA and E-Coli. 25-year manufacturer warranty for professional installations.
Online:
Product Features
| Current Rating | 5A at 250V AC, 50Hz |
|---|---|
| Socket Standard | BS 546:1950 Round Pin Configuration |
| Gang Configuration | 1 Gang Unswitched |
| Terminal Type | Screw terminals 5mm diameter |
| Terminal Capacity | 4x 1.5mm² or 3x 2.5mm² |
| Terminal Torque | 1.2Nm specification |
| Backbox Compatibility | Minimum 25mm depth required |
| IP Rating | IP20 for indoor applications |
| Compliance | CE13 marked, LVD 2006/95/EC |
| Antimicrobial Coating | 99.9% kill rate certified ISO 22196 |
| Operating Temperature | -5°C to +40°C range |
| Warranty Period | 25 years manufacturer guarantee |
Applications
Lighting Circuits
5A rating ideal for residential and commercial lighting circuits requiring round pin socket outlets instead of standard switching arrangements.
Legacy Equipment
Compatible with equipment designed for BS 546 round pin plugs, maintaining original electrical specifications and safety compliance.
Specialized Installations
Professional applications requiring 5A round pin configuration for specific electrical distribution or equipment connection requirements.
Installation
Terminal Connection
Screw terminals require 1.2Nm torque setting. Accept 4x 1.5mm² or 3x 2.5mm² conductors with 5mm diameter terminal screws.
Mounting Requirements
Standard 60.3mm horizontal fixing centres. Compatible with minimum 25mm depth backboxes for flush mounting applications.
Cable Entry
Standard bottom entry cable access. Plan cable routes for -5°C to +40°C operating temperature range requirements.
Standards
BS 546 Compliance
Fully compliant with BS 546:1950 standard for round pin plugs and sockets, ensuring compatibility with specified equipment types.
Safety Certification
CE13 marked with Low Voltage Directive 2006/95/EC compliance. IP20 rating suitable for indoor electrical installations.
Antimicrobial Standard
Modified ISO 22196 certification with 99.9% kill rate against MRSA, E-Coli, Salmonella, and Klebsiella Pneumoniae bacteria.
Frequently Asked Questions
-
What backbox depth is required for the CMA038 installation?
Minimum 25mm backbox depth required. Uses standard 60.3mm horizontal fixing centres for secure mounting in standard UK electrical boxes.
-
Can this socket handle LED lighting circuits?
Yes, 5A rating suitable for LED lighting circuits. Designed for resistive loads up to 5A at 250V AC, ideal for lighting applications.
-
What applications require 5A round pin sockets?
Lighting circuits, legacy equipment connections, and applications requiring BS 546 round pin configuration instead of standard 13A flat pin sockets.
-
What cable sizes fit the screw terminals?
Terminals accept 4x 1.5mm² conductors or 3x 2.5mm² conductors. Use 1.2Nm torque setting with 5mm diameter screw terminals.
-
Is this socket different from standard 13A sockets?
Yes, uses BS 546 round pin configuration at 5A rating, not BS 1363 flat pin 13A standard. Different plug types required.
-
Does this meet current electrical regulations?
Yes, CE13 marked and compliant with Low Voltage Directive 2006/95/EC. Suitable for professional installations requiring BS 546 compliance.
