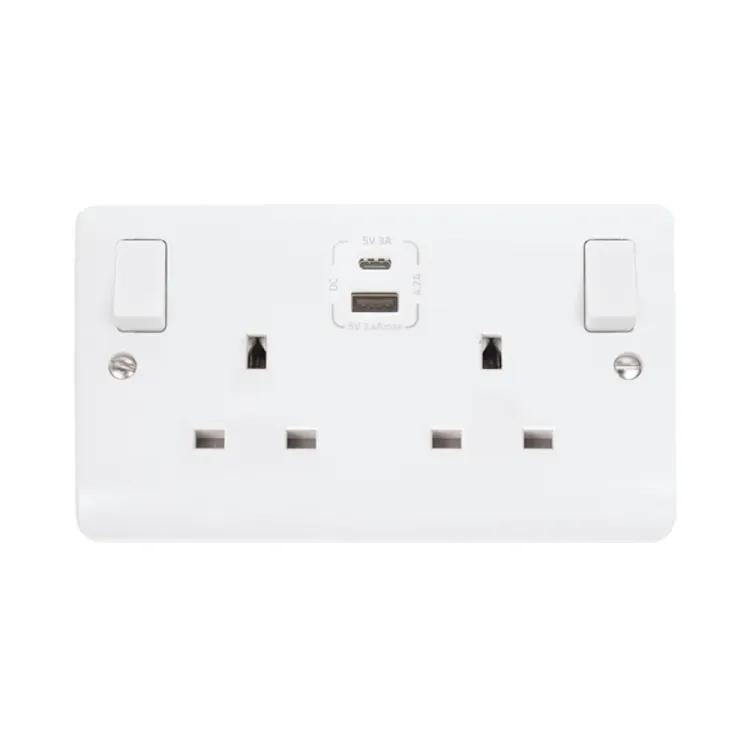

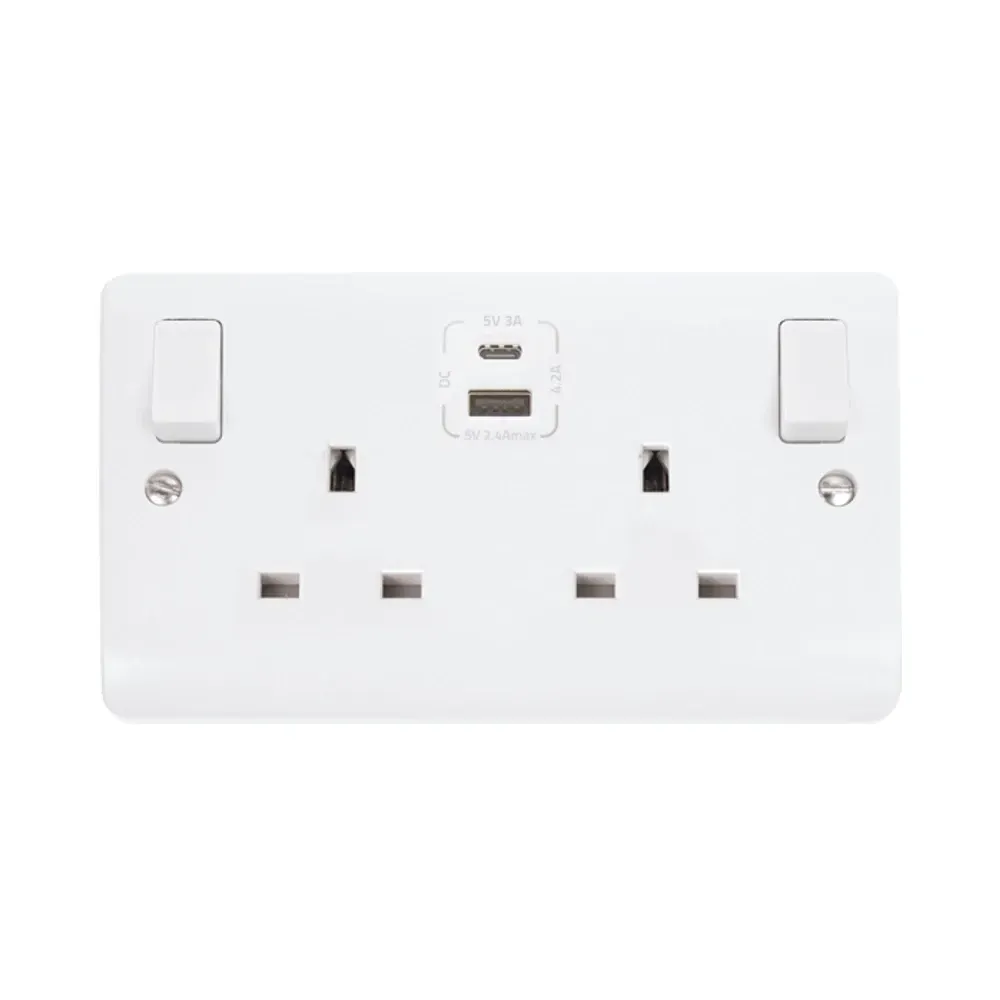

Click CMA786 13A 2-Gang Switched Socket USB Type-A & C - White
13A 2-gang switched socket outlet with integrated 4.2A USB Type-A and Type-C charging ports for domestic installations. Features separate switching control for each socket with 3-pin safety shutters and BS 1363 compliance. Screw terminals accept 3 x 2.5mm² or 2 x 4mm² conductors with 1.2Nm torque specification for secure connections. Compatible with standard 25mm minimum backbox depth for flush mounting installations. Antimicrobial silver ion coating provides 99.9% effectiveness against MRSA, E-Coli and Salmonella for hygiene-critical applications. 25-year warranty on main unit with 2-year electronics warranty demonstrates commercial grade reliability. Twin earth terminals fitted as standard to reduce installation time on ring main circuits.
Online:
Product Features
| Current Rating | 13A per socket |
|---|---|
| Gang Configuration | 2-Gang with individual switching |
| USB Output | Type-A 2.4A + Type-C 3A (4.2A total) |
| Terminal Type | Screw terminals Ø5mm, 1.2Nm torque |
| Cable Capacity | 3 x 2.5mm² or 2 x 4mm² conductors |
| Backbox Compatibility | 25mm minimum depth flush mounting |
| Compliance Standards | BS 1363-2:2016, BS EN IEC 62368-1 |
| IP Rating | IP20 indoor applications |
| Operating Voltage | 250V AC, 50Hz |
| Antimicrobial Coating | 99.9% kill rate certified |
| Warranty Period | 25 years main unit, 2 years electronics |
| Safety Features | 3-pin shutters, twin earth terminals |
Installation Requirements
Terminal Specifications
Screw terminals Ø5mm accept 3 x 2.5mm² or 2 x 4mm² conductors. 1.2Nm torque specification ensures secure connections for ring main or radial circuits.
Mounting Compatibility
25mm minimum backbox depth required. Standard 35mm depth recommended for cable management. Plate dimensions 146mm x 86mm x 9.5mm depth.
Electrical Connection
Twin earth terminals fitted as standard. Operating voltage 250V AC 50Hz with -5°C to +40°C temperature range for domestic applications.
USB Charging Specifications
Type-C Output
3A independent charging at 5V DC. Provides fast charging for modern smartphones, tablets and USB-C devices without sharing current allocation.
Type-A Output
2.4A maximum when used alone, 1.2A when dual charging active. Compatible with standard USB-A devices including phones, power banks.
Power Management
4.2A total system output with intelligent load sharing. 2mA standby current consumption. Compatible with 500V insulation resistance testing.
Frequently Asked Questions
-
What minimum backbox depth is required for the CMA786 installation?
Requires 25mm minimum backbox depth for flush mounting. Standard 35mm backbox provides optimal cable management space for the integrated USB electronics.
-
Can both USB ports charge simultaneously at full amperage?
Type-C delivers 3A independently. Type-A provides 2.4A when used alone or 1.2A when both ports charge simultaneously, totaling 4.2A maximum output.
-
What torque setting should be used for terminal connections?
Terminal screws require 1.2Nm torque for secure connections. Terminals accept 3 x 2.5mm² solid conductors or 2 x 4mm² for higher load circuits.
-
Is this socket suitable for kitchen installations?
Yes, IP20 rating suitable for dry indoor locations. Antimicrobial coating provides 99.9% kill rate against bacteria including MRSA, E-Coli and Salmonella.
-
Does the CMA786 meet current Building Regulations Part P requirements?
Yes, BS 1363-2:2016 compliant with CE UKCA marking. Installation in kitchens may require Part P notification depending on circuit modifications required.
