Click MODE Range: Professional Solutions Across Domestic, Commercial & Hospitality Environments

Core Technical Foundation

The MODE range is built on consistent technical standards that simplify specification and installation:

• Unified Dimensions: 86mm x 86mm faceplate standard with consistent fixing centres
• Flexible Backbox Compatibility: 16mm to 25mm minimum depth options across product categories

• Professional Terminal Specifications: Screw terminals with defined torque values (0.5Nm to 2Nm)
• Comprehensive Compliance: BS 1363, BS EN 60669-1, BS 1363-4 standards coverage
• 25-Year Mechanical Warranty: Commercial-grade reliability with 2-year electronics coverage

Antimicrobial Performance Advantage

All MODE products feature independently certified antimicrobial properties:

• 99.9% bacterial kill rate against MRSA, E-Coli, Salmonella, Klebsiella Pneumoniae

• Antiviral effectiveness: 99.9% enveloped viruses, 92% non-enveloped viruses
• Certified coating integration within urea formaldehyde construction material

This specification becomes critical in hygiene-sensitive environments across all three application sectors.

Kitchen Installations: Power Plus Connectivity

Modern domestic kitchens require electrical accessories that combine traditional power delivery with contemporary device charging requirements.

Worktop Circuit Solutions

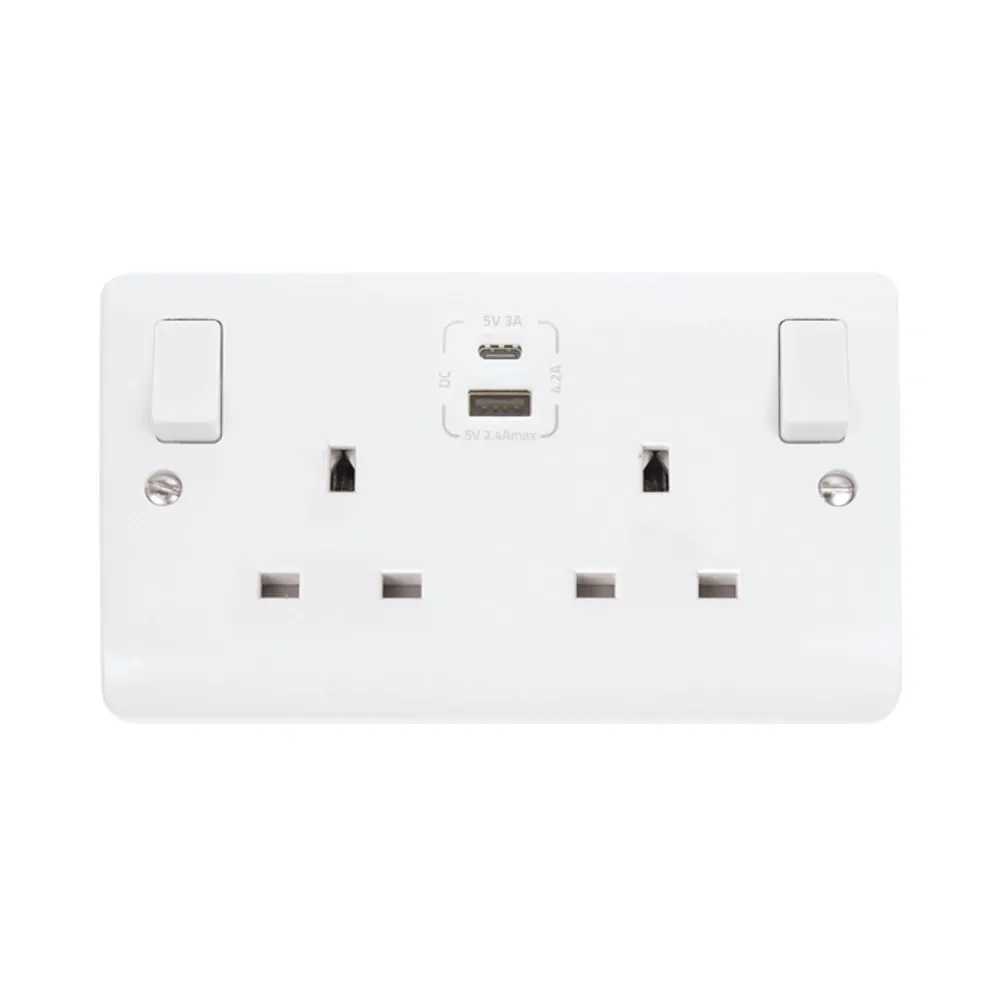

The CMA786 13A 2-Gang USB Type-A & C Socket addresses modern kitchen demands:

• Dual USB output: Type-A (2.4A) + Type-C (3A) for 4.2A total charging capacity
• Independent switching control for each 13A outlet
• Screw terminals: Accept 3 x 2.5mm² or 2 x 4mm² conductors (1.2Nm torque)
• 25mm minimum backbox compatibility for retrofit installations

Professional installation consideration: The 4.2A USB output requires careful load calculation when multiple units are installed on a single 20A circuit, particularly in kitchen applications where appliance loads vary significantly.

Alternative USB Solutions

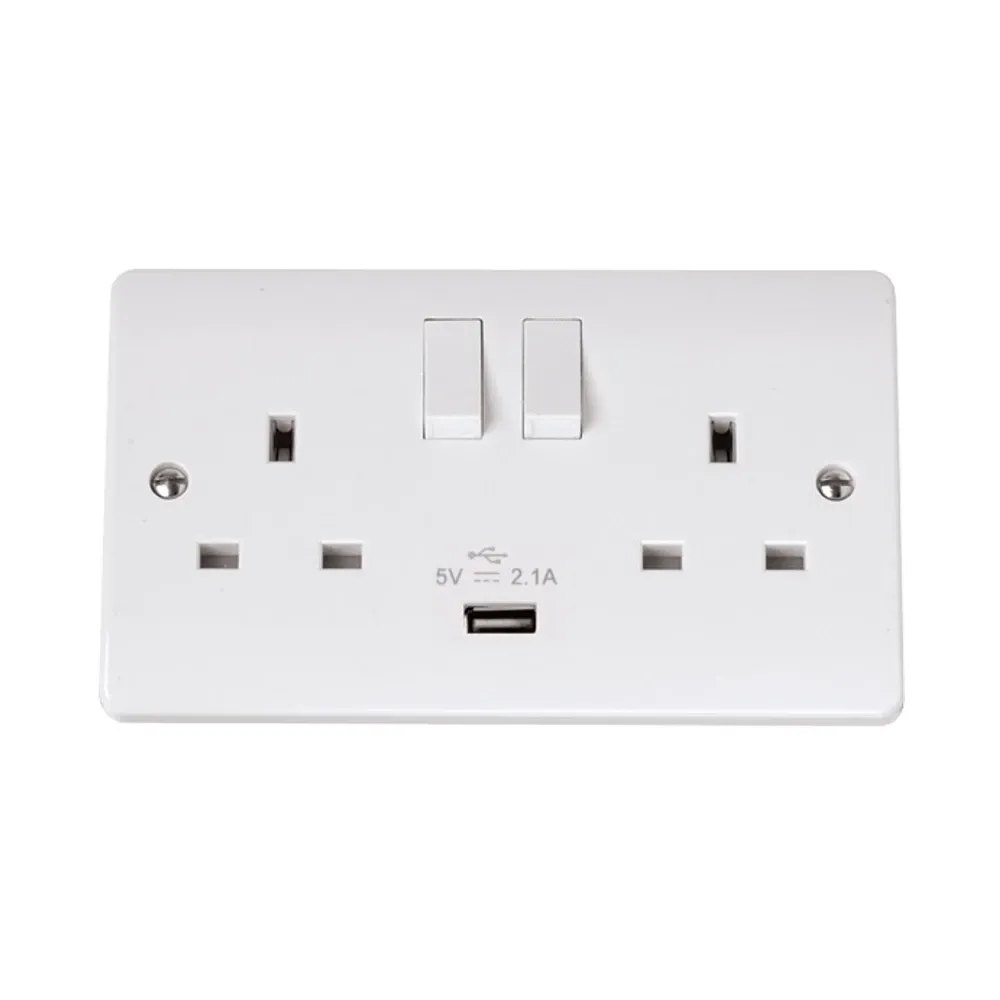

For installations requiring single USB output, the CMA770 13A 2-Gang USB Type-A Socket provides:

• 2.1A USB Type-A output suitable for standard device charging
• Identical terminal specifications (1.2Nm torque, multiple conductor options)
• Cost-effective solution for single-family dwellings with lower charging demands

Fixed Appliance Connections: Professional Control

Immersion Heater Circuits

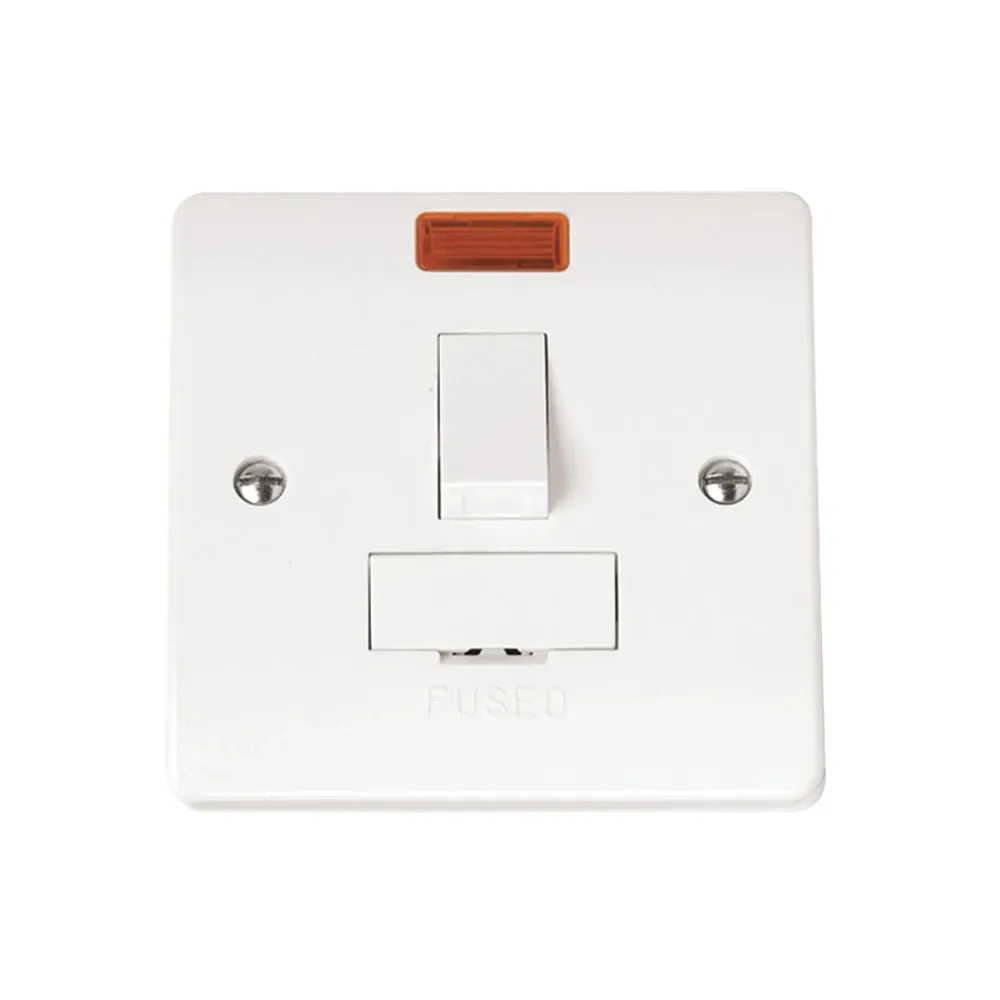

The CMA652 13A DP Switched FCU with LED provides essential control for domestic heating systems:

• Double pole switching for complete electrical isolation (BS 7671 requirement)
• Orange neon indicator confirms circuit status
• 2Nm torque specification for secure high-current connections
• BS 1363-4 compliance for fused connection unit applications

High-Current Load Switching

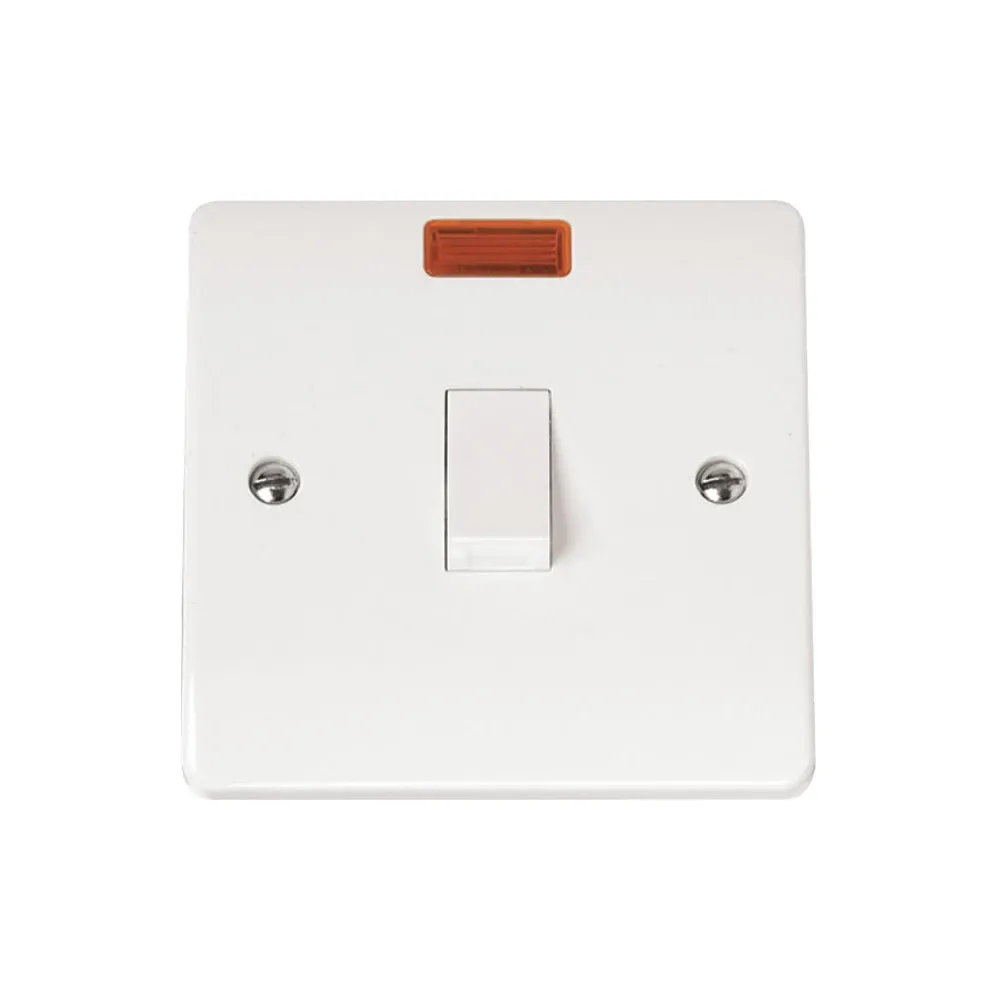

For loads exceeding 13A, the CMA623 20A DP Plate Switch handles:

• 20A resistive loads up to 4.8kW (immersion heaters, storage heaters)
• 1.8Nm terminal torque for 3 x 2.5mm² conductors
• Orange neon confirmation of switching status

Multi-Gang Control Solutions

Lighting Circuit Management

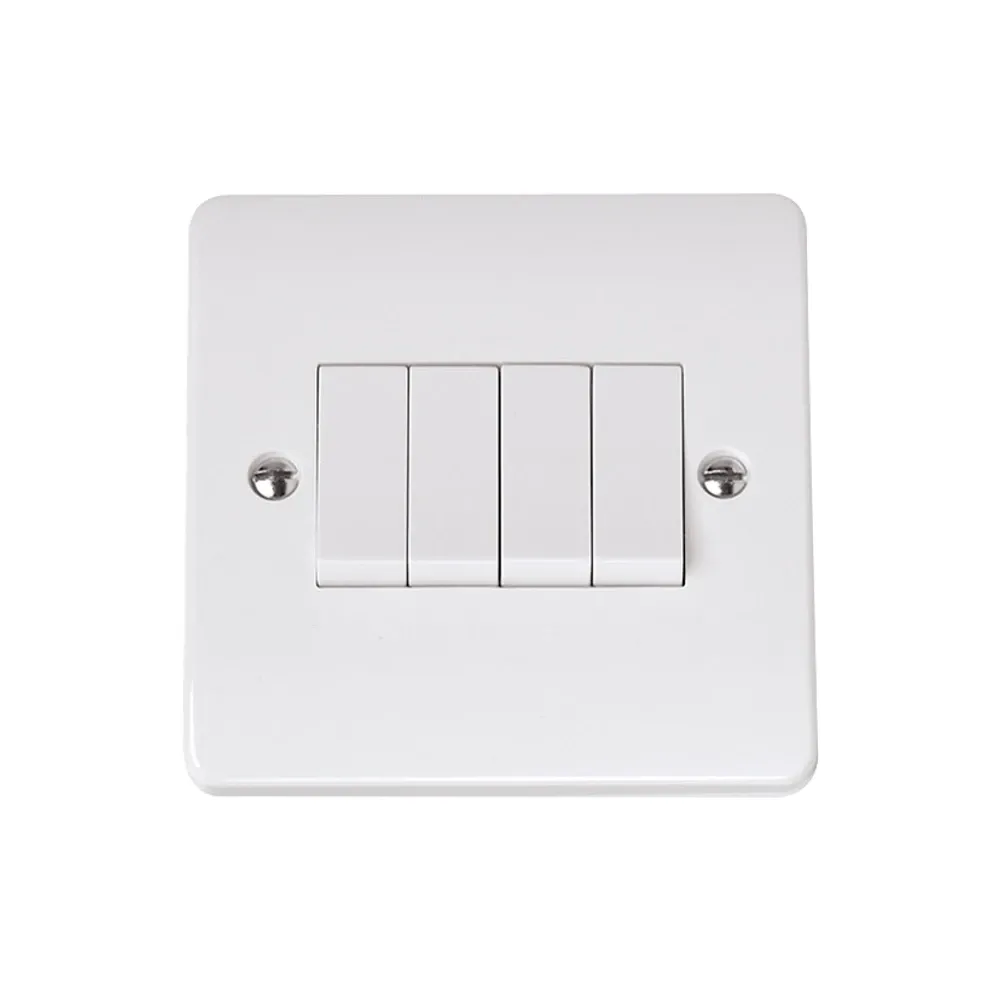

The CMA9014 10AX 4-Gang 2-Way Switch excels in domestic applications requiring multiple circuit control:

• 10AX inductive load rating suitable for fluorescent and LED installations
• 16mm minimum backbox ideal for shallow installations
• Silver overlay copper contacts ensure reliable switching of reactive loads
• 0.5Nm terminal torque for 2 x 1.5mm² lighting circuits

Office Environment Installations

Desk-Mounted Power Solutions

Commercial office installations benefit from the MODE range’s antimicrobial properties and robust construction:

Workstation Circuits: The CMA786 USB socket combination addresses modern office requirements where desk-mounted installations must provide both appliance power and device charging without requiring separate USB adapters.

Professional Installation Advantage: Twin earth terminals fitted as standard reduce installation time on ring main circuits, particularly valuable in commercial installations where labor efficiency directly impacts project profitability.

Retail and Public Spaces

High-Touch Surface Applications

The antimicrobial certification becomes particularly relevant in retail environments:

• 99.9% bacterial kill rate maintains hygiene standards in public access areas
• 25-year warranty provides long-term value for commercial property managers
• Consistent polar white finish maintains professional appearance across installations

Load Management for Commercial Equipment

Commercial applications often require precise load control:

Equipment Isolation: The CMA652 fused connection unit provides local isolation for:

• POS terminal connections
• Display lighting systems

• HVAC control circuits
• Security system power supplies

The double pole switching ensures complete electrical isolation required by many equipment manufacturers’ warranty conditions.

Industrial and Workshop Applications

High-Current Control Requirements

The CMA623 20A double pole switch addresses industrial applications:

• Workshop equipment control up to 5kW rating
• Process heating applications requiring reliable switching
• Motor control circuits where definitive on/off indication is critical

Installation Efficiency Factors

Professional installers in commercial environments benefit from:

• Consistent terminal specifications across the product range
• Standardized torque values reducing tool changes during installation
• Twin earth terminal provision on socket outlets eliminating additional connections

Hotel and Guest Accommodation

Guest Room Electrical Systems

Hospitality applications present unique challenges combining high usage with hygiene requirements:

Bedside Installations: The CMA770 USB socket provides guest convenience while meeting commercial durability requirements:

• 2.1A USB output suitable for overnight device charging
• Independent socket switching allows lamp control while maintaining charging
• Antimicrobial surface treatment addresses hygiene concerns in high-occupancy environments

Professional Specification Consideration: The 2mA USB standby current should be calculated across multiple guest rooms to determine cumulative load on hotel electrical systems.

Restaurant and Food Service

Kitchen Equipment Integration

Commercial kitchen applications require accessories meeting both electrical and hygiene standards:

Equipment Connection Points: The CMA652 fused connection unit addresses food service requirements:

• Local isolation switching for catering equipment maintenance
• BS 1363-4 compliance meets commercial equipment connection standards

• Antimicrobial properties critical in food preparation environments

High-Current Applications: The CMA623 20A switch controls commercial kitchen equipment:

• Commercial dishwashers requiring 20A supply
• Water heating equipment up to 4.8kW rating
• Extraction systems with definitive on/off confirmation via neon indicator

Conference and Event Spaces

Flexible Power Distribution

Conference facilities require electrical accessories supporting varied equipment configurations:

Presentation Equipment Support: USB-equipped sockets eliminate the need for separate charging adapters in meeting rooms, while maintaining professional installation appearance.

AV Equipment Control: FCU applications provide isolated control for:

• Projector power supplies
• Audio system amplifiers

• Lighting control equipment
• HVAC system integration

Maintenance and Service Considerations

Long-Term Performance Factors

Hospitality applications benefit from the MODE range’s service-friendly design:

Reduced Maintenance Requirements: The antimicrobial coating reduces cleaning frequency requirements while maintaining hygiene standards.

Warranty Coverage: The 25-year mechanical warranty provides long-term cost certainty for hospitality property managers, while the 2-year electronics warranty on USB-equipped products aligns with typical technology refresh cycles.

Load Analysis and Circuit Design

Current Rating Hierarchy

• 13A outlets: Standard domestic and light commercial applications
• 20A switching: High-current single appliances (storage heaters, immersion heaters)
• 10AX switching: Inductive loads (fluorescent lighting, motor applications)

USB Output Selection

• 2.1A Type-A (CMA770): Single device charging, cost-sensitive applications
• 4.2A Type-A/C (CMA786): Multiple device charging, premium installations

Installation Planning Considerations

Backbox Depth Requirements

• 16mm minimum: Multi-gang switches (CMA9014)
• 25mm minimum: Socket outlets and FCUs across the range

Terminal Specifications

• 0.5Nm torque: Lighting circuits (2 x 1.5mm²)
• 1.2-1.8Nm torque: Power circuits (up to 3 x 2.5mm² or 2 x 4mm²)
• 2Nm torque: FCU applications requiring maximum connection security

Compliance and Standards Integration

Domestic Installation Requirements

• Part P notification: Kitchen installations may require notification
• BS 7671 compliance: Double pole switching for certain appliance types
• Building Regulations: Accessible switching requirements

Commercial Installation Standards

• CDM Regulations: Product selection supporting maintenance requirements
• Fire Safety: Compliance with building-specific fire strategy requirements
• Disability Act: Accessible height and operation considerations

Professional Installation Procedures

Terminal Connection Protocol

1. Conductor preparation: Strip to manufacturer specification (typically 12-15mm)
2. Terminal insertion: Ensure full conductor engagement before tightening
3. Torque application: Use calibrated screwdriver to specified value
4. Visual verification: Confirm no conductor strands visible outside terminal

Testing and Commissioning

• Insulation resistance: 500V testing compatible across the range
• Polarity verification: Critical for switched neutral applications
• RCD testing: Ensure compatibility with protective devices

Quality Assurance During Installation

Connection Security Verification

The specified torque values ensure optimal connection reliability: - Under-torquing: Increases connection resistance, potential overheating - Over-torquing: Risk of terminal damage, reduced service life

Environmental Considerations

• Operating temperature: -5°C to +40°C across the range
• IP20 rating: Suitable for standard indoor applications only
• Altitude limitations: Standard products suitable to 2000m altitude

Total Cost of Ownership Analysis

Initial Specification Costs The MODE range pricing structure reflects the technical specifications and warranty coverage provided. Professional electricians should consider:

Value Engineering Opportunities

• USB integration: Eliminates separate adapter requirements, reducing visible cable management
• Twin earth provision: Reduces installation time on ring main circuits
• Consistent terminal specifications: Reduces tool requirements across installation

Long-Term Performance Value

Warranty Structure Benefits

• 25-year mechanical warranty: Exceeds typical building component lifecycles
• 2-year electronics warranty: Aligns with technology refresh expectations
• Antimicrobial certification: Reduces cleaning and maintenance requirements

Specification Risk Management Professional electricians specifying the MODE range benefit from:

• Established compliance record: Consistent BS standards adherence
• Technical support availability: Scolmore technical department assistance
• Product availability: Established distribution network across Ireland and UK

The Click MODE range provides professional electricians with a comprehensive solution addressing the technical and commercial requirements of modern electrical installations. From domestic USB integration to commercial antimicrobial requirements, the range’s consistent technical foundation simplifies specification while delivering measurable performance advantages.

The combination of established compliance standards, professional warranty coverage, and installation-friendly design details positions the MODE range as a strategic specification choice for electricians serving diverse market sectors.

Key Professional Advantages:

• Technical consistency across product categories simplifies specification and installation
• Compliance certainty through established standards adherence and certification
• Commercial warranty structure provides long-term value and risk management
• Installation efficiency features directly support project profitability

Electricians across Ireland and UK seeking reliable, code-compliant solutions that perform consistently across domestic, commercial, and hospitality applications, the Click MODE range delivers the technical foundation required for successful project outcomes.

This technical guide is based on current product specifications and Irish/UK electrical standards. Professional electricians should verify specific requirements against current regulations and manufacturer documentation for individual project applications.
