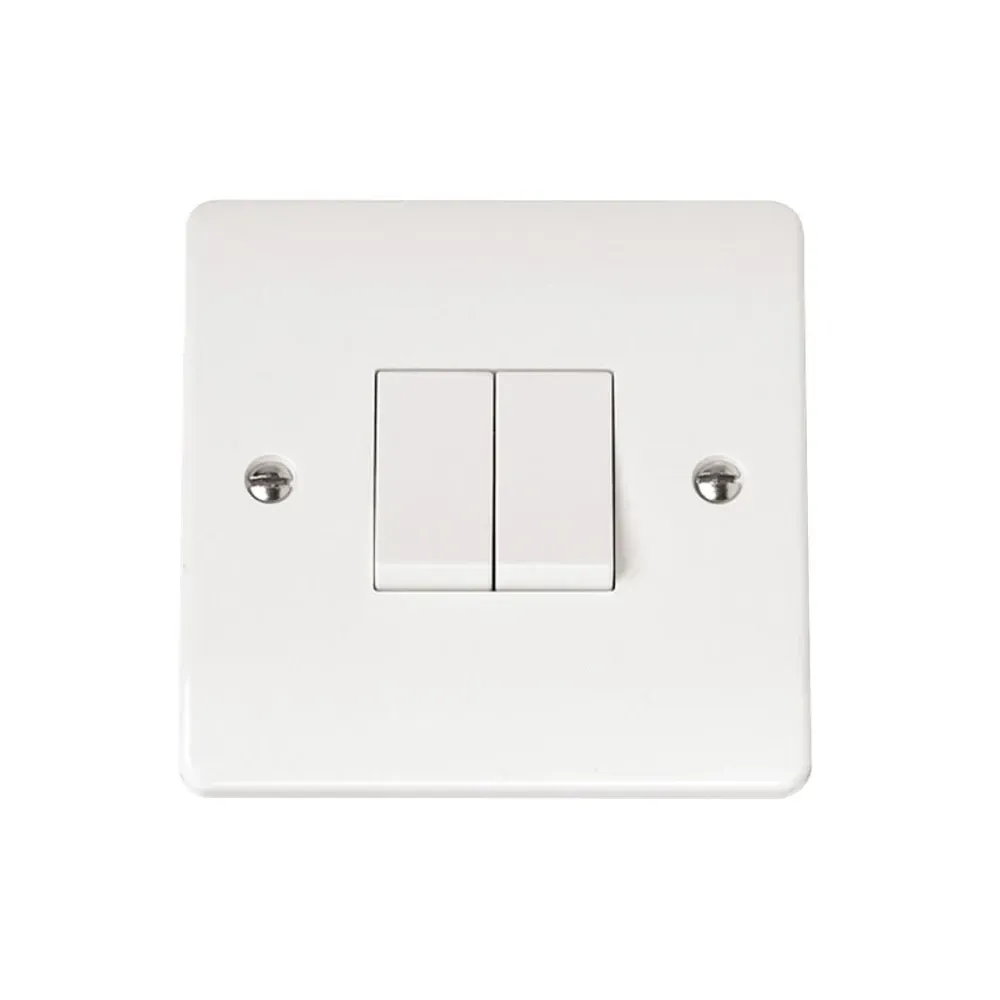

Photo is representative
Click Mode 10A 2-Gang 2-Way Switch - Polar White
10A 2-gang 2-way plate switch for domestic lighting circuits, compatible with inductive loads. Features Click’s MiniGrid modular system with interchangeable rocker switches and screw terminals accepting 4 x 1.5mm² or 2 x 2.5mm² conductors. Antimicrobial certified polar white finish with 99.9% bacteria kill rate and rounded profile design. Requires minimum 16mm backbox depth with 86x86mm faceplate dimensions. BS EN 60669-1 compliant construction includes brass terminals with 0.5Nm torque specification and 20-year warranty for professional confidence. Operational temperature range -5°C to +40°C suitable for standard domestic environments.
Online:
Product Features
| Current Rating | 10AX resistive, 10A inductive load |
|---|---|
| Voltage Rating | 250V~ 50Hz |
| Gang Configuration | 2-gang 2-way switching |
| Terminal Type | Screw terminals Ø3.5mm, 0.5Nm torque |
| Terminal Capacity | 4 x 1.5mm² or 2 x 2.5mm² solid conductors |
| Backbox Requirements | Minimum 16mm depth |
| Plate Dimensions | 86mm (W) x 86mm (H) x 9.5mm (D) |
| Modular System | MiniGrid Range compatible, 2 single or 1 double width module |
| Compliance Standard | BS EN 60669-1, CE/UKCA marked |
| IP Rating | IP20 for indoor use |
| Antimicrobial Protection | 99.9% bacteria kill rate certified |
| Operational Temperature | -5°C to +40°C |
| Warranty Period | 20 years manufacturer warranty |
| Construction Materials | Urea formaldehyde faceplate, nylon rear housing |
Applications
Domestic Lighting Control
2-way switching for hallways, stairs and landings. 10A rating handles multiple LED or conventional lighting circuits with inductive load compatibility.
Commercial Office Lighting
Suitable for office and retail lighting control where antimicrobial properties provide hygiene benefits. 20-year warranty reduces maintenance costs.
Modular System Integration
MiniGrid compatibility allows mixing with other Click modules in same plate. Single or double width module configurations for flexible installation.
Installation
Terminal Connections
Screw terminals with 0.5Nm torque specification using Ø3.5mm screwdriver. Brass terminals with steel screws provide long-term connection reliability.
Mounting Requirements
Standard 86x86mm faceplate with 60.3mm horizontal fixing centres. Requires minimum 16mm backbox depth for proper installation clearance.
Modular Assembly
Interchangeable rocker switches within MiniGrid system. Single-screw fixing secures modules with front-accessible adjustment for precise alignment.
Standards
BS EN 60669-1 Compliance
Meets European standard for household switches up to 440V/63A. Testing covers mechanical endurance, temperature rise and contact resistance.
Antimicrobial Certification
Independent testing confirms 99.9% kill rate for bacteria and enveloped viruses, 92% effectiveness against non-enveloped viruses for improved hygiene.
Frequently Asked Questions
-
What backbox depth is required for this 2-gang switch?
Minimum 16mm backbox depth required. Standard 25mm or 35mm domestic backboxes provide ample clearance for installation and wire management.
-
Can this switch control LED lighting circuits?
Yes, 10A rating handles LED loads easily. Inductive load compatibility ensures reliable switching with LED drivers and transformers without damage.
-
Is this switch suitable for bathroom lighting control?
IP20 rating limits use to dry areas only. For bathroom zones, specify IP44 rated switches designed for moisture protection.
-
What conductor sizes fit the screw terminals?
Terminals accept 4 x 1.5mm² or 2 x 2.5mm² solid conductors. Torque to 0.5Nm using Ø3.5mm flat blade screwdriver per manufacturer specification.
-
Are Click Mode modules interchangeable with other brands?
MiniGrid Range modules only compatible within Click system. Module dimensions and fixing centres proprietary to Click MiniGrid specification.
-
Does this switch meet current wiring regulation standards?
Yes, BS EN 60669-1 compliance meets BS 7671 18th Edition requirements. CE/UKCA marking confirms conformity with UK electrical safety standards.
