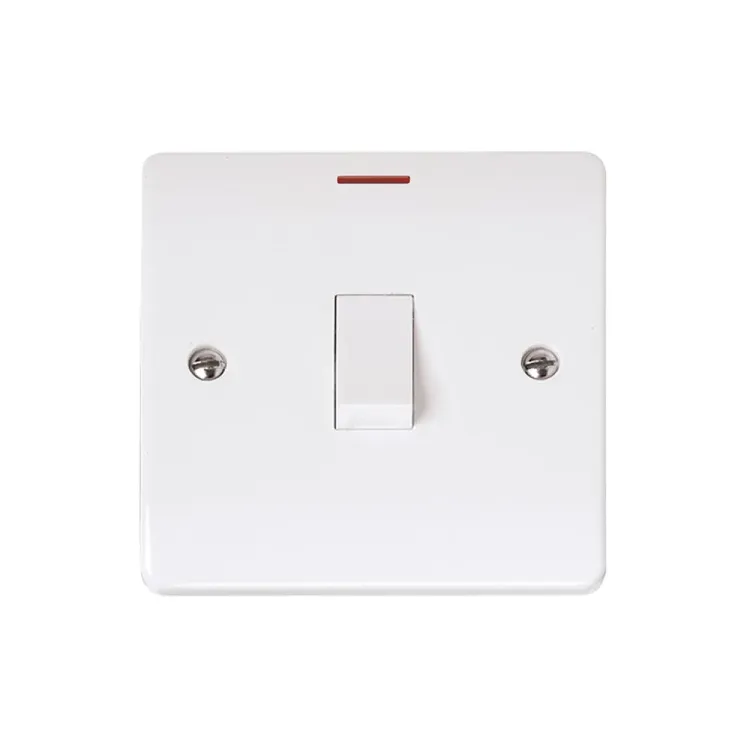

Photo is representative

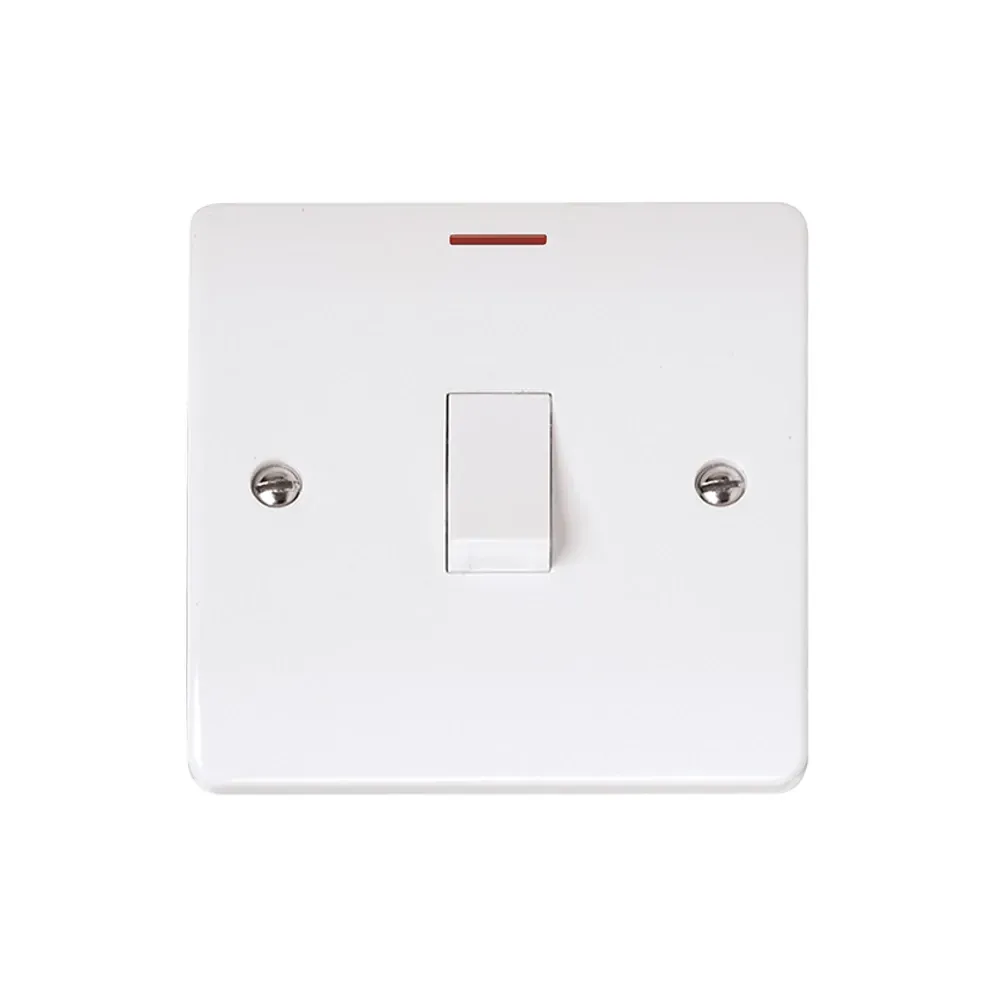

Click Mode 20A 1-Gang DP Switch With LED - CMA2623
20A double pole plate switch with integrated red LED indicator for immersion heater and high current appliance control. Screw terminals accept 3x 2.5mm² conductors with 1.8Nm torque specification for secure connections. 25-year warranty with antimicrobial silver ion technology providing 99.9% kill rate against MRSA, E-Coli and Salmonella. BS EN 60669-1 compliant with twin earth terminals fitted. 25mm minimum backbox depth for flush mounting in standard installations. Click Mode range delivers professional-grade switching for domestic and light commercial applications requiring reliable isolation of high current loads.
Online:
Product Features
| Current Rating | 20A Double Pole |
|---|---|
| LED Indicator | Red LED |
| Terminal Configuration | Screw terminals - 3x 2.5mm² |
| Terminal Torque | 1.8Nm |
| Backbox Depth | 25mm minimum |
| Compliance Standard | BS EN 60669-1 |
| Operating Temperature | -5°C to +40°C |
| IP Rating | IP20 |
| Antimicrobial Protection | 99.9% kill rate MRSA, E-Coli, Salmonella |
| Twin Earth | Pre-fitted terminals |
| Plate Dimensions | 86x86x9.5mm |
| Warranty | 25 years |
Documents
Installation Specifications
Terminal Configuration
Screw terminals with 5mm diameter accepting 3x 2.5mm² conductors. 1.8Nm torque specification ensures secure connection without over-tightening.
Mounting Requirements
25mm minimum backbox depth with 60.3mm horizontal fixing centres. Standard 86x86mm faceplate dimensions fit existing installations.
Professional Applications
Immersion Heater Control
20A rating handles standard 3-4kW immersion heaters with DP isolation. LED indicator shows heating status from switch position.
High Current Appliances
Suitable for appliances up to 20A at 250V AC. Double pole switching provides complete circuit isolation for maintenance.
Commercial Applications
Antimicrobial properties ideal for healthcare, catering and education sectors. 25-year warranty supports long-term installations.
Frequently Asked Questions
-
What backbox depth required for CMA2623 installation?
25mm minimum backbox depth required for flush mounting. Standard 35mm backboxes provide optimal cable management space for 2.5mm² conductors.
-
Can this switch handle immersion heater loads?
Yes, 20A rating suitable for typical 3-4kW immersion heaters. Double pole switching provides complete electrical isolation when required.
-
What torque setting for terminal connections?
1.8Nm torque specification for screw terminals. Each terminal accepts up to 3x 2.5mm² conductors with brass construction ensuring reliable connection.
-
Does LED indicator show switch position?
Red LED illuminates when switch is in ON position, providing clear visual confirmation of circuit status for appliance control applications.
