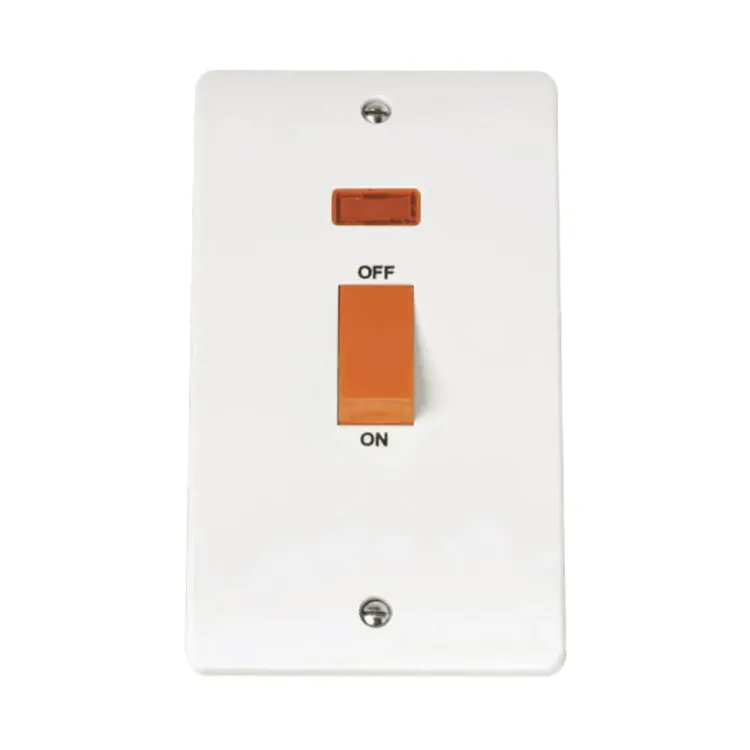

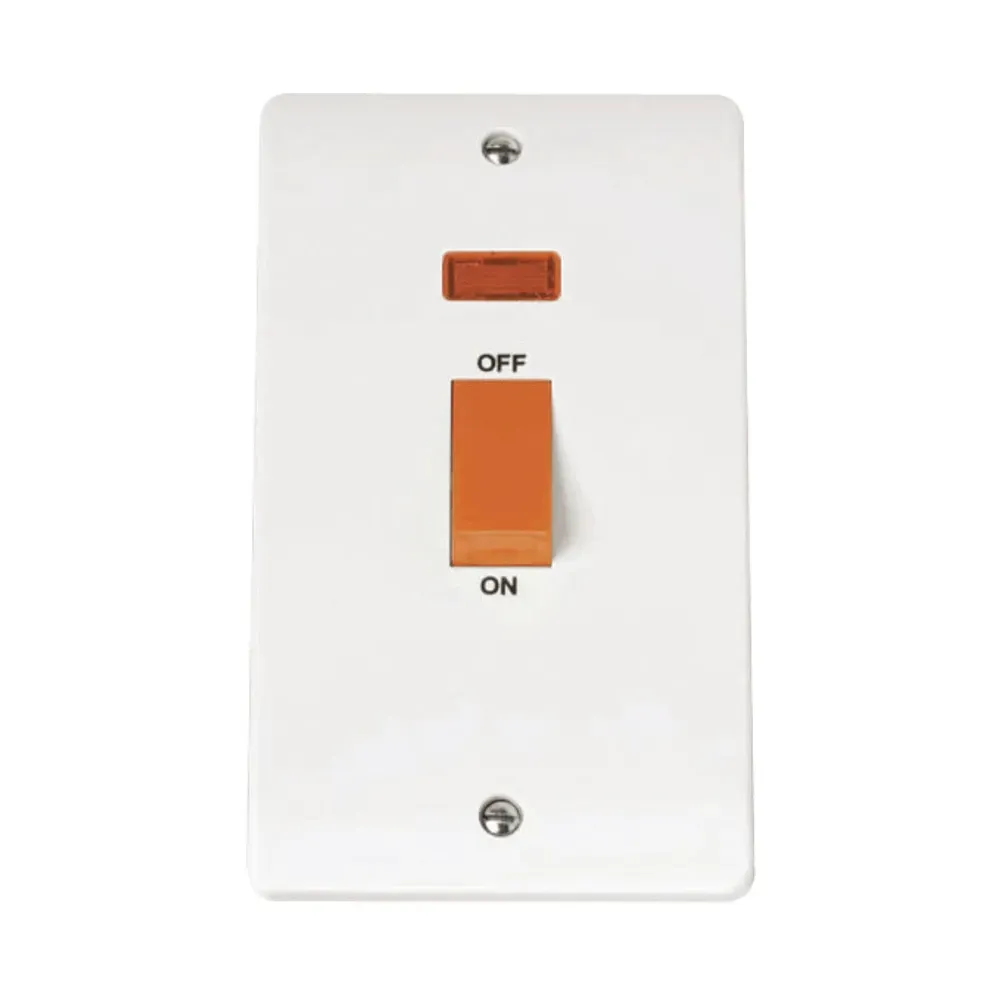

Click CMA203 45A cooker switch 2-gang vertical white

Photo is representative

Click CMA203 45A 2-Gang DP Cooker Switch Orange Neon - White

45A double pole cooker switch in 2-gang vertical configuration with orange neon indicator for professional kitchen installations. Features screw terminals accepting 16mm² conductors with 2.5Nm torque rating for secure high-current connections. Requires minimum 35mm backbox depth with 120.6mm fixing centres. BS EN 60669-1 compliant with UKCA marking. Twin earth terminals fitted as standard. Antimicrobial coating provides 99.9% kill rate against bacteria and viruses. Backed by Click’s 25-year warranty for professional confidence. Polar white urea formaldehyde construction with rounded profile suitable for domestic and commercial cooker circuits up to 45A resistive loads at 250V AC.

Product Information

Stock Code CMA203
MPN
GTIN
Stock status: Out of stock
Price: £11.81
incl. VAT, 20% priced individually

Product Features

Current Rating 45A Resistive Load at 250V AC 50Hz
Configuration 2-Gang Vertical Double Pole (DP)
Switching Type Double Pole with ON/OFF Marking
Neon Indicator Orange Neon with Polycarbonate Lens
Terminal Type Screw Terminals Ø6mm with 2.5Nm Torque
Terminal Capacity 1 x 16mm² Solid Conductor per Terminal
Backbox Requirements Minimum 35mm Depth, 120.6mm Fixing Centres
Plate Dimensions 86(W) x 146(H) x 9.5(D)mm
Compliance Standard BS EN 60669-1 with UKCA Marking
IP Rating IP20 for Indoor Use
Operating Temperature -5°C to +40°C
Construction Urea Formaldehyde with Antimicrobial Coating
Twin Earth Terminals Pre-fitted for Faster Installation
Warranty Period 25 Years Professional Warranty

Installation Requirements

Terminal Connections

Ø6mm screw terminals with 2.5Nm torque specification. Twin earth terminals pre-fitted. Accepts 1 x 16mm² solid conductor per terminal for secure high-current connections.

Mounting Specifications

86x146x9.5mm plate dimensions with 120.6mm vertical fixing centres. Requires minimum 35mm backbox depth for flush mounting in standard wall construction.

Circuit Protection

Double pole switching isolates live and neutral. Suitable for 45A MCB protection on dedicated cooker circuits. Operating temperature -5°C to +40°C.

Professional Applications

Domestic Cooker Control

Primary application for electric cooker control in kitchens. 45A rating suitable for standard domestic electric cookers and ranges up to 10kW load.

Commercial Kitchen Equipment

Suitable for commercial electric cooking equipment control. Orange neon provides clear operational status in busy professional kitchen environments.

Fixed Appliance Isolation

Double pole isolation for fixed electrical appliances over 20A rating. Meets BS 7671 requirements for accessible isolator switching.

Technical Standards

BS EN 60669-1

Complies with European standard for switches for household use. Covers electrical, mechanical, and thermal requirements for switches up to 63A rating.

UKCA Marking

UK Conformity Assessed marking confirms compliance with UK product safety regulations. Valid for Great Britain market post-Brexit requirements.

Antimicrobial Certification

Tested antimicrobial coating achieves 99.9% kill rate against bacteria and viruses. Particularly relevant for kitchen and food preparation area installations.

Frequently Asked Questions

  • What backbox depth required for CMA203 installation?

    Requires minimum 35mm backbox depth with 120.6mm vertical fixing centres. Standard 47mm backbox provides optimal cable management space for 16mm² conductors.

  • What cable size does CMA203 accept?

    Screw terminals accept 1 x 16mm² solid conductor per terminal with 2.5Nm torque setting. Suitable for cooker circuits up to 45A load rating.

  • Why choose double pole switching for cooker circuits?

    Double pole switching isolates both live and neutral conductors, providing complete circuit isolation required by BS 7671 for fixed appliances over 20A rating.

  • Does CMA203 meet current building regulations?

    Yes, BS EN 60669-1 compliant with UKCA marking. Suitable for domestic and commercial installations under BS 7671 18th Edition wiring regulations.

  • What does the orange neon indicate?

    Orange neon illuminates when switch is in ON position, providing visual confirmation of live circuit status. Essential safety feature for high-current appliance control.
